Directional Coupler

  • 7-9GHz_10dB Directional Coupler

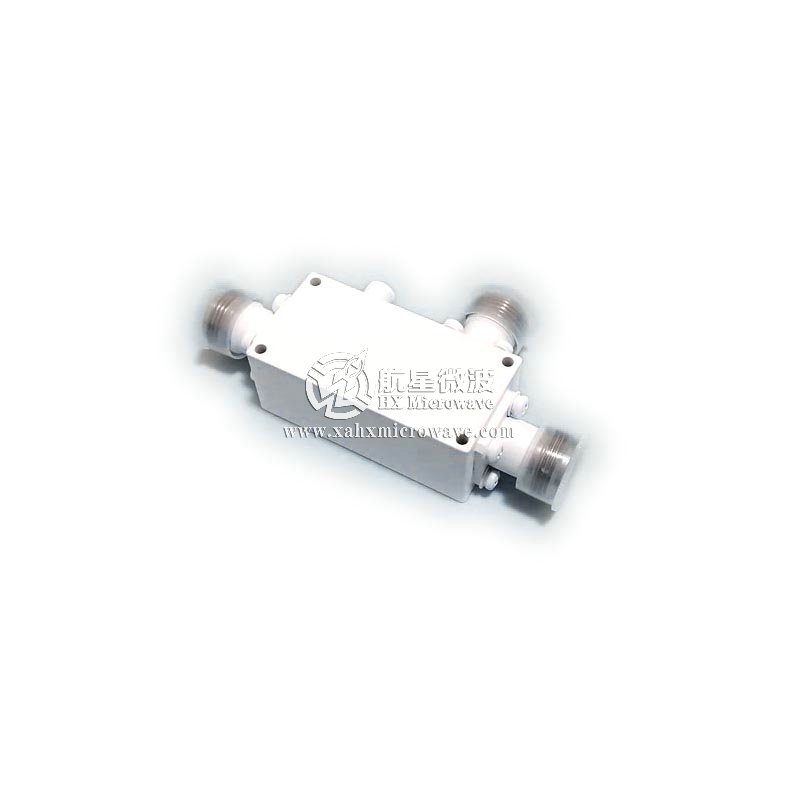

7-9GHz_10dB Directional Coupler

7-9GHz_10dB Directional Coupler

  • P/N:型号: HXOH-OA31-10DB
  • Frequency Range:7-9GHz
  • Coupling Factor:10dB±0.7dB
  • Connectors:N-Female
  • Product description:
  • PDF technical index download

Technical Data Sheet
Frequency Range 7.0 ~ 9.0GHz
Coupling Factor 10dB±0.7dB
Coupling Sensitivity ≤±0.7dB
Insertion Loss ≤0.6dB (Excluding Coupling Loss 0.46dB)
VSWR ≤1.5:1
Directivity ≥15dB
Impedance 50 Ohms
Power Handling Incident: 50W Max.  ;  Reflected: 50W Max.
Connectors N-Female
Surface Finish Painted Black

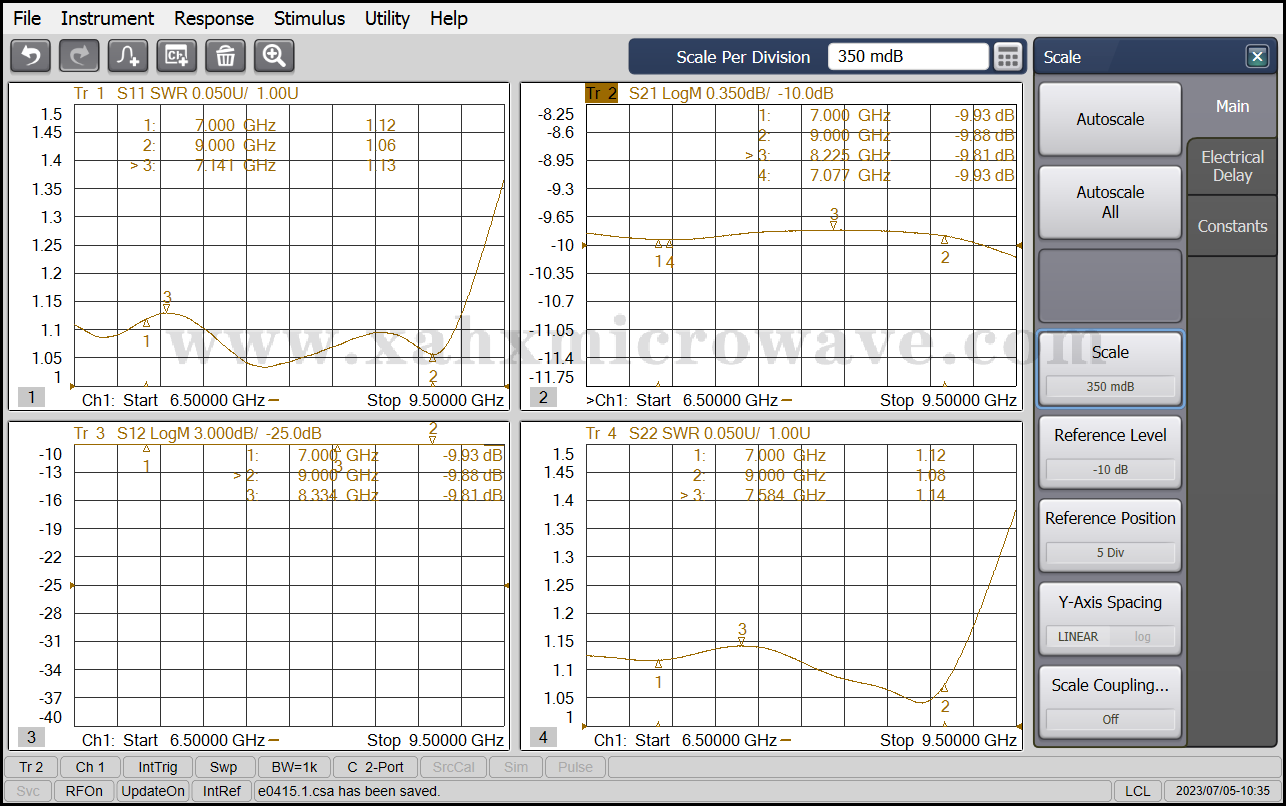

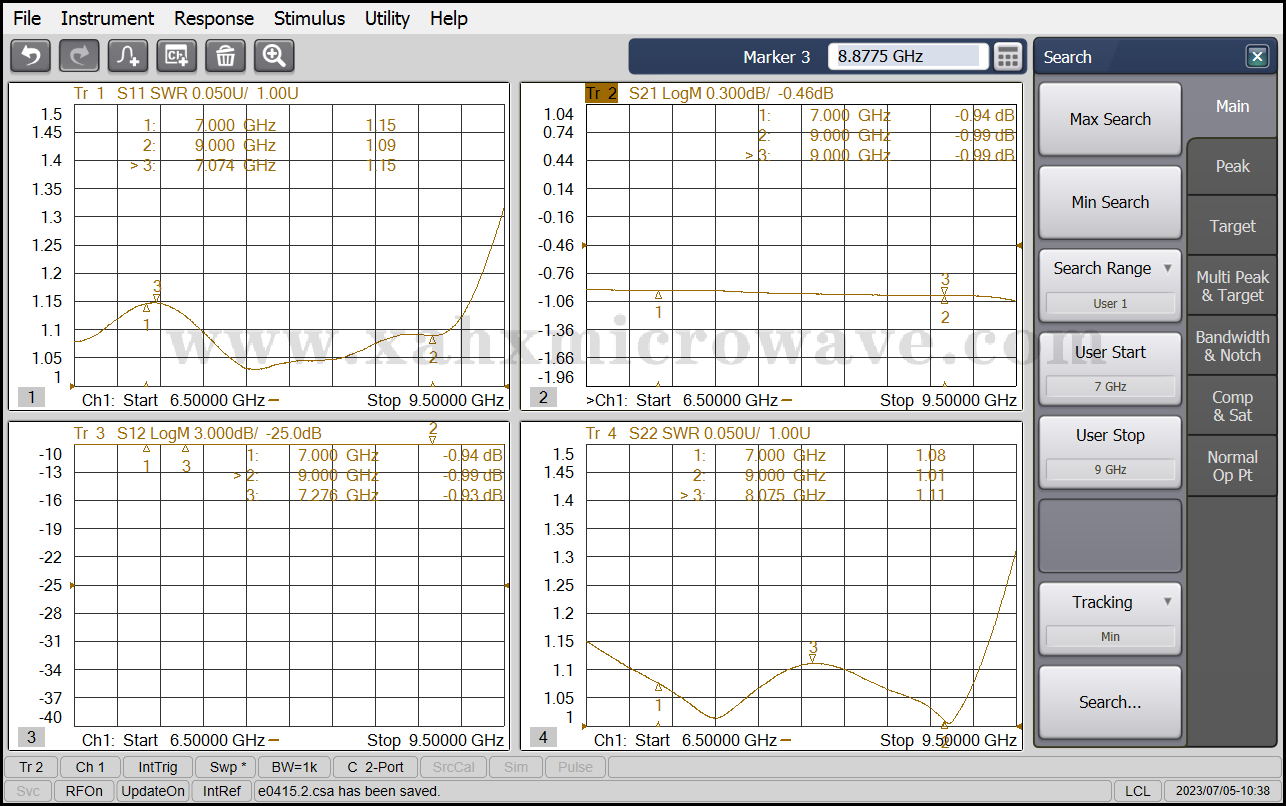

Test Curve
