Directional Coupler

  • 2-2.5GHz_10dB Directional Coupler

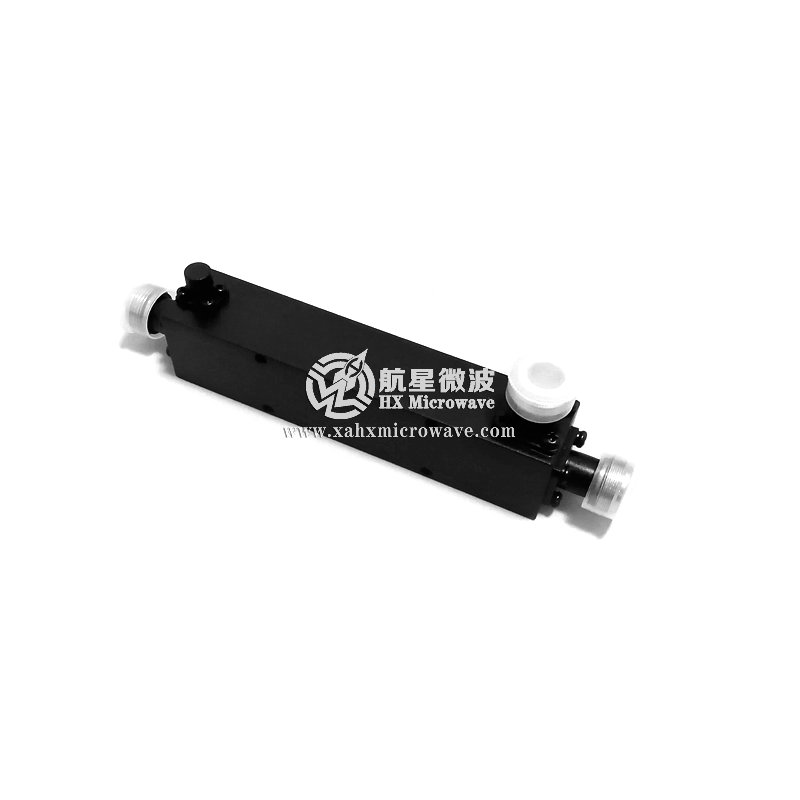

2-2.5GHz_10dB Directional Coupler

2-2.5GHz_10dB Directional Coupler

  • P/N:HXOH-OA30-10DB
  • Frequency Range:2-2.5GHz
  • Coupling Factor:10dB±1.0dB
  • Connectors:N-Female
  • Product description:
  • PDF technical index download

Technical Data Sheet
Frequency Range 2.0 ~ 2.5GHz
Coupling Factor 10dB±1.0dB
Coupling Sensitivity ≤±1.0dB
Insertion Loss ≤0.6dB (Excluding Coupling Loss 0.46dB)
VSWR ≤1.25:1
Directivity ≥18dB
Impedance 50 Ohms
Power Handling Incident: 50W Max.  ;  Reflected: 50W Max.
Connectors N-Female
Surface Finish Painted Black
Test Curve
