Cavity Band Rejection Filter

  • 1735-1785MHz Cavity Band Rejection Filter

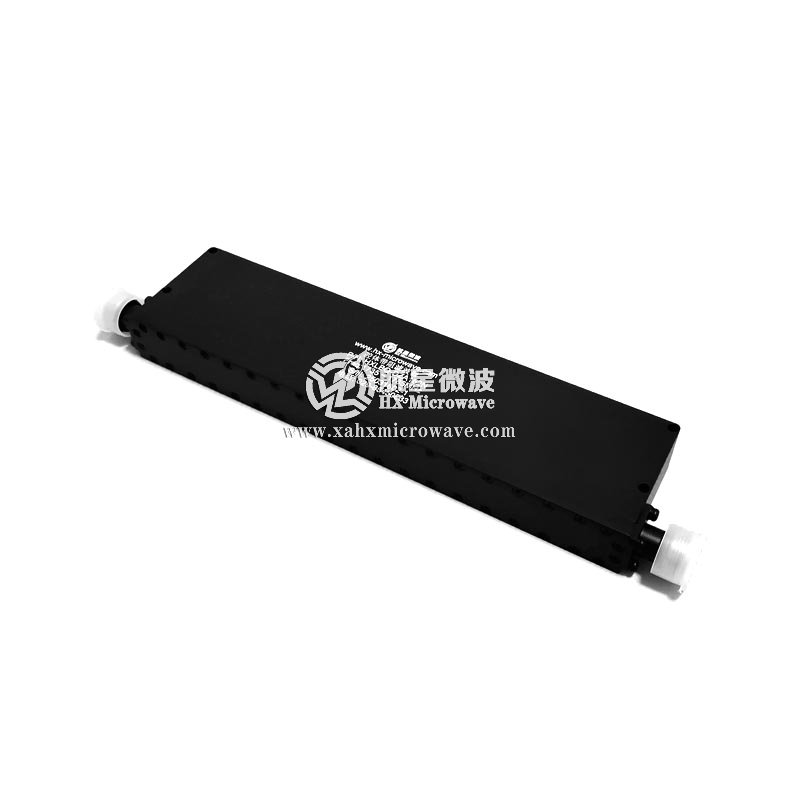

1735-1785MHz Cavity Band Rejection Filter

1735-1785MHz Cavity Band Rejection Filter

  • P/N:HXLBQ-DZA162N
  • Stop Band Frequency:1735-1785MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:N-Female
  • Product description:
  • PDF technical index download

Cavity Band Rejection Filter
Technical Data Sheet

S/N

Item

Parameters

1

Stop Band Frequency

1735 ~ 1785MHz

2

Stop Band Attenuation

≥50dB

3

Pass Band Frequency

DC ~ 1715MHz , 1805 ~ 5000MHz

4

Pass Band Insertion Loss

≤2.0dB

5

Pass Band VSWR

≤1.5:1

6

Impedance

50 Ohms

7

Power Handling

30W Max.

8

Connectors

N-Female

9

Surface Finish

Painted Black

10

Temperature Range

-20℃ ~ +60℃
