Directional Coupler

  • 2.3-5.0GHz 30dB Directional Coupler

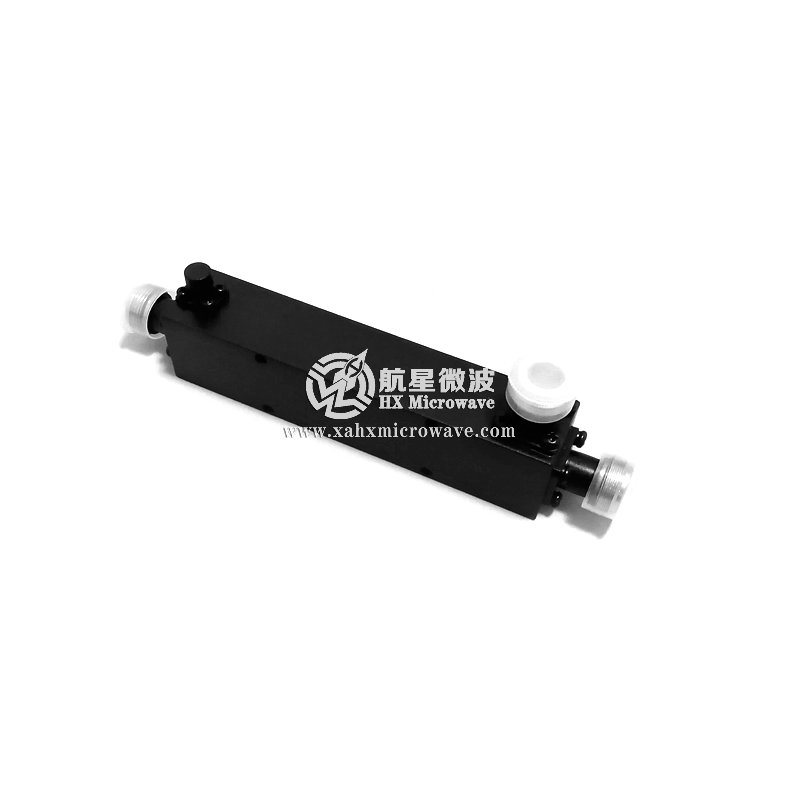

2.3-5.0GHz 30dB Directional Coupler

2.3-5.0GHz 30dB Directional Coupler

  • P/N:HXOH-OA03
  • frequency:2.3-5.0GHz
  • Coupling Factor:
  • Product description: ♦isolation of high,high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency
  • PDF technical index download
Technical Data Sheet
Frequency Range 2.3 ~ 5GHz
Coupling Factor 30dB±1.0dB
Coupling Sensitivity ≤±0.8dB
Insertion Loss ≤0.4dB (Excluding Coupling Loss 0.01dB)
VSWR ≤1.3:1
Directivity ≥18dB
Impedance 50 Ohms
Power Handling Incident: 50W Max.  Peak: 200W Max.
Reflected: 5W Max.
Connectors N-Female
Test Curve
