Directional Coupler

  • 1.0-12GHz Coupler 16DB Directional Coupler

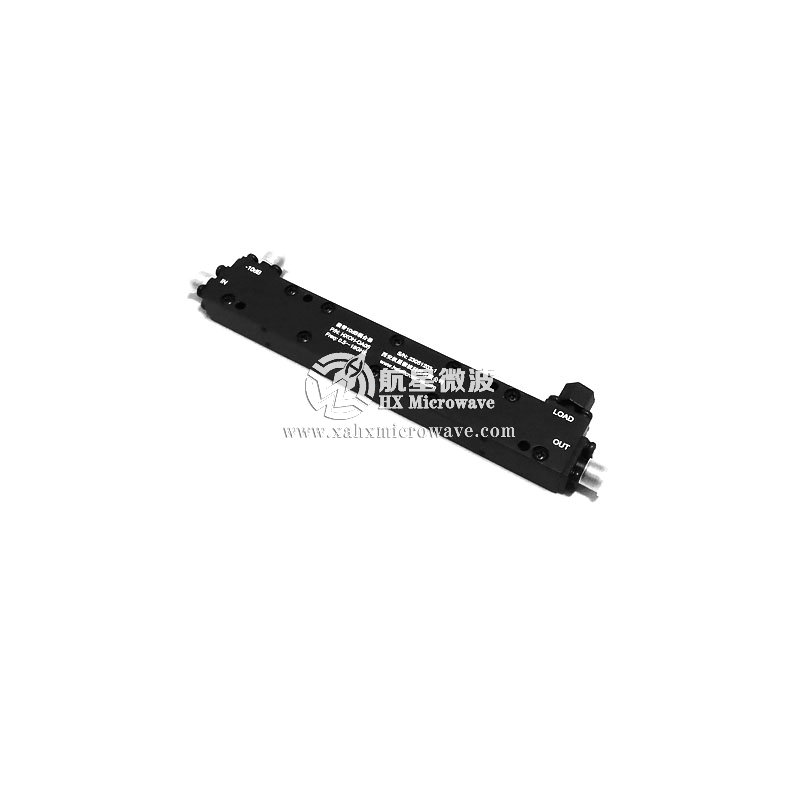

1.0-12GHz Coupler 16DB Directional Coupler

1.0-12GHz Coupler 16DB Directional Coupler

  • P/N:HXOH-OA02
  • Loss:≤0.86dB
  • Directivity:≥15dB
  • Connectors:SMA-Female
  • Product description: ♦isolation of high,high cost performance ♦Small insertion loss♦Size small♦Wide frequency ♦Size can be customized♦ Are available upon request all kinds of frequency(0-70 GHZ Covering frequency range)
  • PDF technical index download
Technical Data Sheet
Coupling 16±1.0dB
Frequency Range 112GHz
Insertion Loss ≤0.86dB (Excluding coupling losses 0.14dB)
Frequency Sensitivity ≤±1.0dB
VSWR ≤1.45:1
Directivity ≥15dB
Power Handling ≤30W
Impedance 50 Ohms
Surface Finish Black Paint
Connectors SMA-Female
Test Curve
