Microstrip 3dB Hybrid Coupler

  • 0.7-8GHz 3dB 180degree Hybrid Coupler

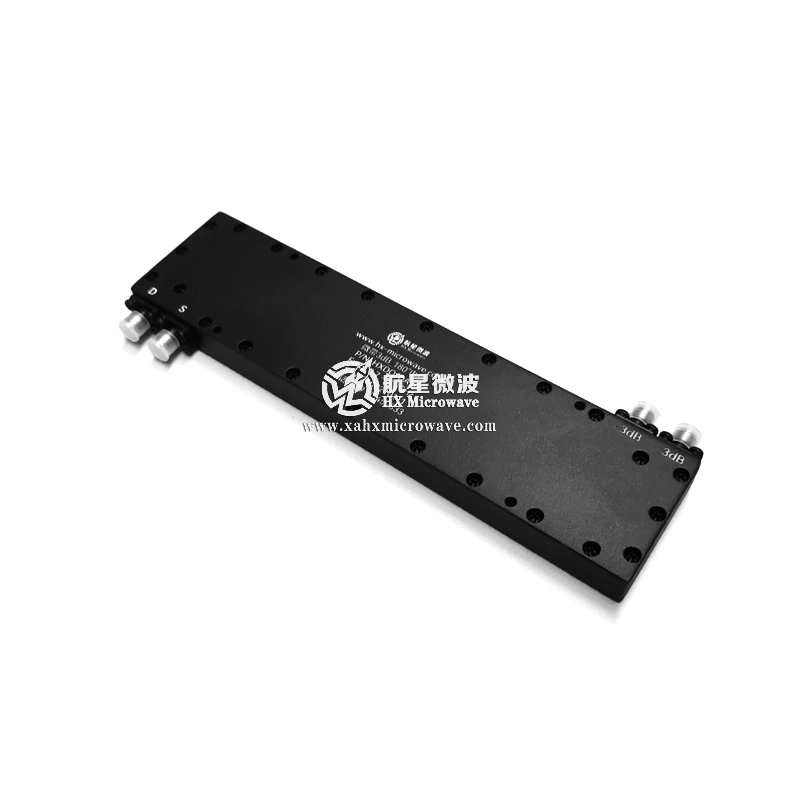

0.7-8GHz 3dB 180degree Hybrid Coupler

0.7-8GHz 3dB 180degree Hybrid Coupler

Technical Data Sheet
● Frequency Range 0.7 ~ 8.0GHz
● Phase Difference 180°
● Nominal Split 3.01dB
● Insertion Loss ≤2.5dB
● VSWR ≤1.6:1
● Amplitude Balance ≤±1.0dB
● Phase Balance ≤±18°
● Isolation ≥15dB
● Impedance 50 Ohms
● Power Handling Average: 50W ; Peak: 1000W
● Connectors SMA-Female
● Surface Finish Painted Black

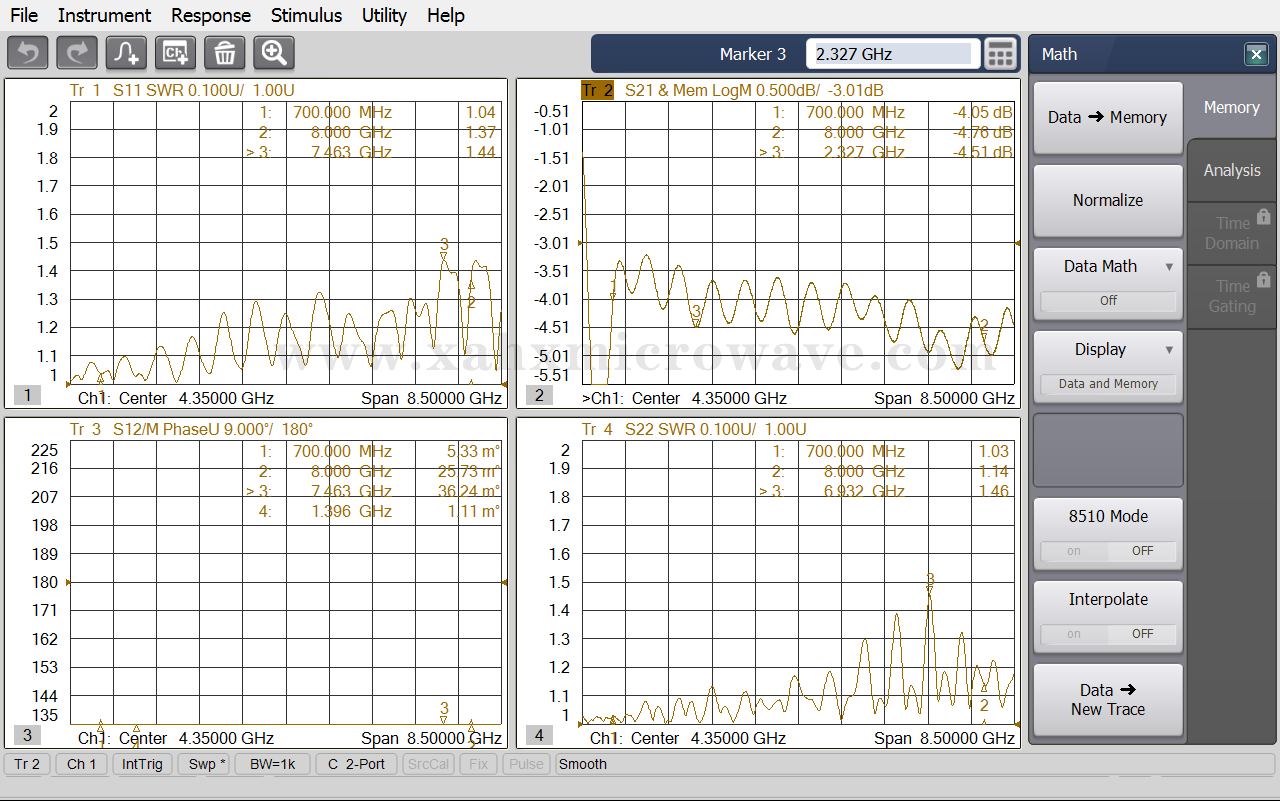

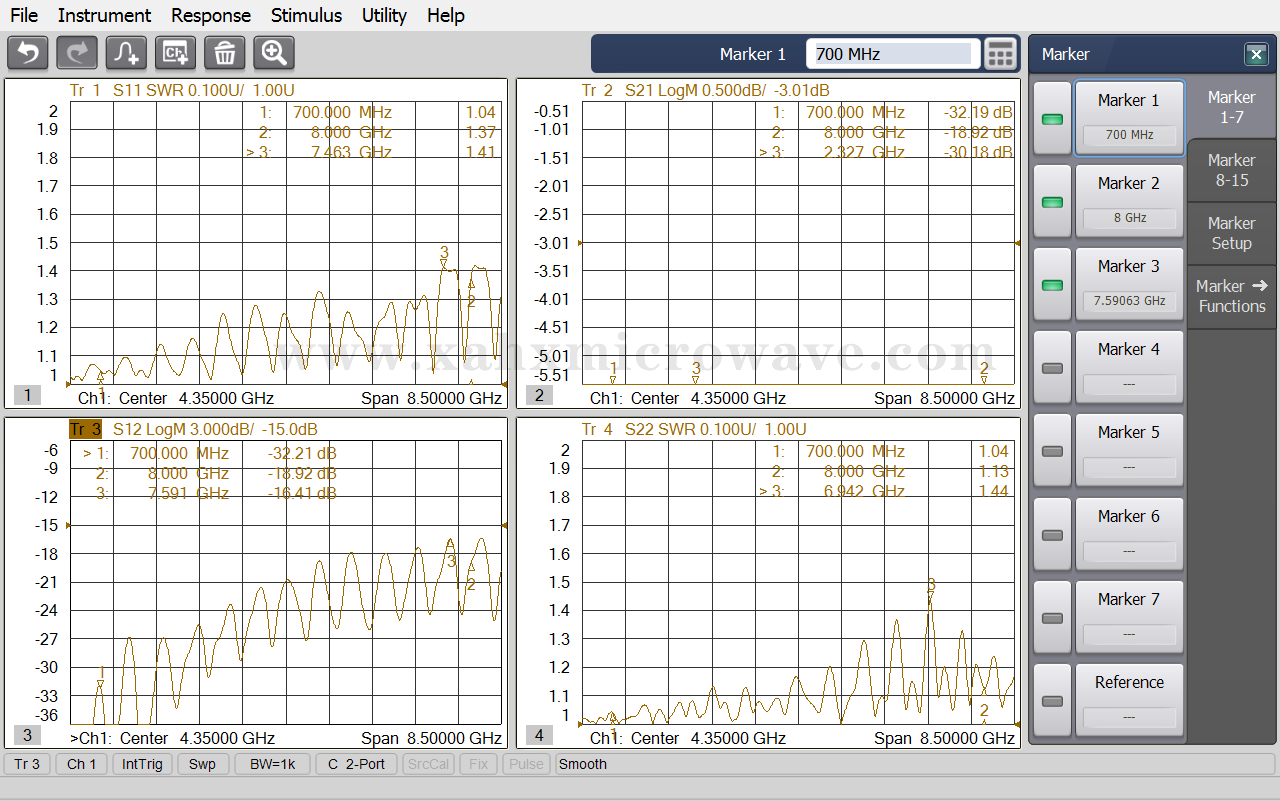

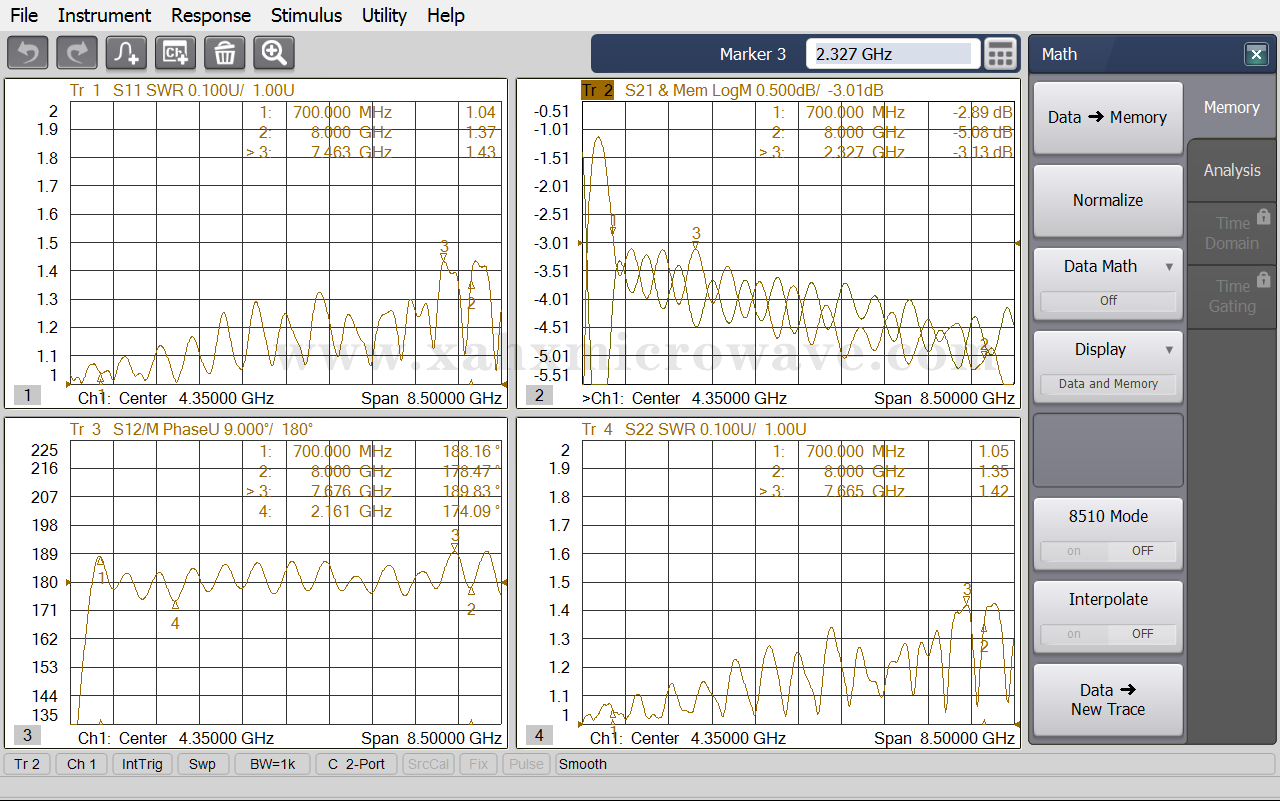

Test Curve
