| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 24.25GHz | |
| ● | Pass Band Frequency | 20 ~ 28.5GHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.35dB | |
| ● | Pass Band VSWR | ≤1.33:1 | |
| ● | Stop Band Attenuation | ≥70dB @ DC ~ 18GHz | ≥60dB @ 30.5 ~ 41.5GHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5W Max. | |
| ● | Connectors | 2.4mm-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

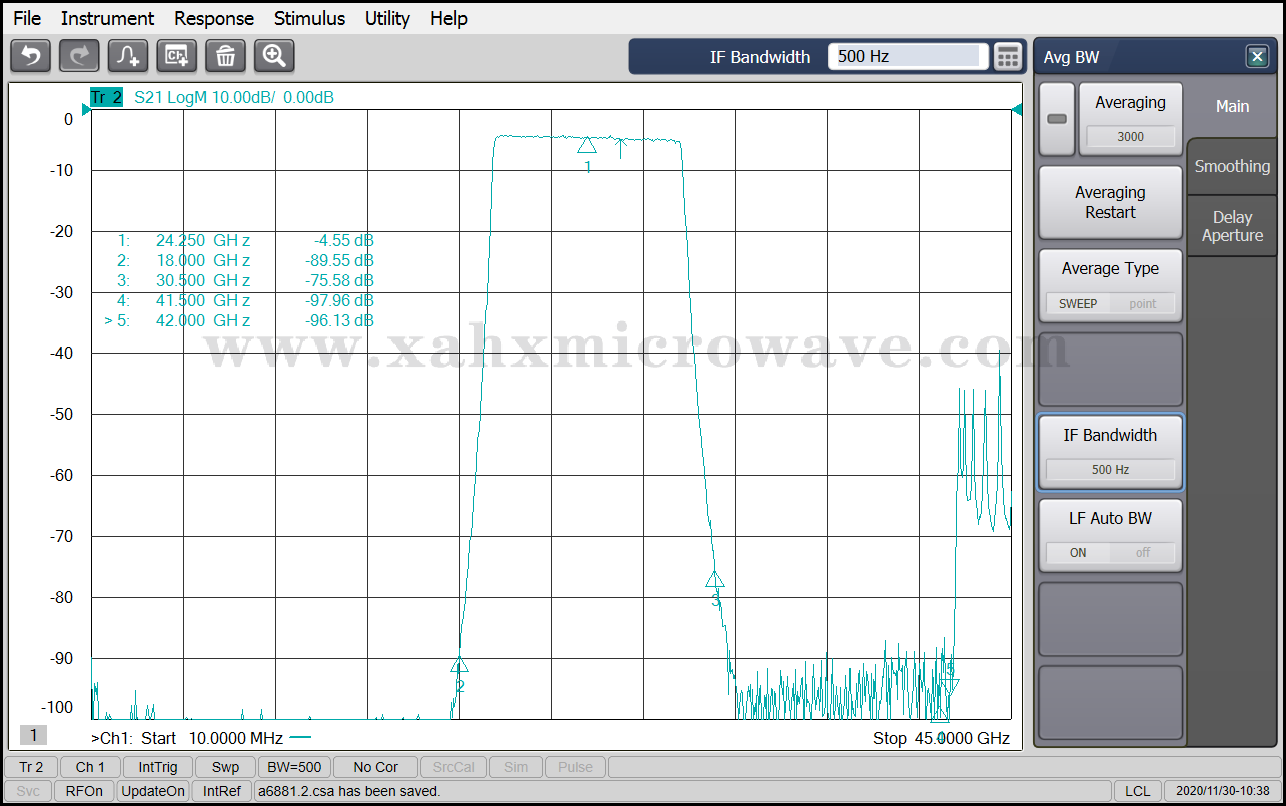

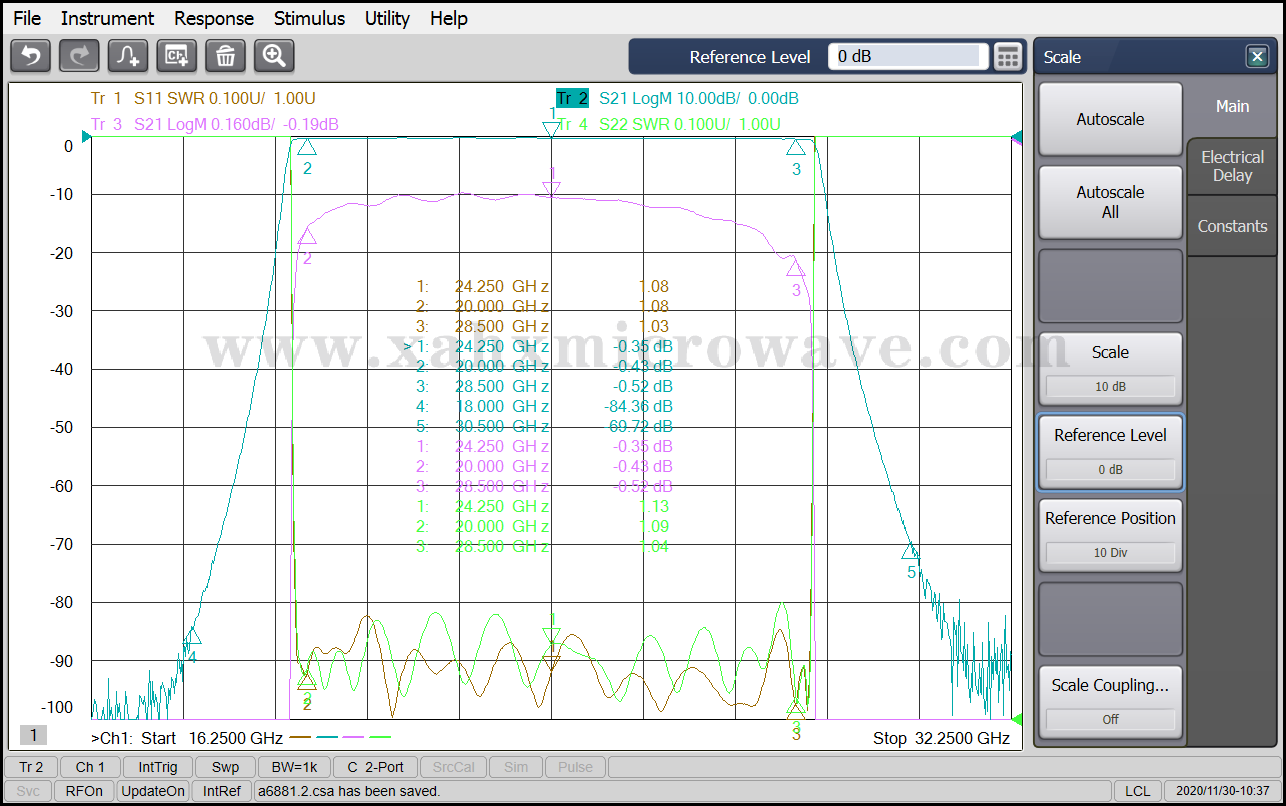

| Test Curve | |||
