LC Band Pass Filter

  • 9.0-11MHz LC Band Pass Filter
9.0-11MHz LC Band Pass Filter

9.0-11MHz LC Band Pass Filter

  • P/N:HXLBQ-DTA341LC
  • Pass Band Frequency:9.0-11MHz
  • Stop Band Attenuation:≥80dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high__Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigi
  • PDF technical index download

LC Band Pass Filter

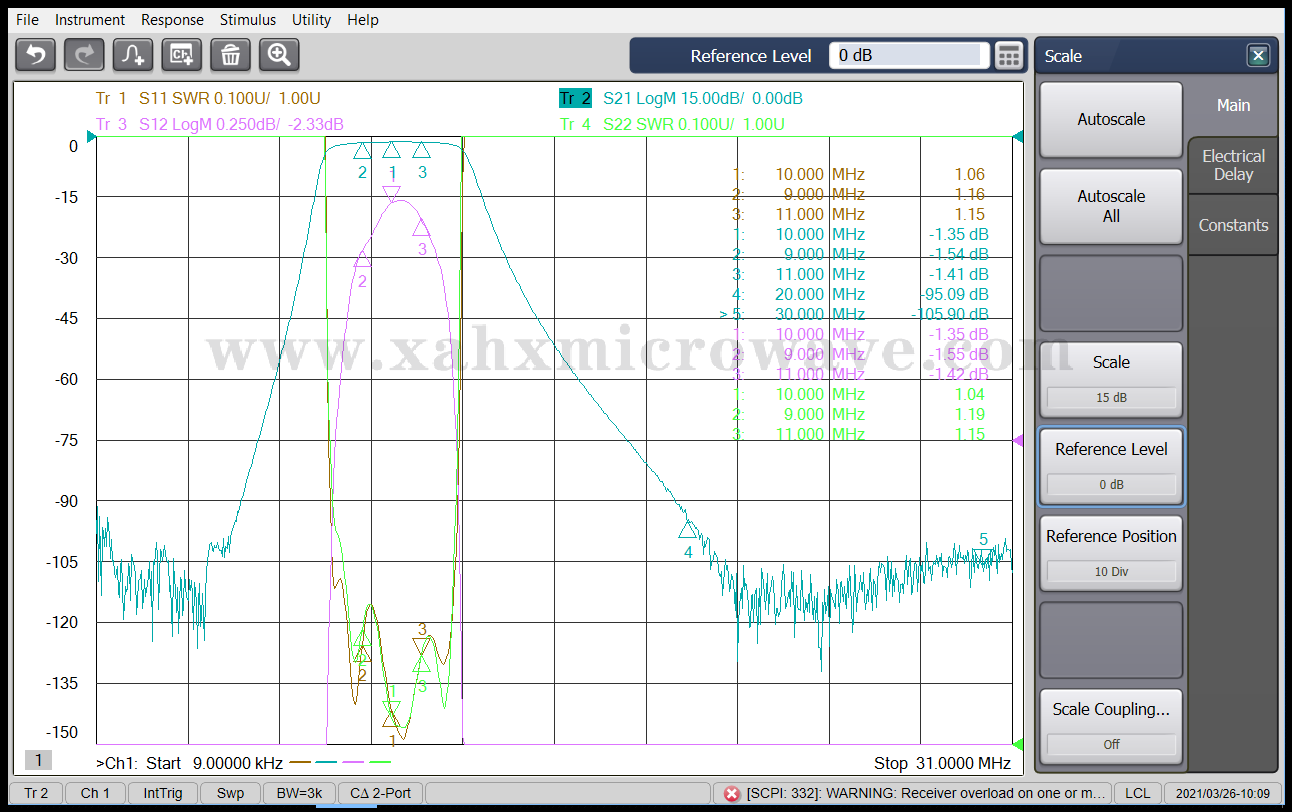

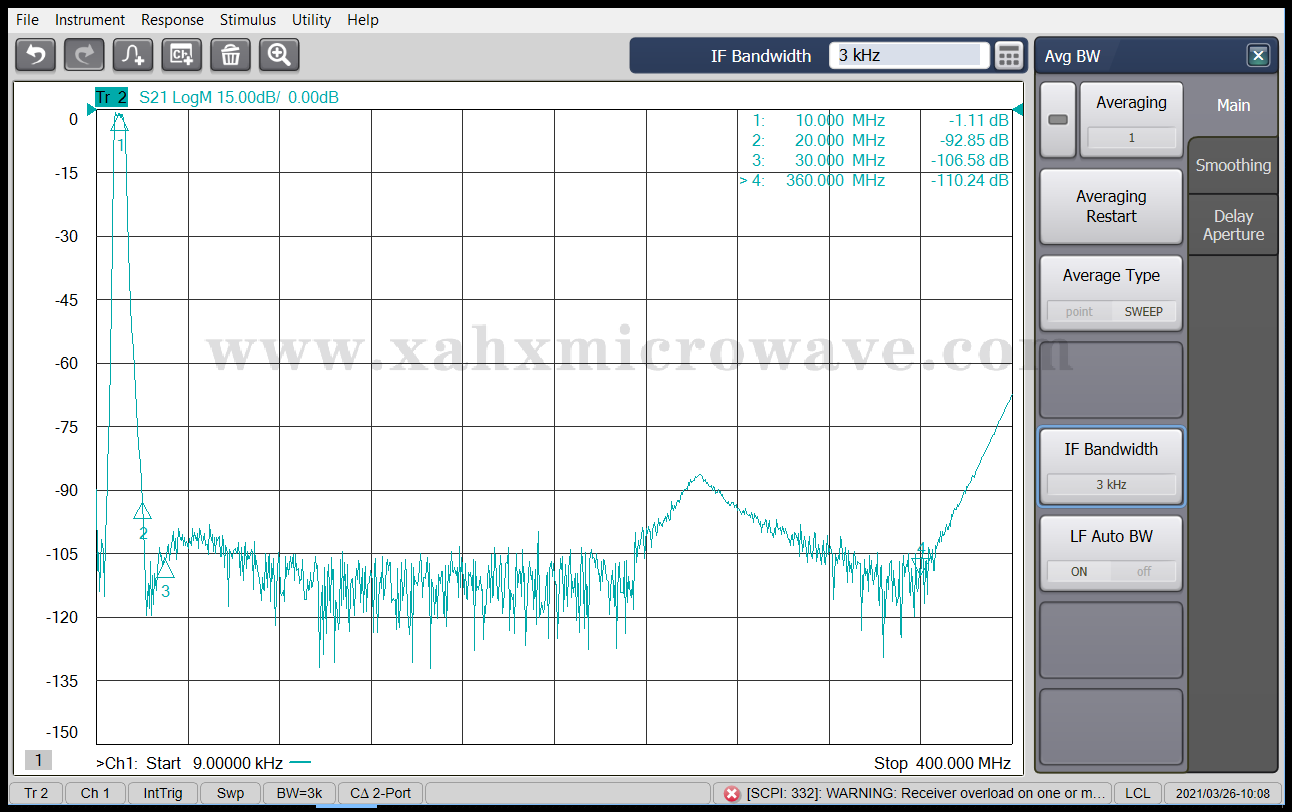

Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

10MHz

2

Pass Band Frequency

9.0 ~ 11MHz

3

Pass Band Insertion Loss

≤2.0dB

4

Pass Band VSWR

≤1.5:1

5

Stop Band Rejection

≥80dB @ 20 ~ 30MHz

6

Impedance

50 Ohms

7

Power Handling

+15dBm Max.

8

Connectors

SMA-Female

9

Surface Finish

Painted Black

10

Temperature Range

-30℃ ~ +70℃
