| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 80MHz | |
| ● | Pass Band Frequency | 78 ~ 82MHz | |
| ● | Insertion Loss @ F0 | ≤5.0dB @ 80MHz | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 70MHz | ≥40dB @ 90 ~ 180MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 1W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Chemical Nickel or Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

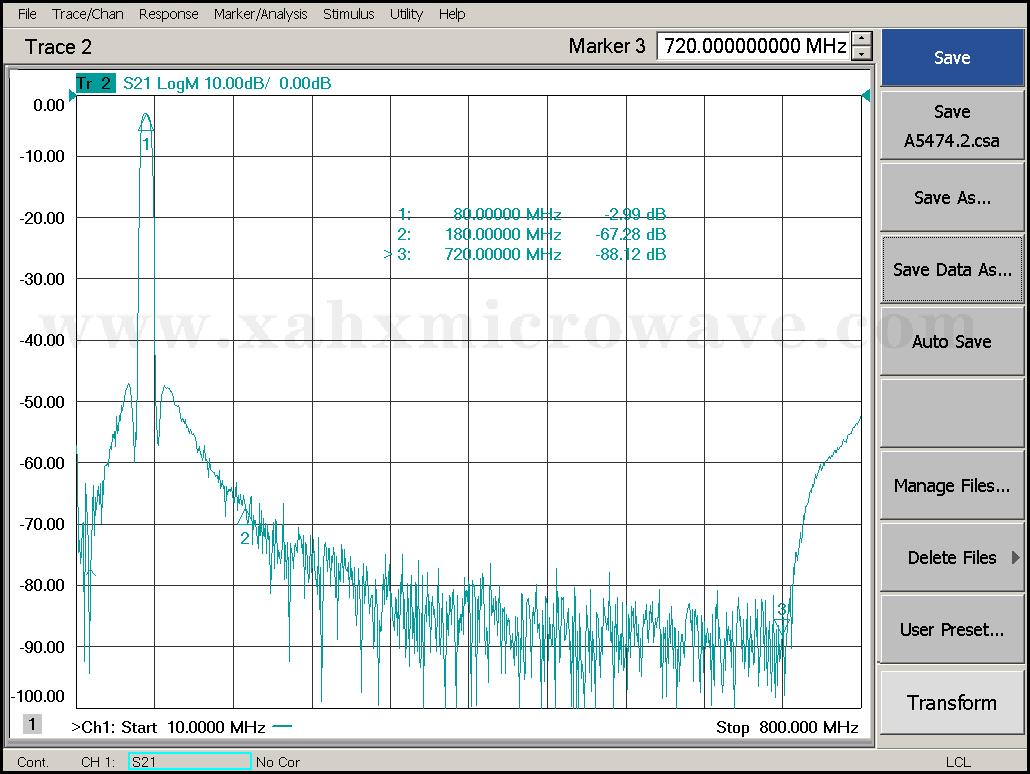

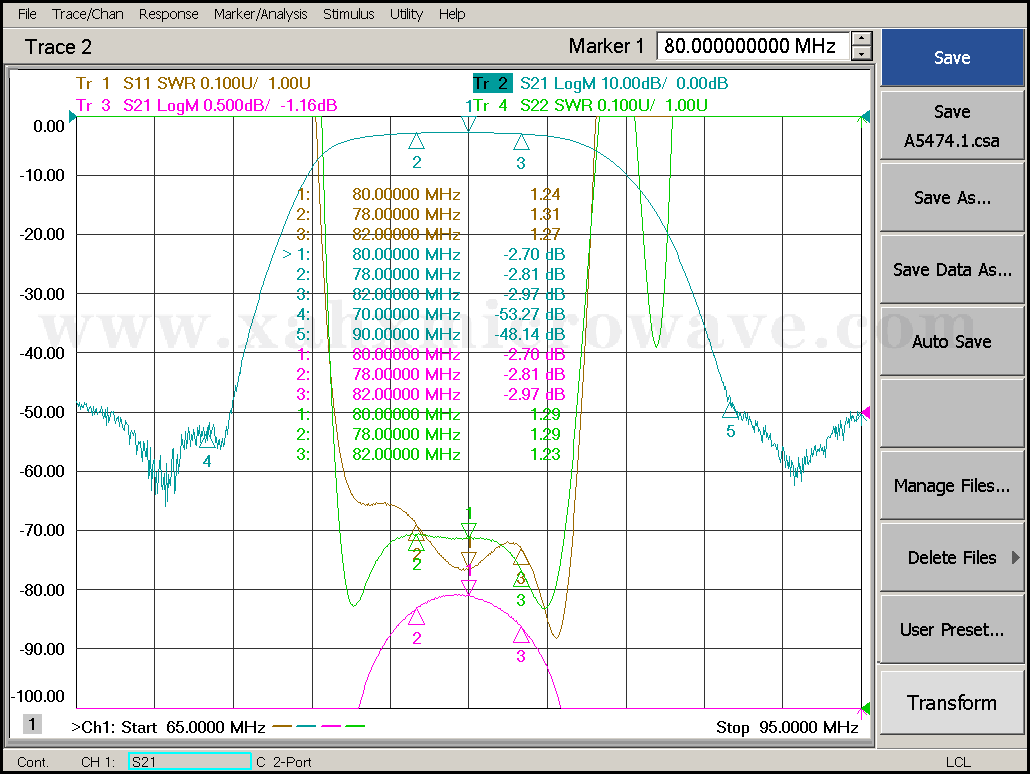

| Test Curve | |||
