| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 70MHz | |
| ● | Pass Band Bandwidth | 20MHz (60 ~ 80MHz) | |
| ● | Pass Band Insertion Loss | ≤2.5dB | |
| ● | Pass Band Ripple | ≤1.0dB | |
| ● | Pass Band VSWR | ≤1.3:1 | |
| ● | Pass Band Group Delay Variation | ≤30ns | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 50MHz | ≥40dB @ 90 ~ 500MHz |
| ≥50dB @ 500 ~ 1300MHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |

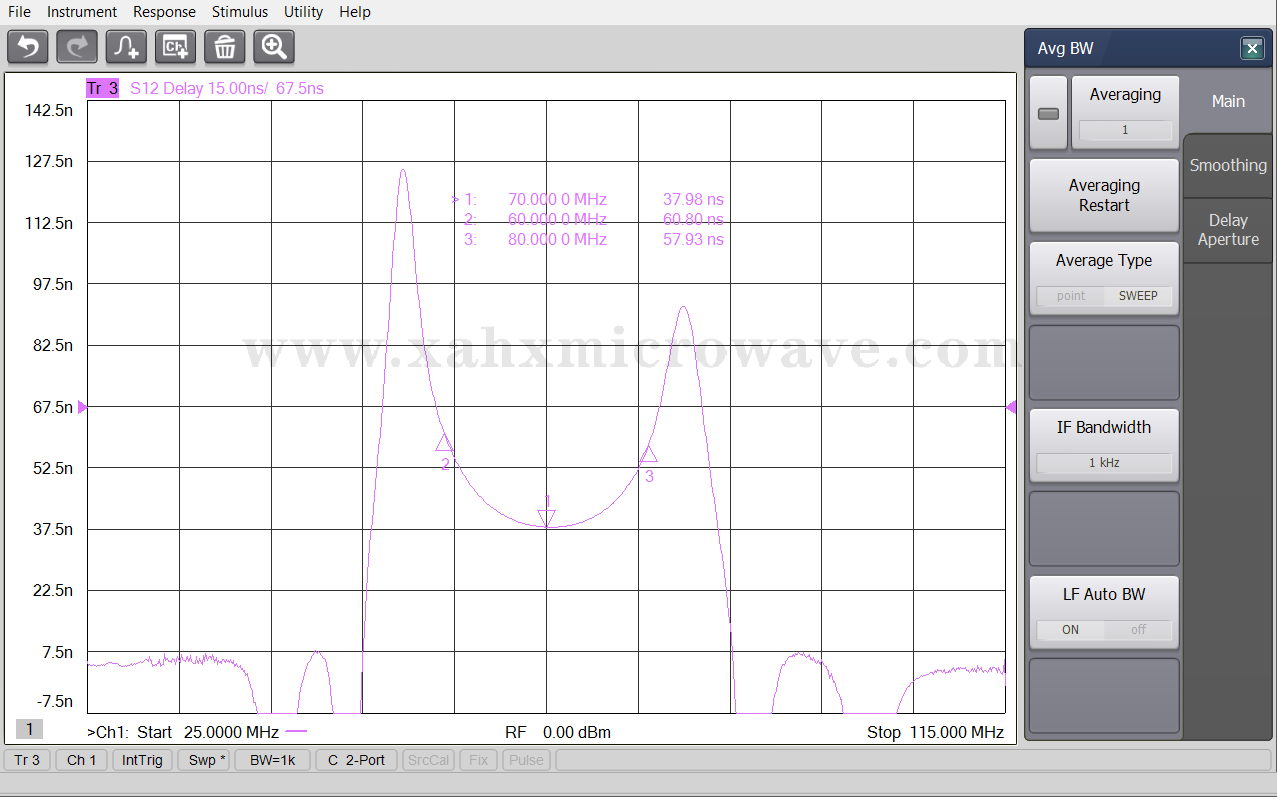

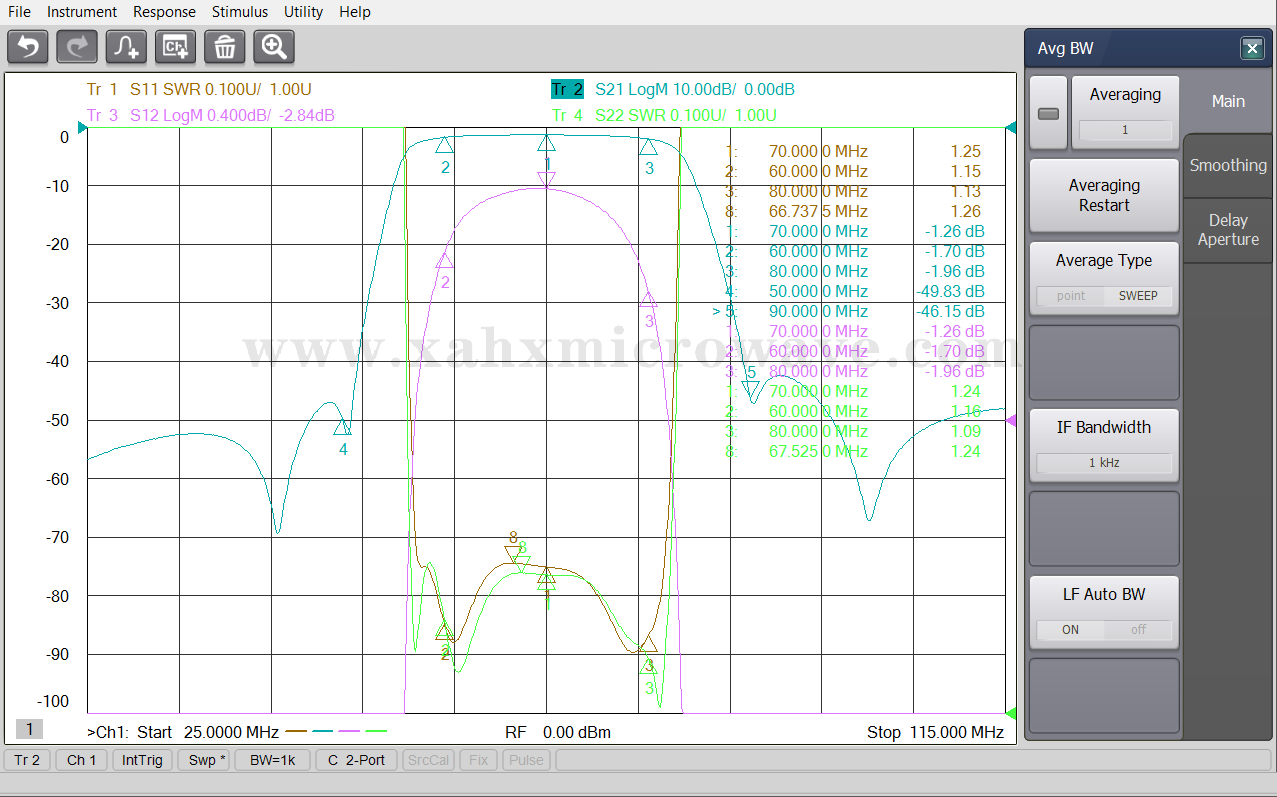

| Test Curve | |||
