| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 200MHz | |
| ● | Pass Band Bandwidth | 20MHz (190 ~ 210MHz) | |
| ● | Pass Band Insertion Loss | ≤4.0dB | |
| ● | Pass Band Ripple | ≤0.8dB | |
| ● | Pass Band VSWR | ≤1.5:1 | |
| ● | Stop Band Attenuation | ≥40dB @ DC ~ 150MHz | ≥40dB @ 250 ~ 6000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

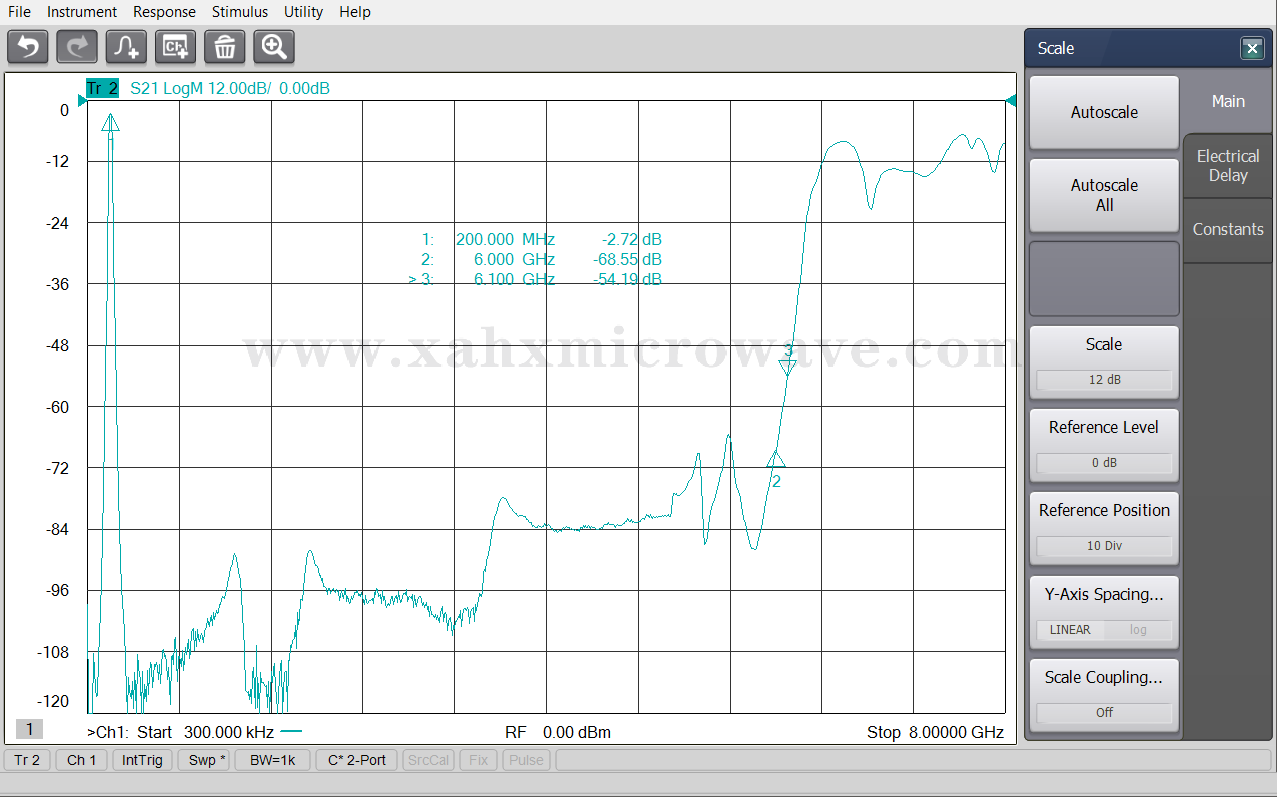

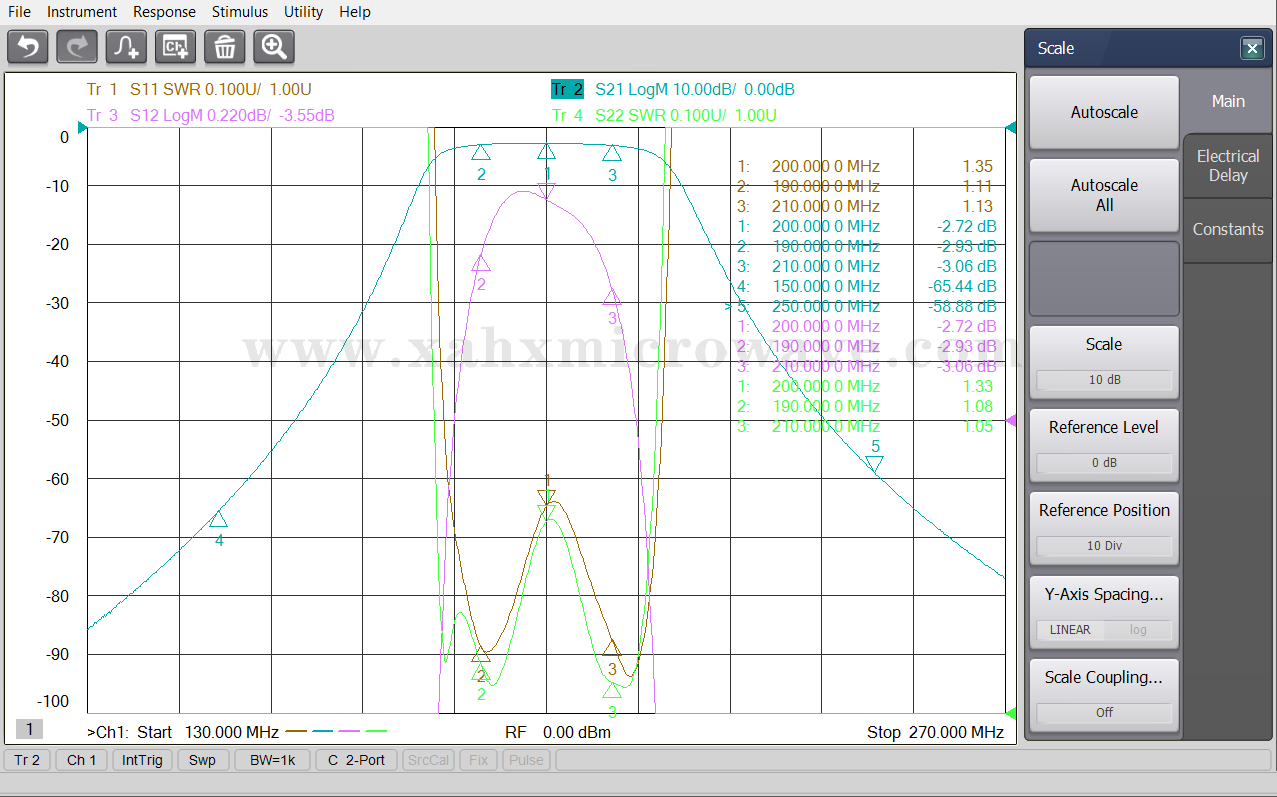

| Test Curve | |||
