| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 20GHz | |
| ● | Pass Band Frequency | 19.9 ~ 20.1GHz | |
| ● | Pass Band Insertion Loss | ≤1.3dB | |
| ● | Pass Band Ripple | ≤0.2dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 19.15GHz | ≥70dB @ 20.7 ~ 20.85GHz |
| ≥70dB @ 19.15 ~ 19.3GHz | ≥80dB @ 20.85 ~ 40GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

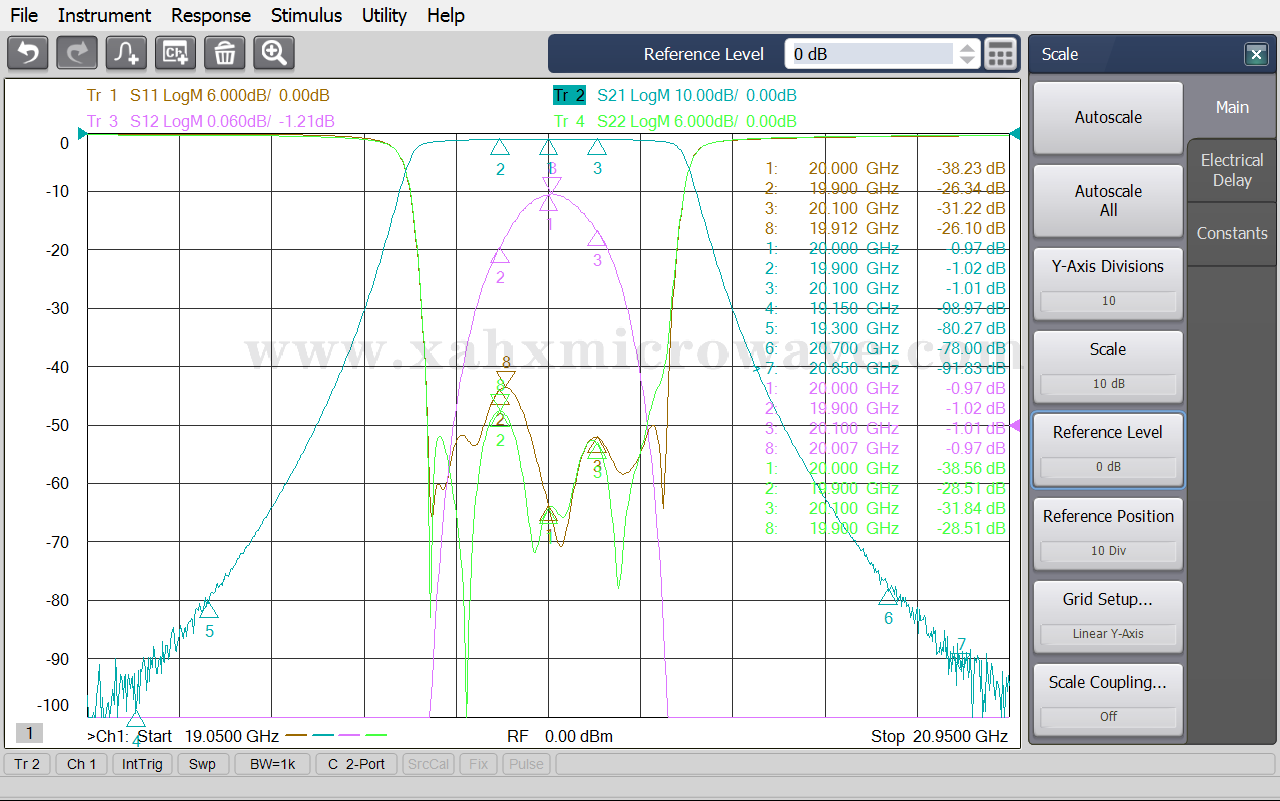

| Test Curve | |||
