Microstrip 3dB Hybrid Coupler

  • 6-26.5GHz 3dB 180degree Hybrid Coupler

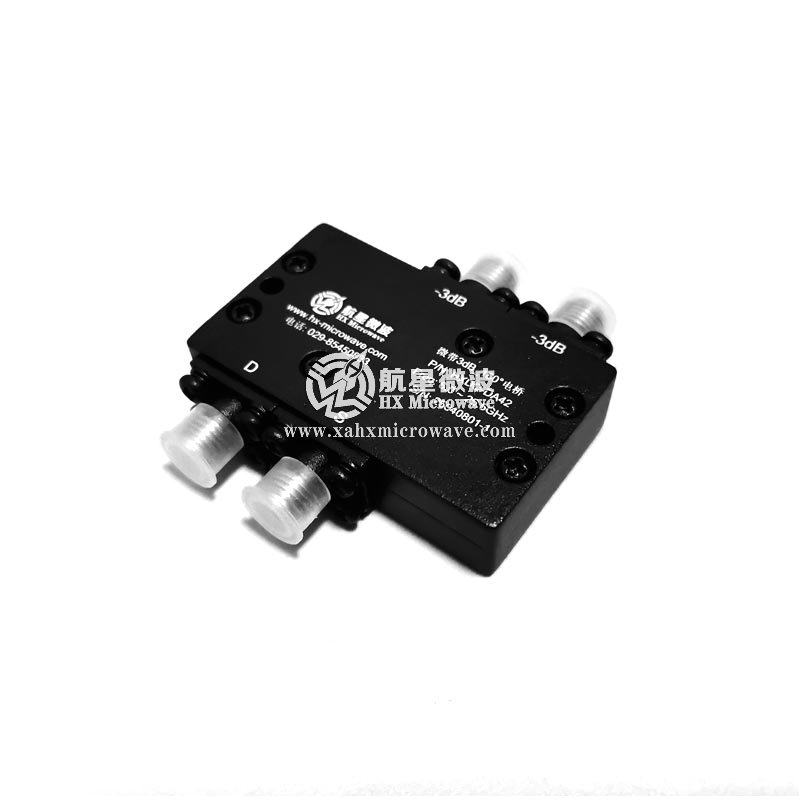

6-26.5GHz 3dB 180degree Hybrid Coupler

6-26.5GHz 3dB 180degree Hybrid Coupler

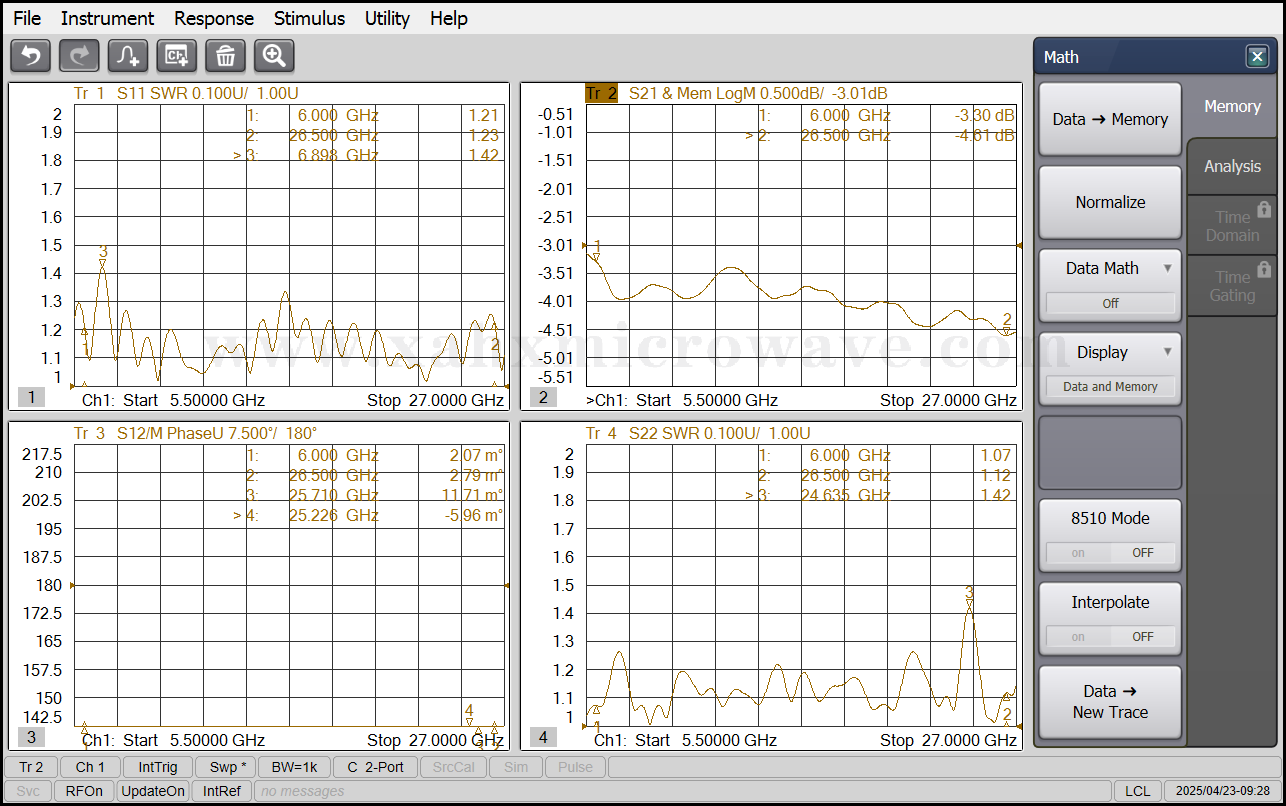

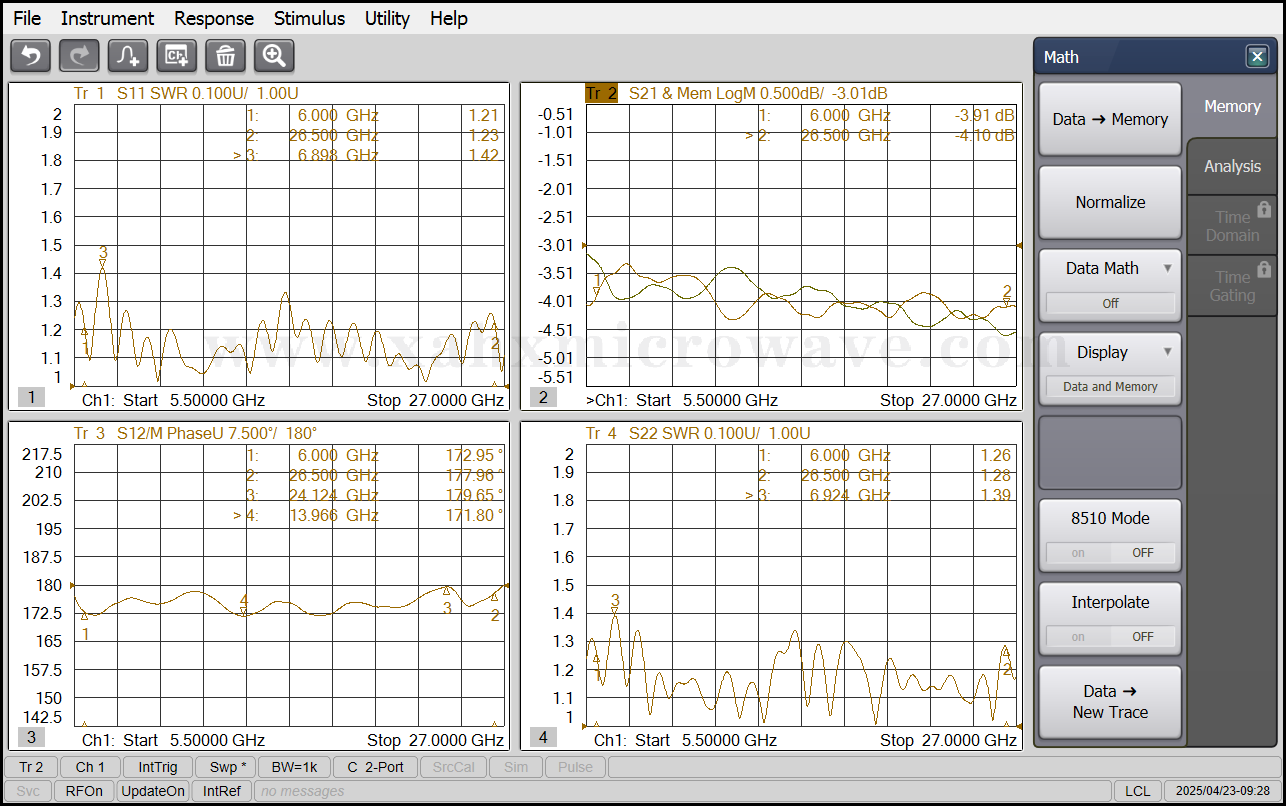

Technical Data Sheet
● Frequency Range 6.0 ~ 26.5GHz
● Phase Difference 180°
● Nominal Split 3.01dB
● Insertion Loss ≤1.8dB
● VSWR ≤1.7:1
● Amplitude Balance ≤±0.8dB
● Phase Balance ≤±15°
● Isolation ≥16dB
● Impedance 50 Ohms
● Power Handling Average: 20W Max. ; Peak: 100W Max.
● Connectors 2.92mm(K)-Female
● Surface Finish Painted Black
