| Technical Data Sheet | ||
| ● | Frequency Range | 100 ~ 200MHz |
| ● | Phase Difference | 90° |
| ● | Nominal Split | 3.01dB |
| ● | Insertion Loss | ≤0.5dB |
| ● | VSWR | ≤1.2:1 |
| ● | Amplitude Balance | ≤±0.5dB |
| ● | Phase Balance | ≤±3.0° |
| ● | Isolation | ≥20dB |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | Average: 100W Max. ; Peak: 1000W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

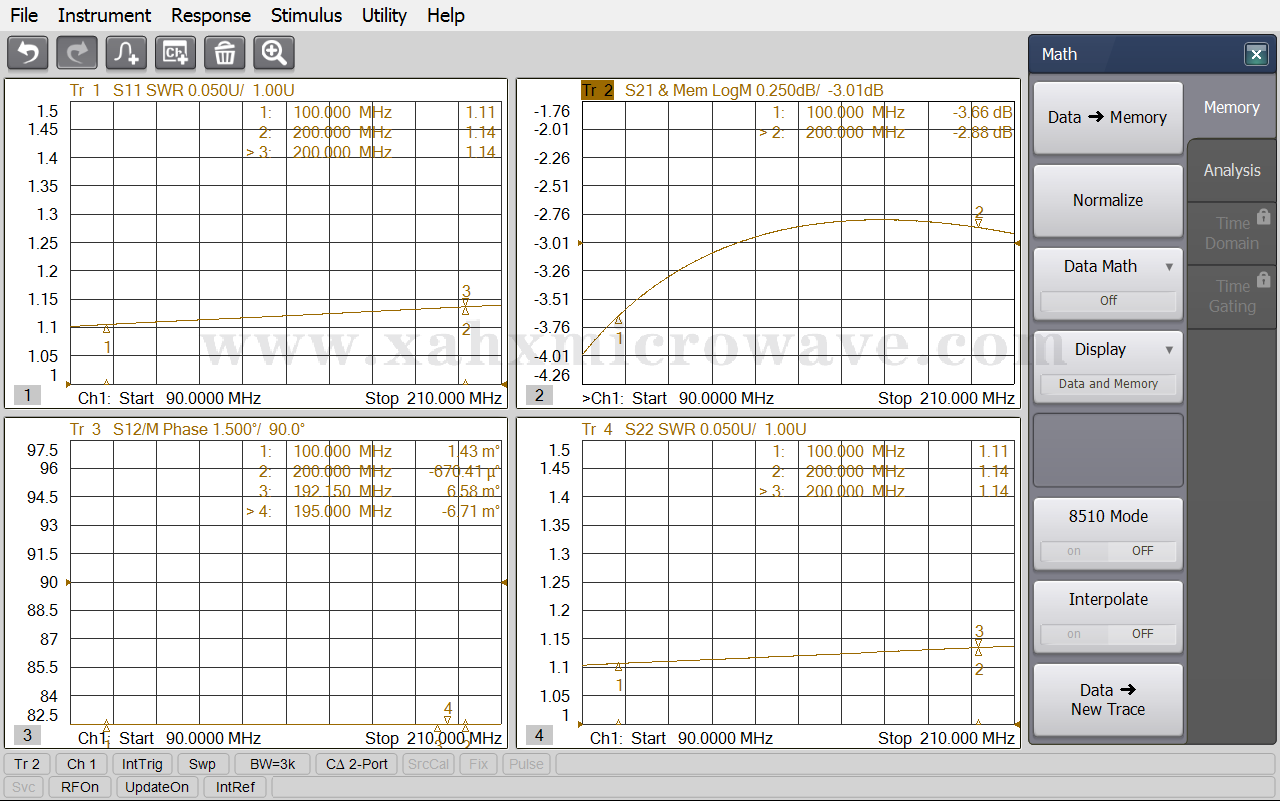

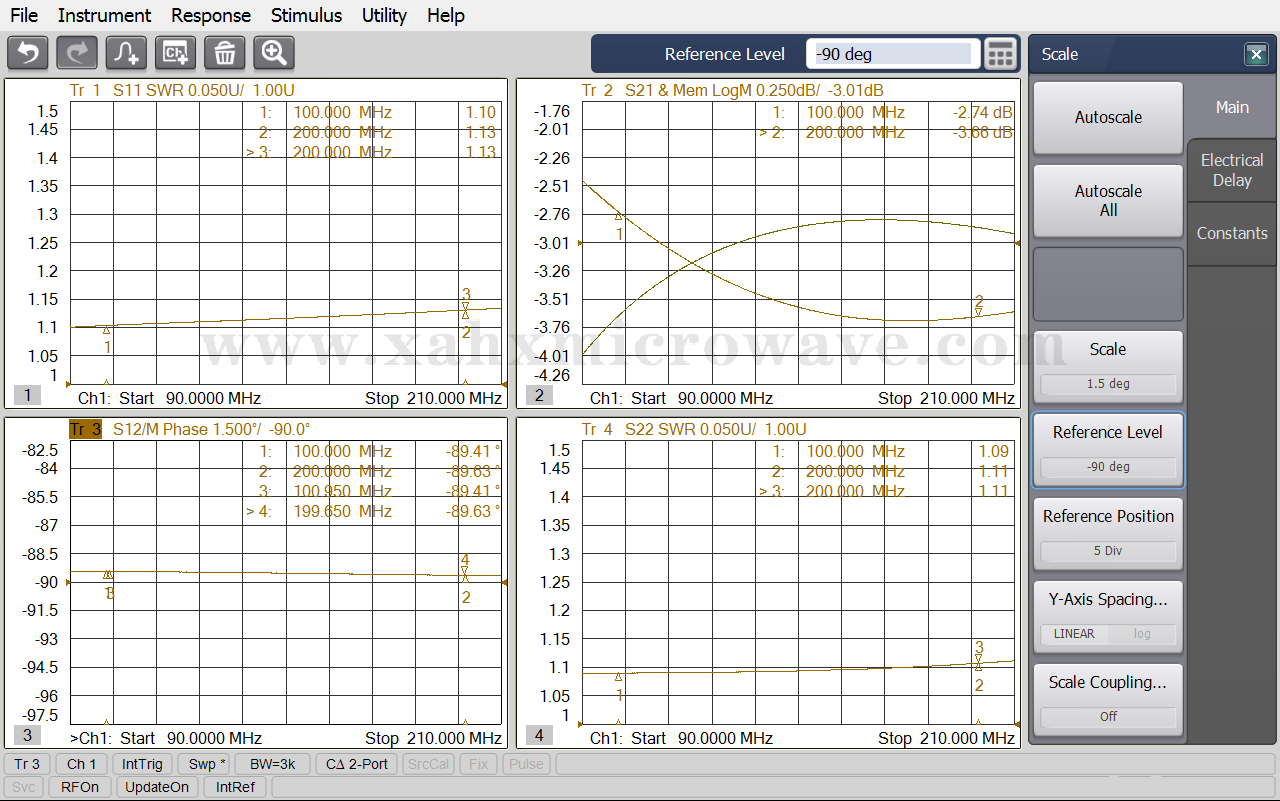

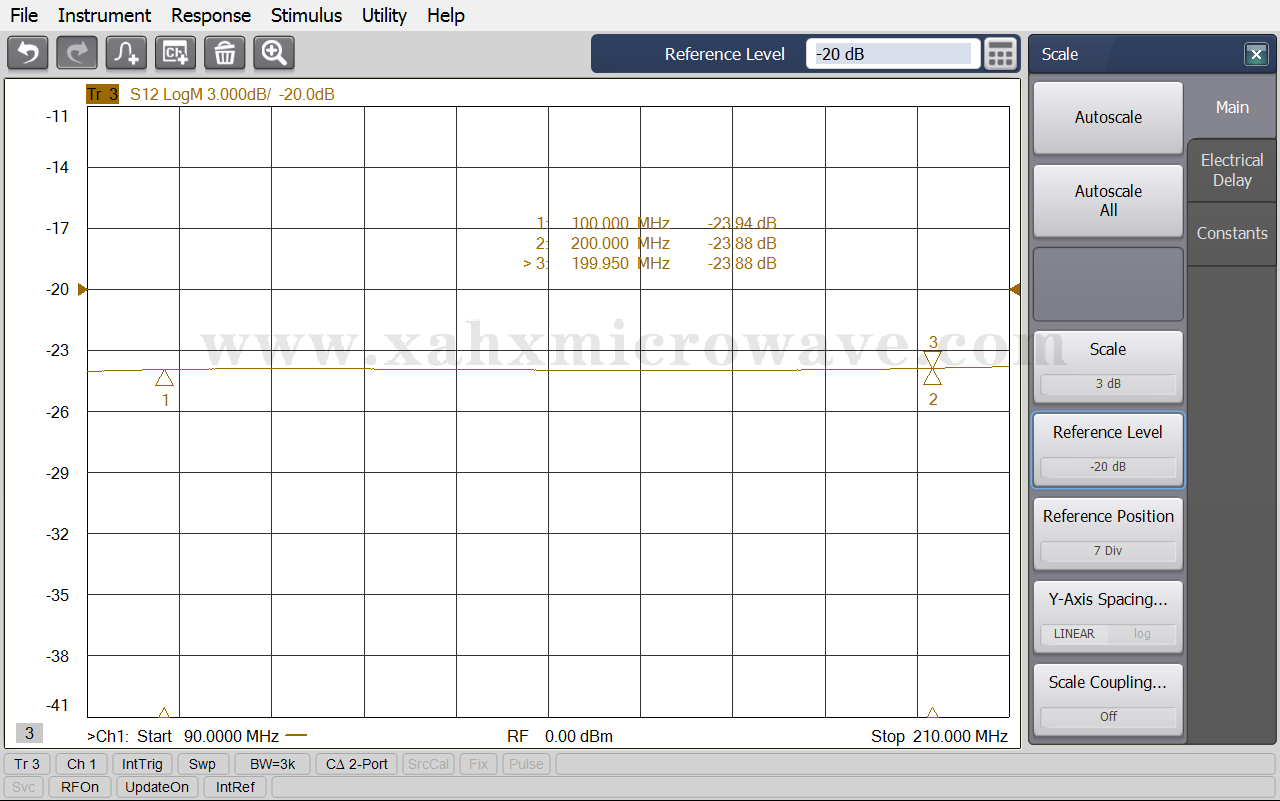

| Test Curve | ||
