| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 20000MHz | |
| ● | 3dB Bandwidth | 200MHz Max. (19900 ~ 20100MHz Max.) | |
| ● | Insertion Loss @ F0 | ≤1.5dB @ 20000MHz | |
| ● | Return Loss @ F0 | ≥18dB @ 20000MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 19600MHz | ≥40dB @ 20400 ~ 30000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | +15℃ ~ +35℃ | |

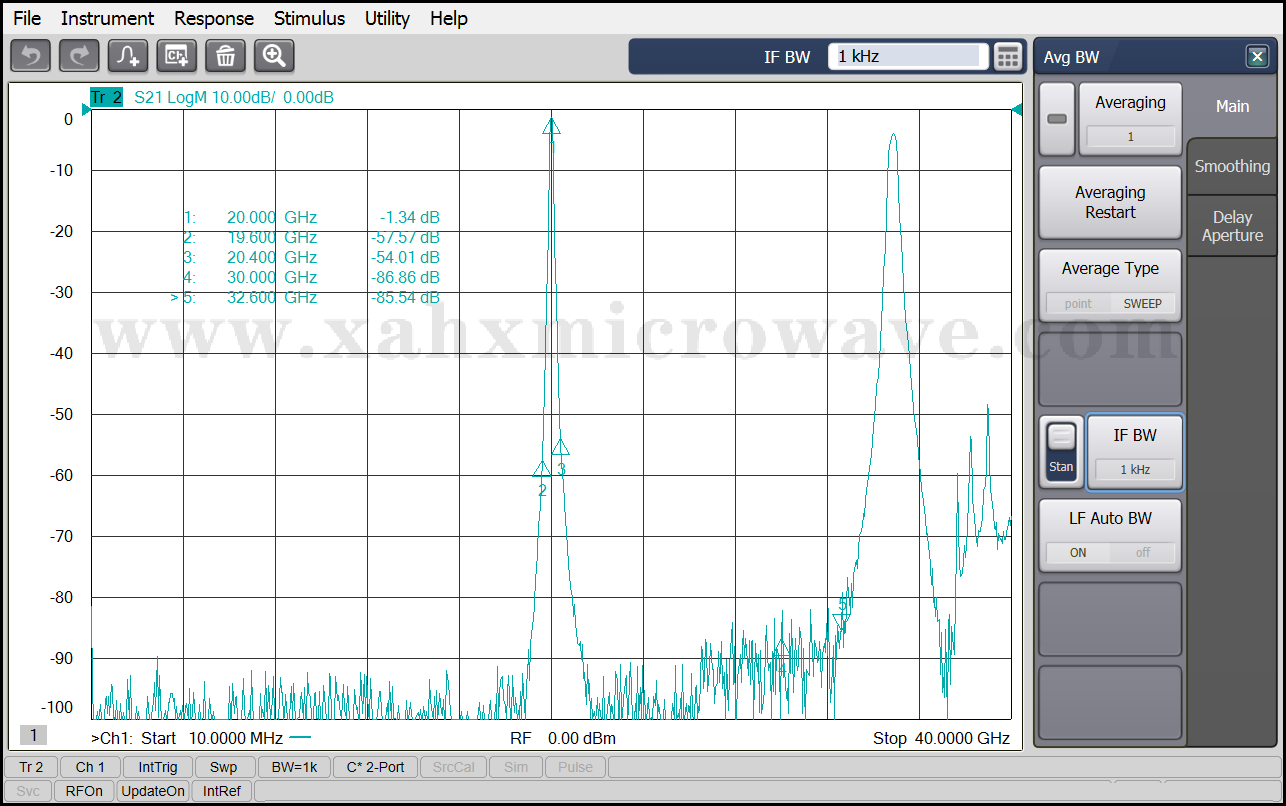

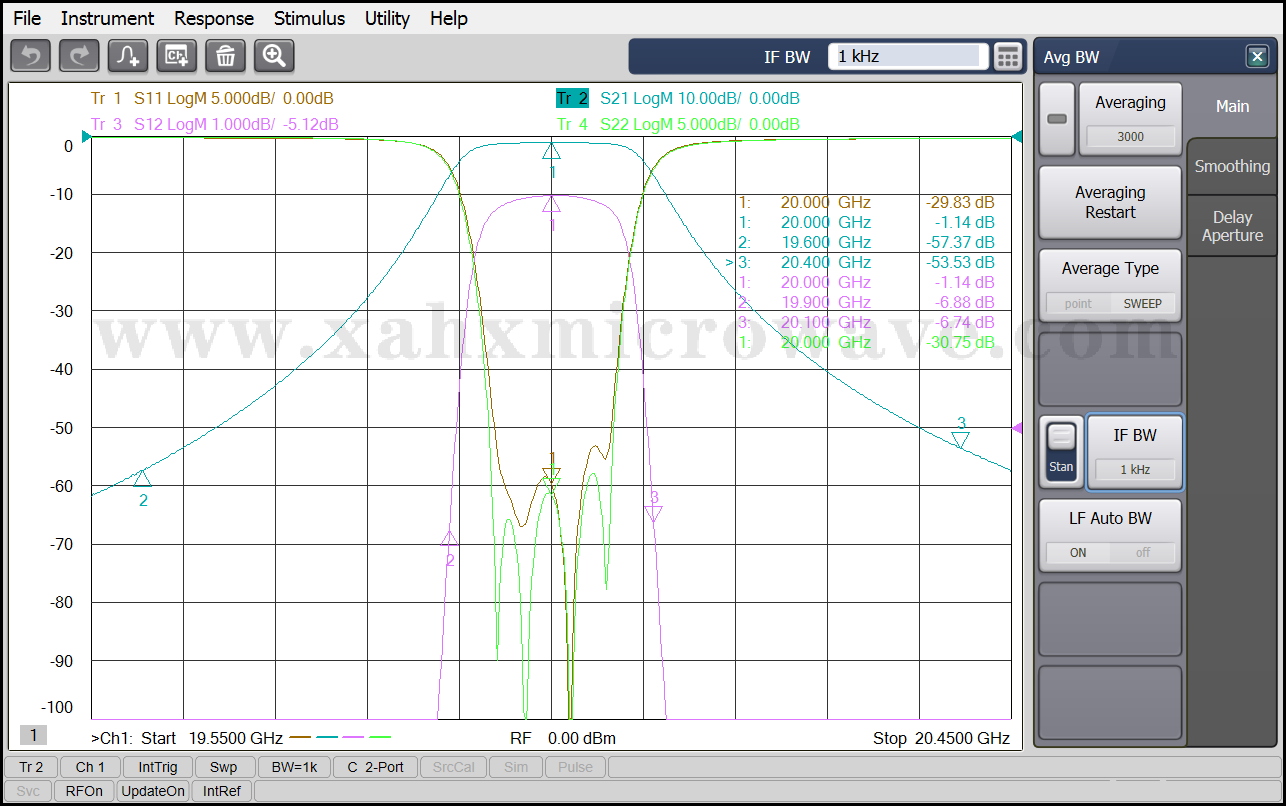

| Test Curve | |||
