| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 15GHz | |
| ● | Pass Band Frequency | 10 ~ 20GHz | |
| ● | Pass Band Insertion Loss | ≤0.7dB | |
| ● | Pass Band Ripple | ≤0.45dB | |
| ● | Pass Band Return Loss | ≥17dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 7.5GHz | ≥45dB @ 20.7 ~ 23GHz |
| ≥45dB @ 7.5 ~ 8.8GHz | |||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

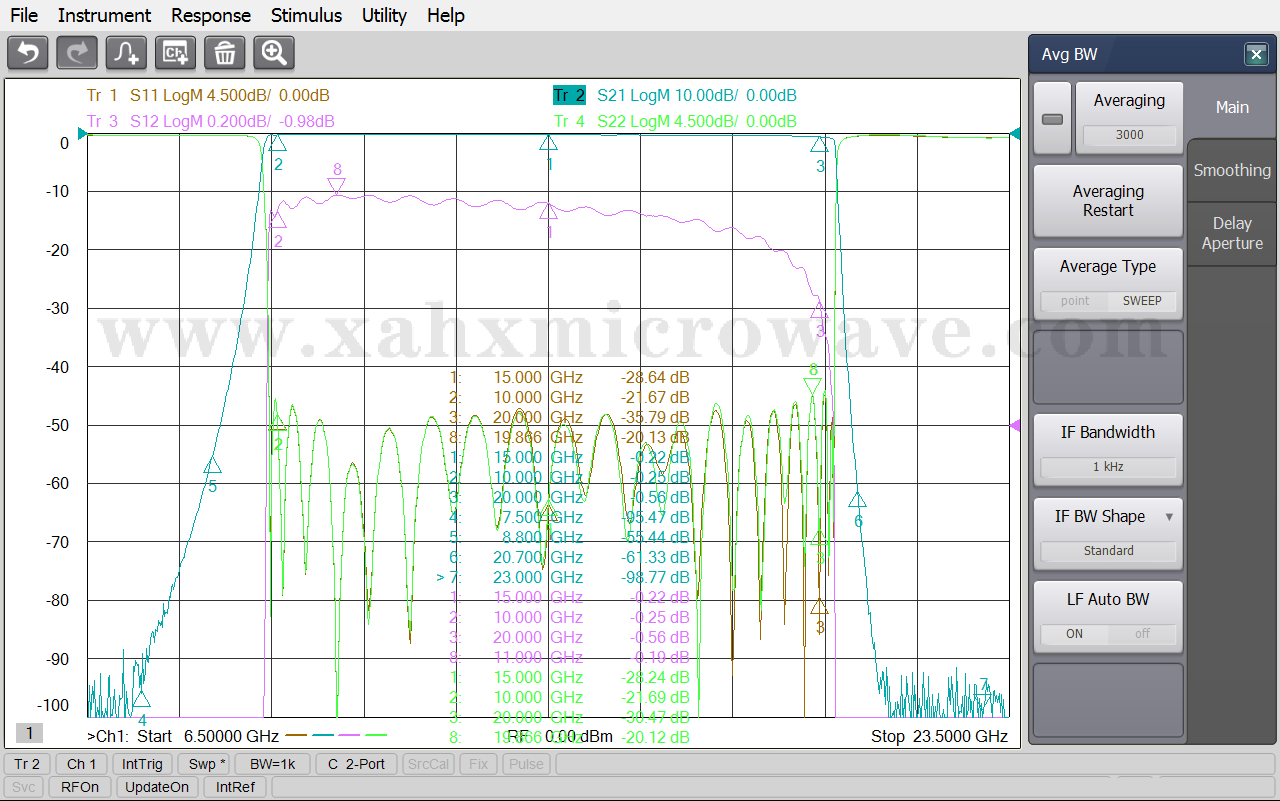

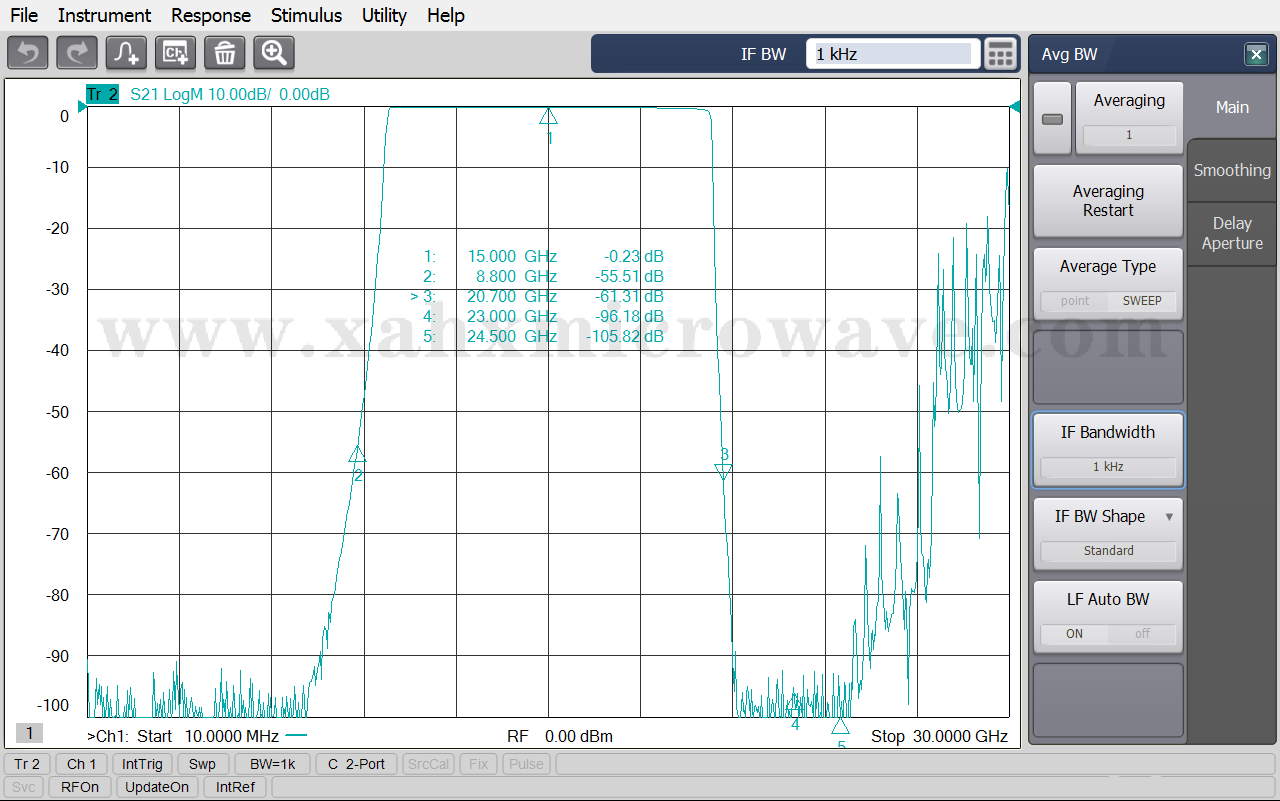

| Test Curve | |||
