| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 890MHz | |
| ● | Pass Band Frequency | 850 ~ 930MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band VSWR | ≤1.4:1 | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 700MHz | ≥40dB @ 1100 ~ 4000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

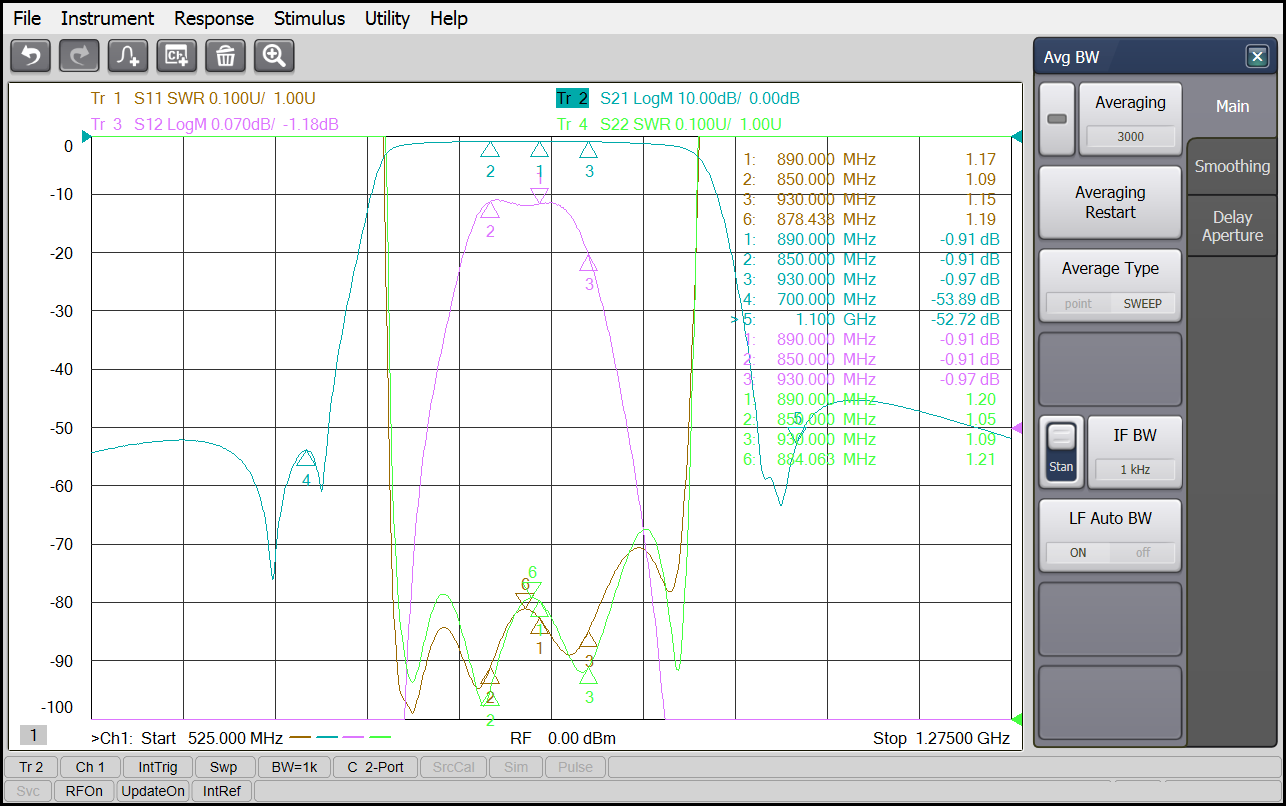

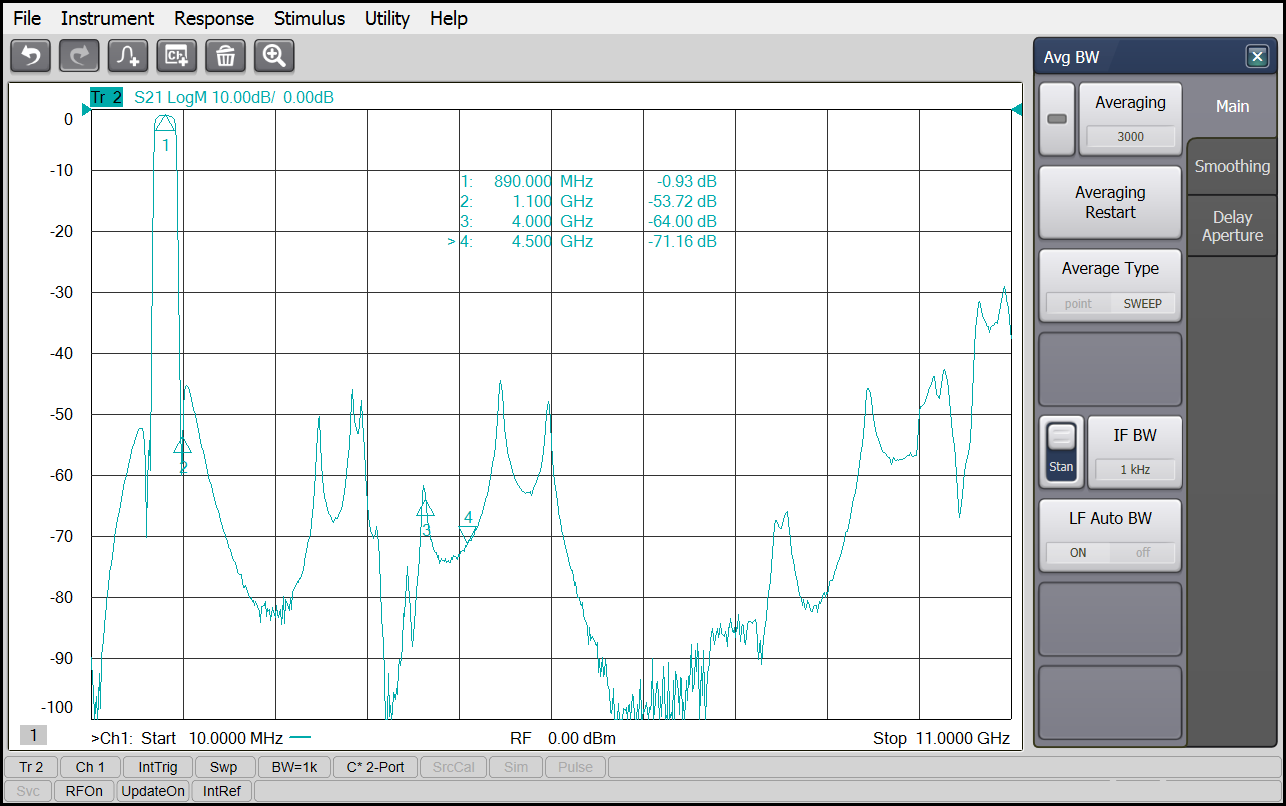

| Test Curve | |||
