| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 1090MHz | |
| ● | Pass Band Frequency | 1089 ~ 1091MHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.3dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 1010MHz | ≥60dB @ 1141 ~ 1170MHz |
| ≥60dB @ 1010 ~ 1039MHz | ≥80dB @ 1170 ~ 5000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 10W Max. | |
| ● | Connectors | SMA-Male / SMA-Female | |
| ● | Surface Finish | Painted Black | |

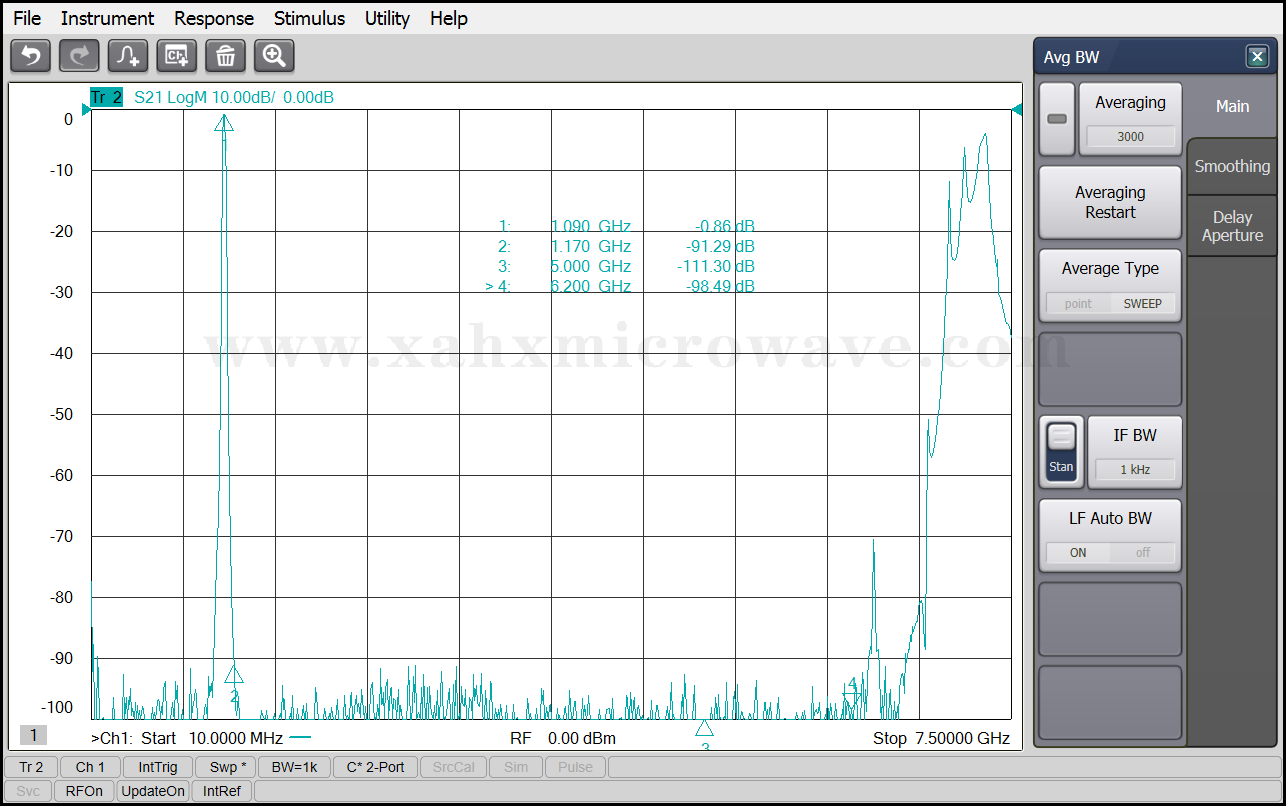

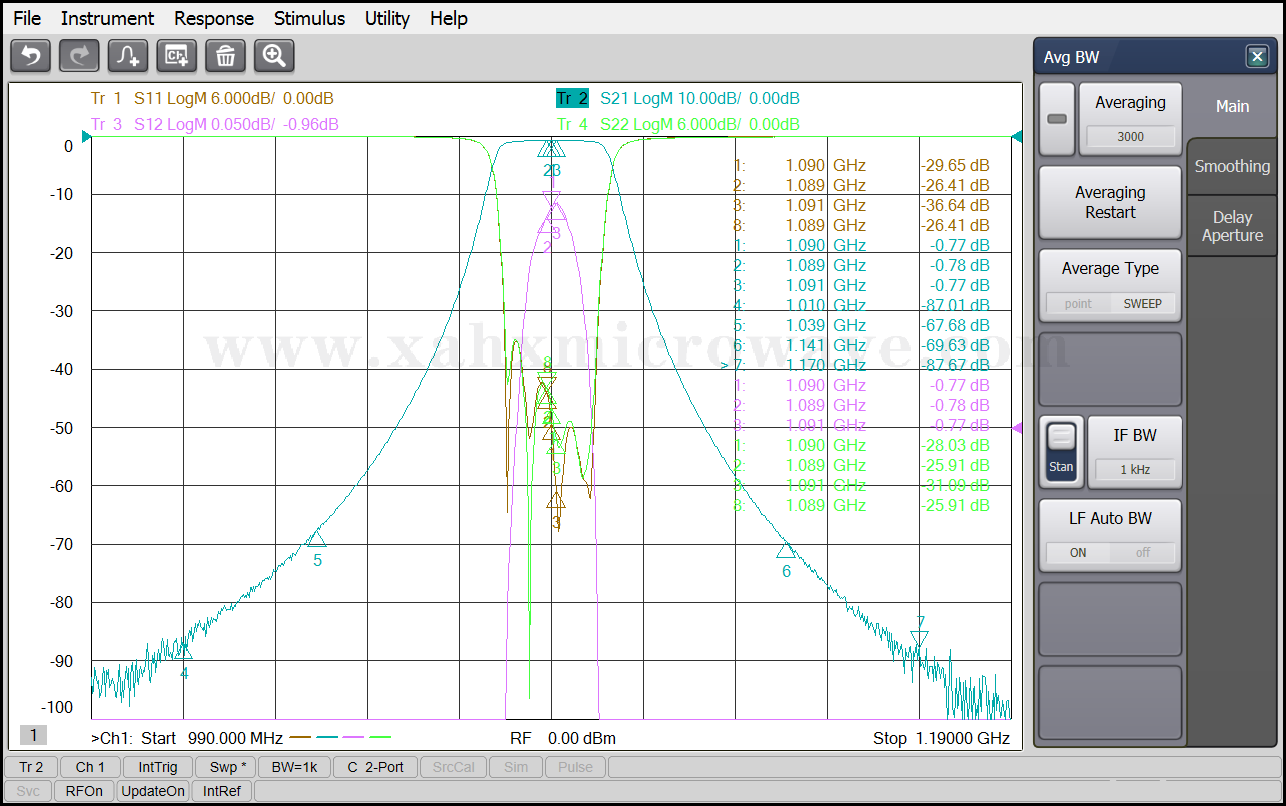

| Test Curve | |||
