Technical Data Sheet
●	Stop Band Frequency	3800 ~ 4200MHz
●	Stop Band Attenuation	≥50dB
●	Pass Band Frequency	DC ~ 3600MHz , 4400 ~ 8500MHz
●	Pass Band Insertion Loss	≤2.0dB
●	Pass Band VSWR	≤1.7:1
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

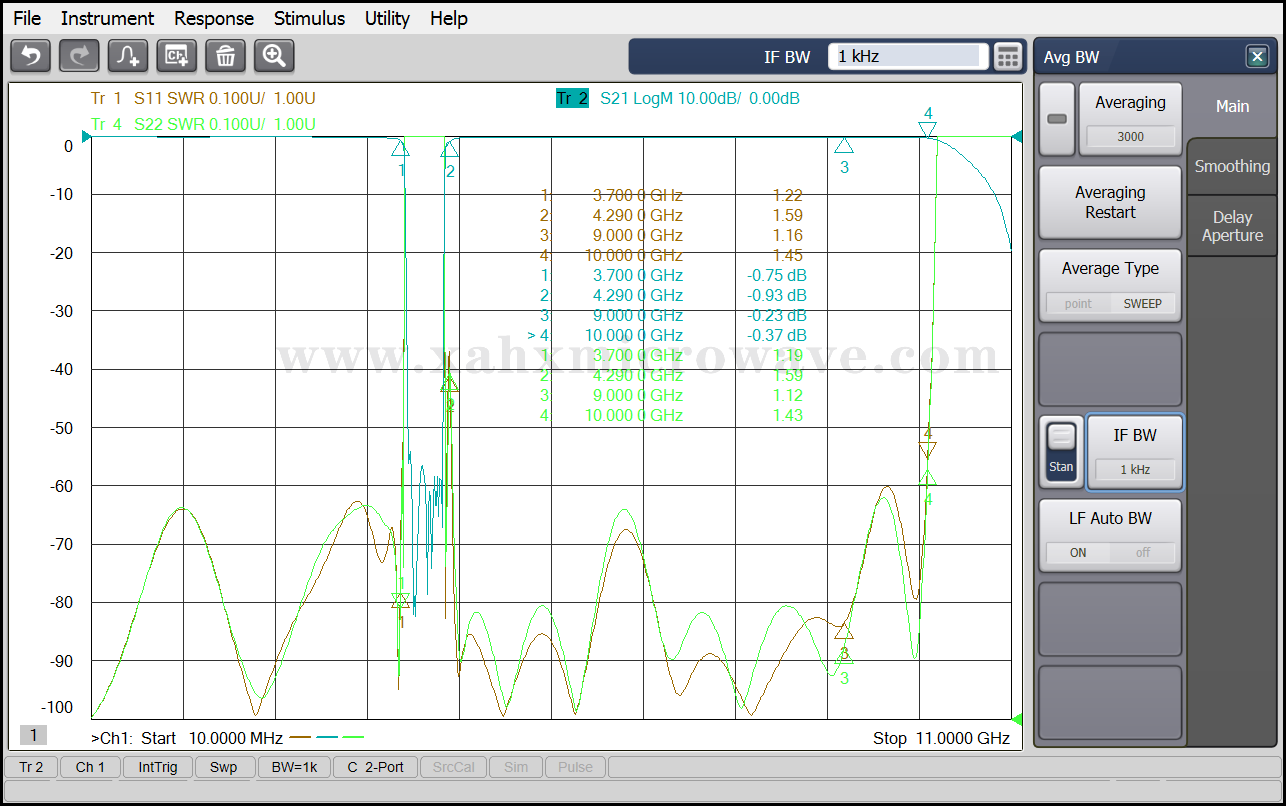

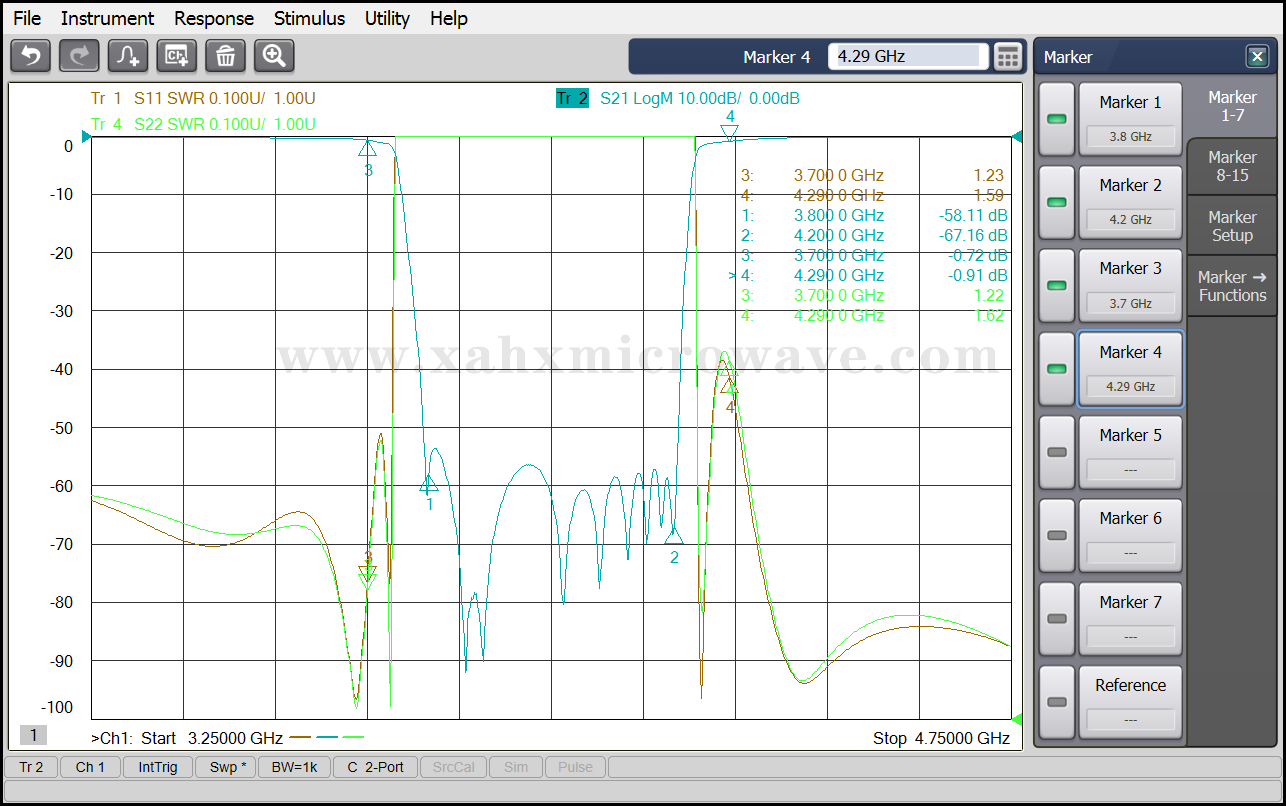

Test Curve
