| Technical Data Sheet | ||
| ● | Stop Band Frequency | 3400 ~ 3800MHz |
| ● | Stop Band Rejection | ≥45dB |
| ● | Pass Band Frequency | DC ~ 3180MHz , 4020 ~ 8000MHz |
| ● | Pass Band Insertion Loss | ≤2.5dB |
| ● | Pass Band VSWR | ≤1.7:1 |
| ● | Impedance | 50 Ohms |
| ● | Power | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |
| ● | Temperature Range | -20℃ ~ +60℃ |

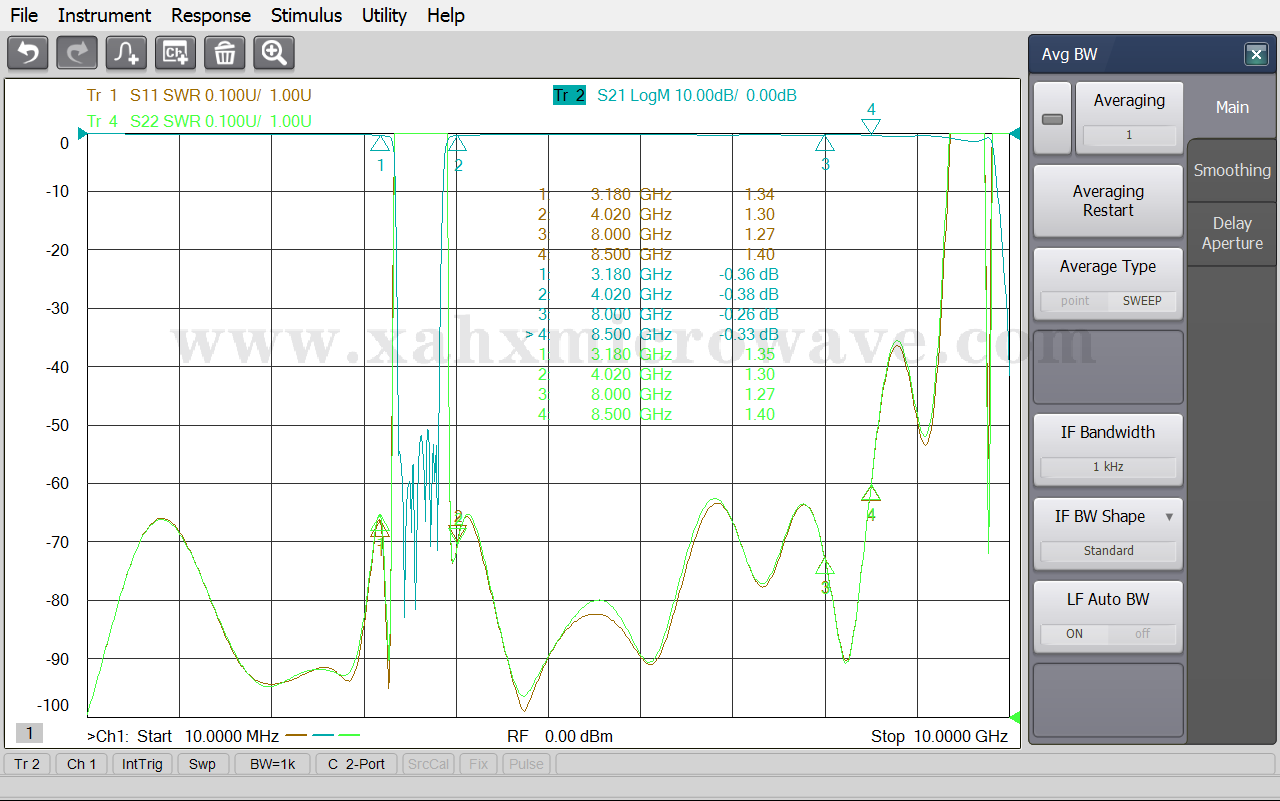

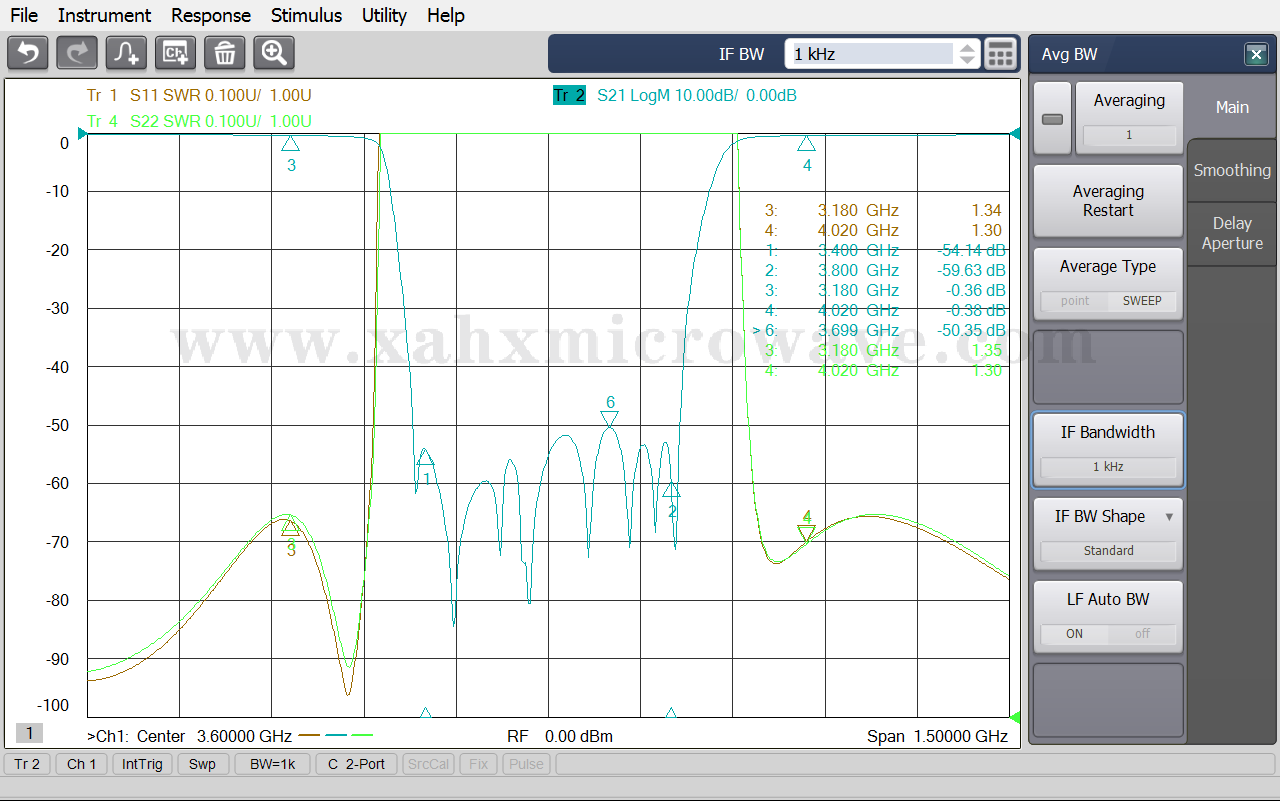

| Test Curve | ||
