| Technical Data Sheet | |||
| ● | Frequency Range | 2.0 ~ 8.0GHz | |
| ● | Coupling Factor | 30dB±1.0dB | |
| ● | Coupling Sensitivity | ≤±1.0dB | |
| ● | Insertion Loss | ≤0.4dB (Excluding Coupling Loss 0.01dB) | |
| ● | VSWR | ≤1.25:1 | |
| ● | Directivity | ≥18dB | |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | Incident: 50W Max. | Reflected: 2.0W Max. |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

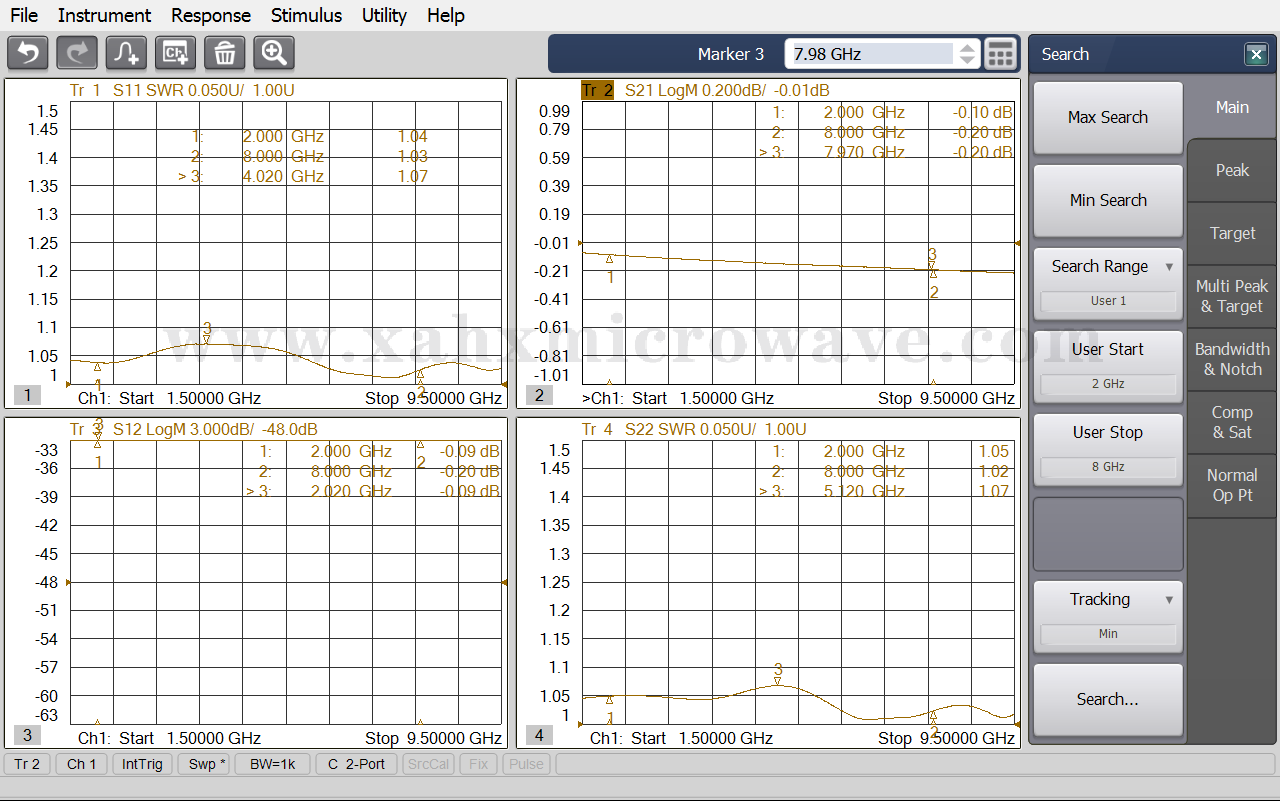

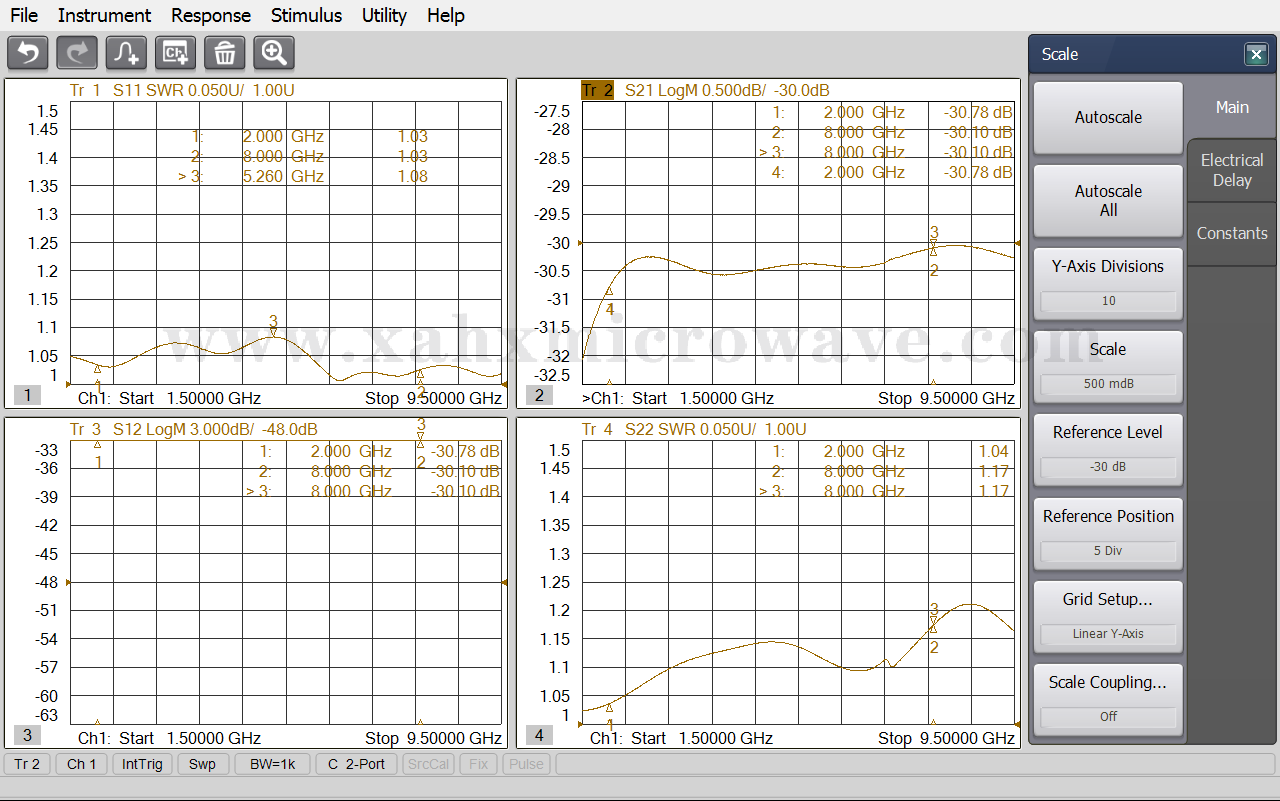

| Test Curve | |||
