| Technical Data Sheet | ||
| ● | Stop Band Frequency | 2535 ~ 2675MHz |
| ● | Stop Band Attenuation | ≥50dB |
| ● | Pass Band Frequency | DC ~ 2485MHz , 2725 ~ 7100MHz |
| ● | Pass Band Insertion Loss | ≤2.0dB |
| ● | Pass Band VSWR | ≤1.5:1 |
| ● | Impedance | 50 Ohms |
| ● | Power Handling | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

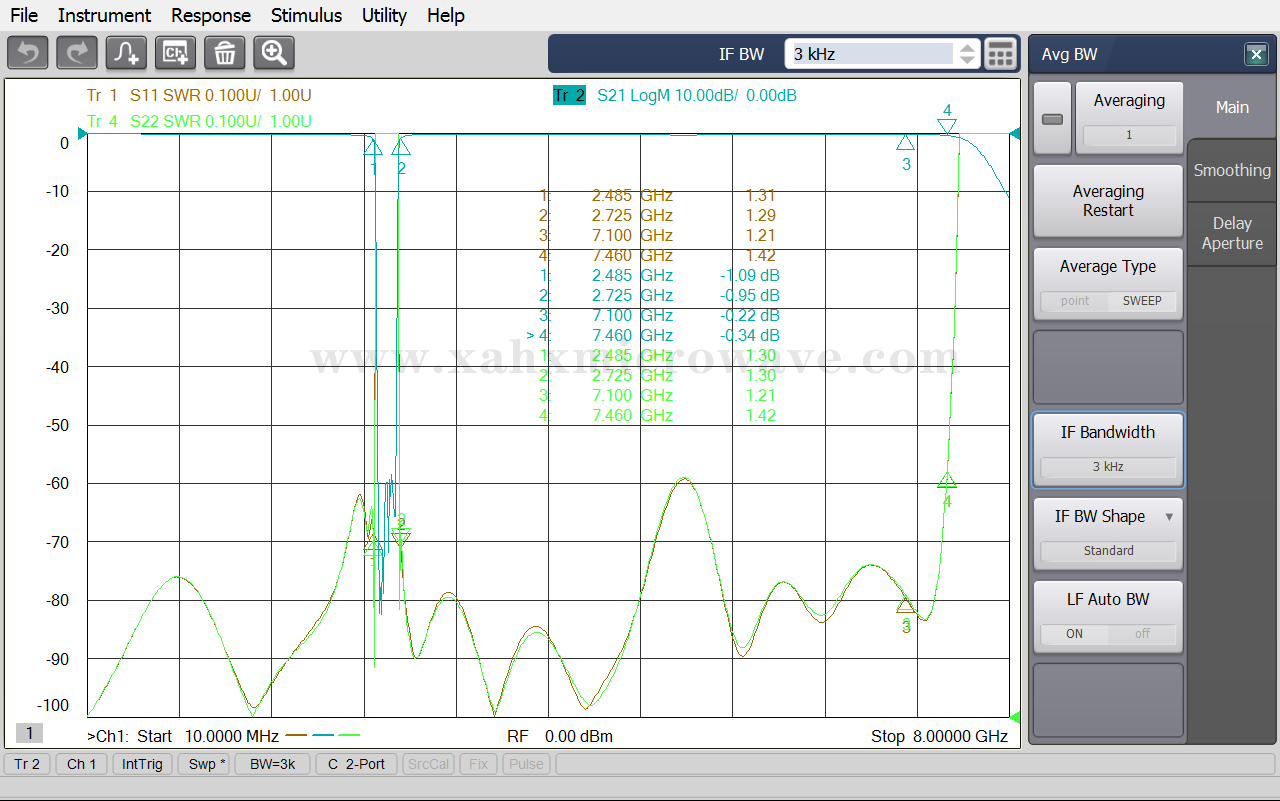

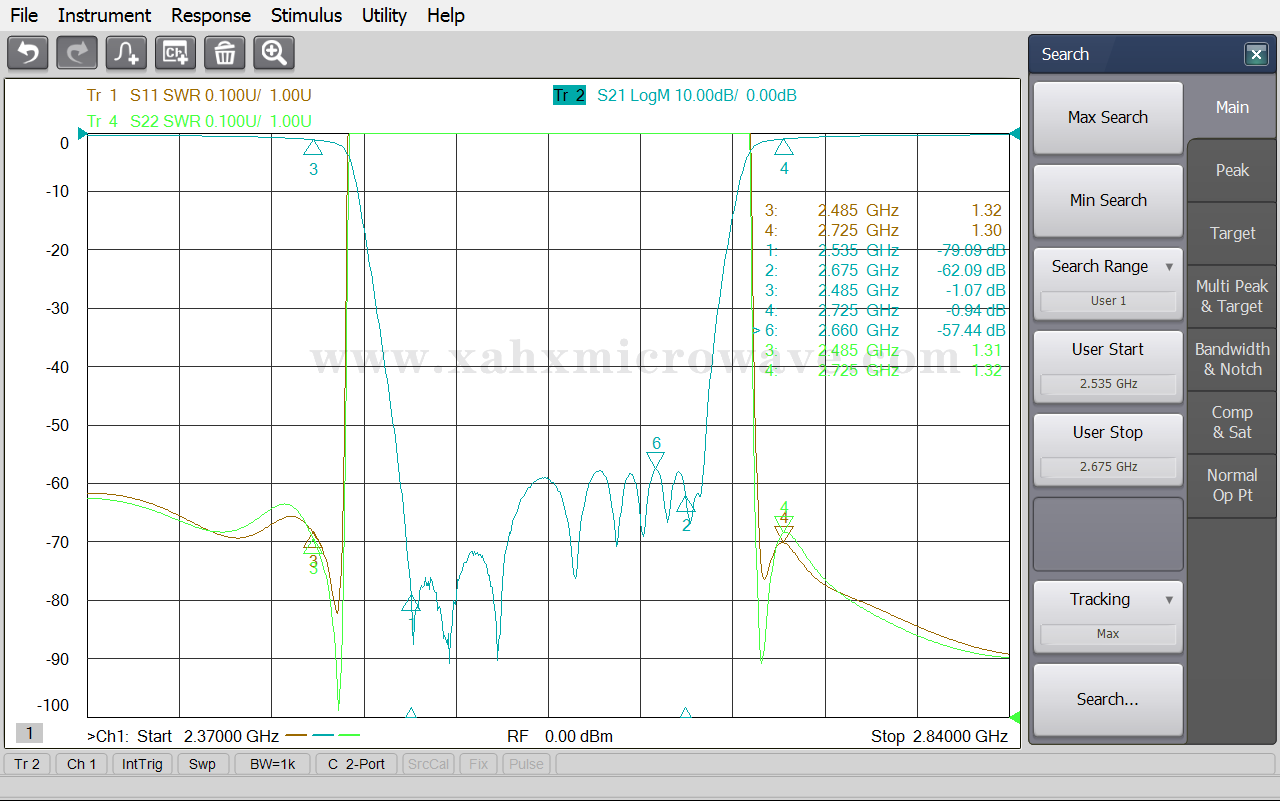

| Test Curve | ||
