Cavity Band Rejection Filter

  • 1920-1980MHz Band stop filter / notch filter HXLBQ-DZA63

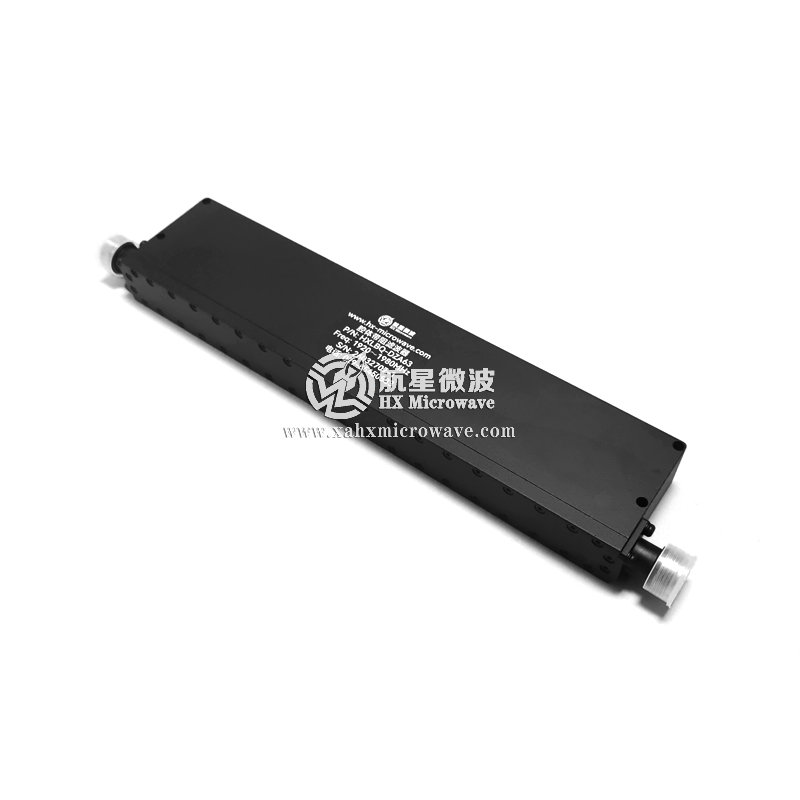

1920-1980MHz Band stop filter / notch filter HXLBQ-DZA63

1920-1980MHz Band stop filter / notch filter HXLBQ-DZA63

  • P/N:HXLBQ-DZA63
  • Stop Band Frequency:1920~1980MHz
  • Stop Band Attenuation:≥35dB
  • Insertion loss:≤2.0dB
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download

Cavity Band Rejection Filter
Specifications

Serial

Parameters

1

Stop Band Frequency

19201980MHz

2

Stop Band Attenuation

35dB

3

Pass Band Frequency

DC1900MHz & 20004500MHz

4

Pass Band Insertion Loss

2.0dB

5

Pass Band VSWR

1.5:1

6

Impedance

50 ohms

7

Surface Finish

Black Paint

8

Power Handling

50W

9

Connectors

N-Female

10

Net Weight

0.51 KG

11

Configuration

As Below (Size Unit: mm)
