Technical Data Sheet
●	Stop Band Frequency	5150 ~ 5925MHz
●	Stop Band Attenuation	≥40dB
●	Pass Band Frequency	DC ~ 4897MHz , 6178 ~ 11500MHz
●	Pass Band Insertion Loss	≤1.5dB
●	Pass Band VSWR	≤1.7:1
●	Impedance	50 Ohms
●	Power Handling	5W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

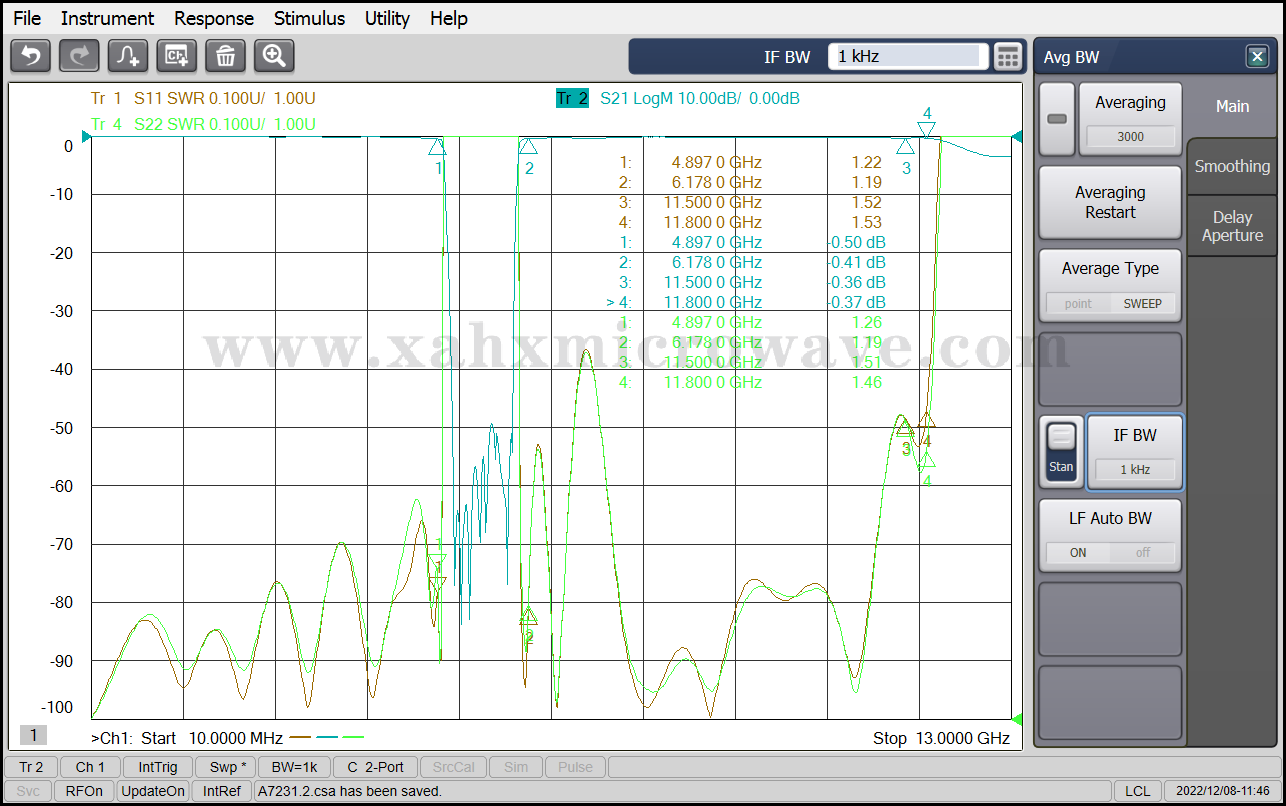

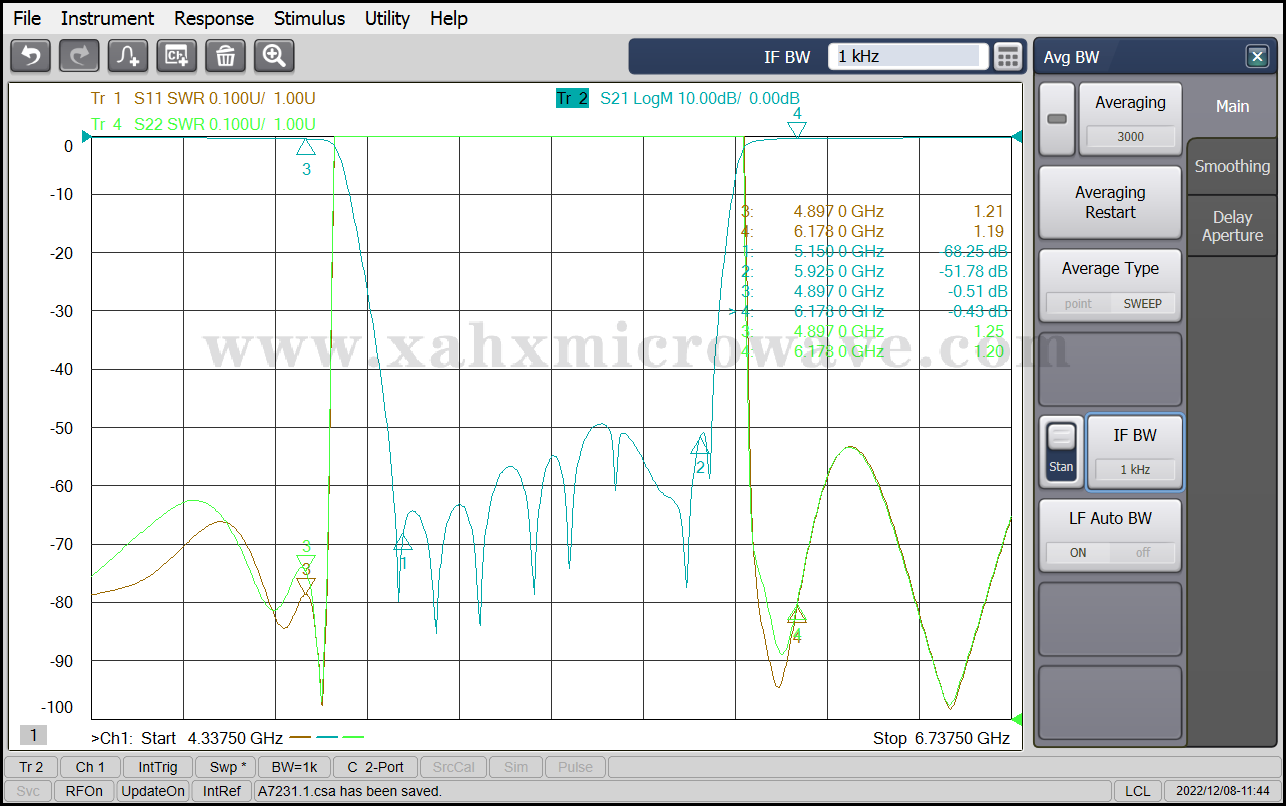

Test Curve
