Cavity Band Rejection Filter

  • 5470-5850MHz Cavity Band Rejection Filter

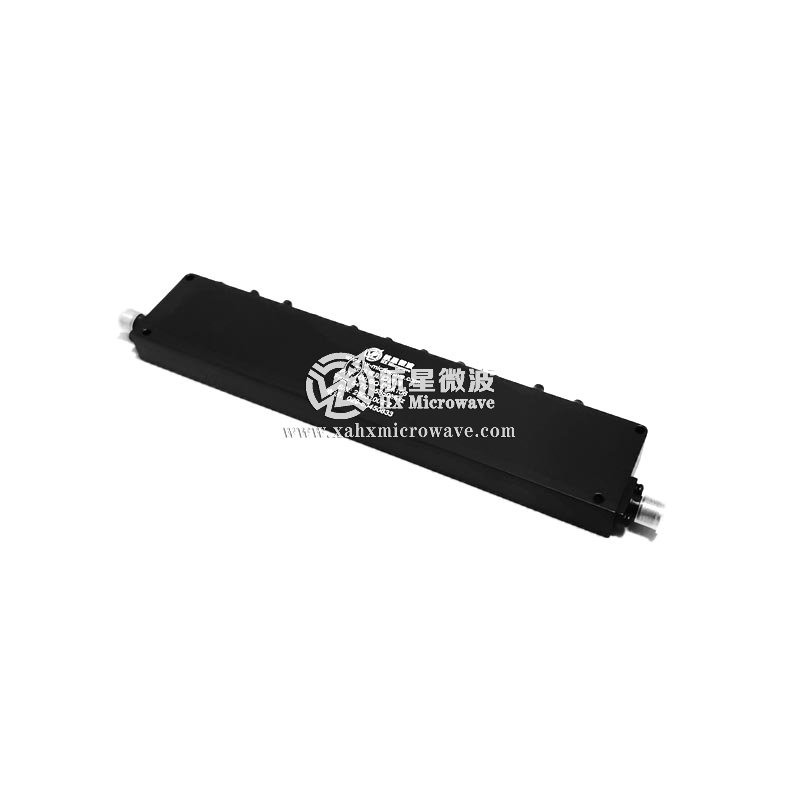

5470-5850MHz Cavity Band Rejection Filter

5470-5850MHz Cavity Band Rejection Filter

  • P/N:HXLBQ-DZA106
  • Stop Band Frequency:5470~5850MHz
  • inhibition:≥45dB
  • Connectors:SMA-Female
  • Product description: Product Features ♦ Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Out of band suppression ♦ Operating temperature range: -40~+70°C
  • PDF technical index download

Technical Data Sheet
Stop Band Frequency 54705850MHz
Stop Band Attenuation ≥45dB
Pass Band Frequency DC5380MHz & 59408000MHz
Pass Band Insertion Loss ≤3.0dB
Pass Band VSWR ≤1.8:1
Impedance 50 ohms
Surface Finish Black Paint
Power Handling ≤50W
Connectors SMA-Female
Net Weight TBD

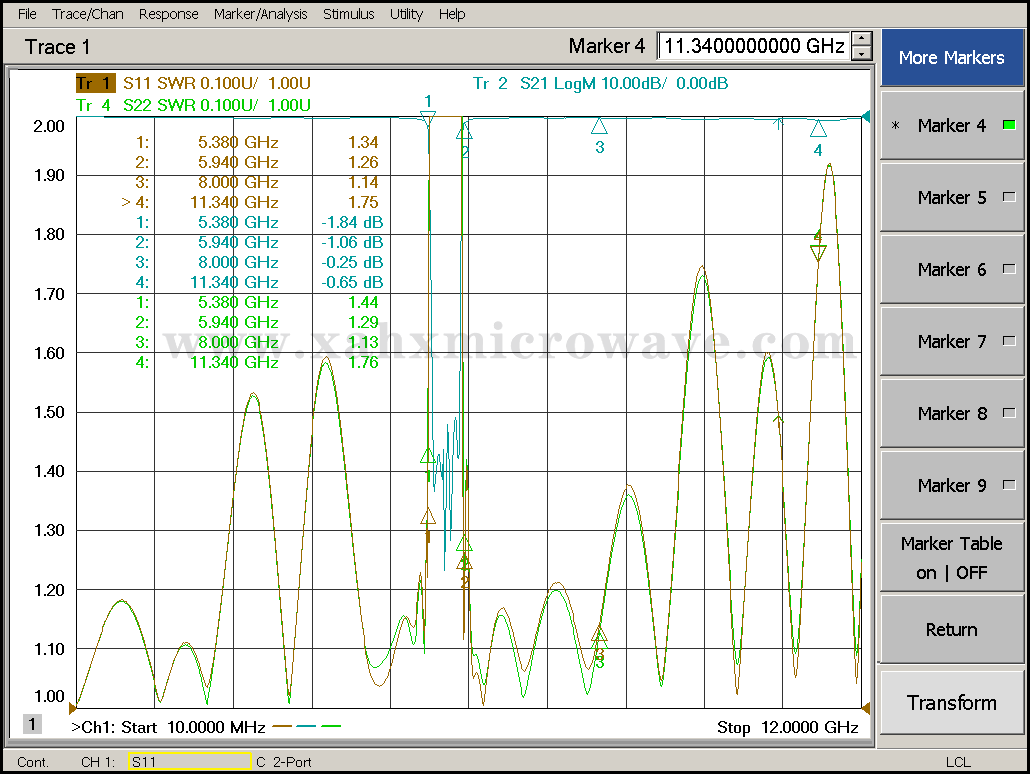

Test Curve
