| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 5787.5MHz | |
| ● | Pass Band Frequency | 5725 ~ 5850MHz | |
| ● | Pass Band Insertion Loss | ≤1.5dB | |
| ● | Pass Band Ripple | ≤0.7dB | |
| ● | Pass Band Return Loss | ≥23dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 5600MHz | ≥50dB @ 5925 ~ 5975MHz |
| ≥50dB @ 5600 ~ 5650MHz | ≥80dB @ 5975 ~ 10000MHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 50W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

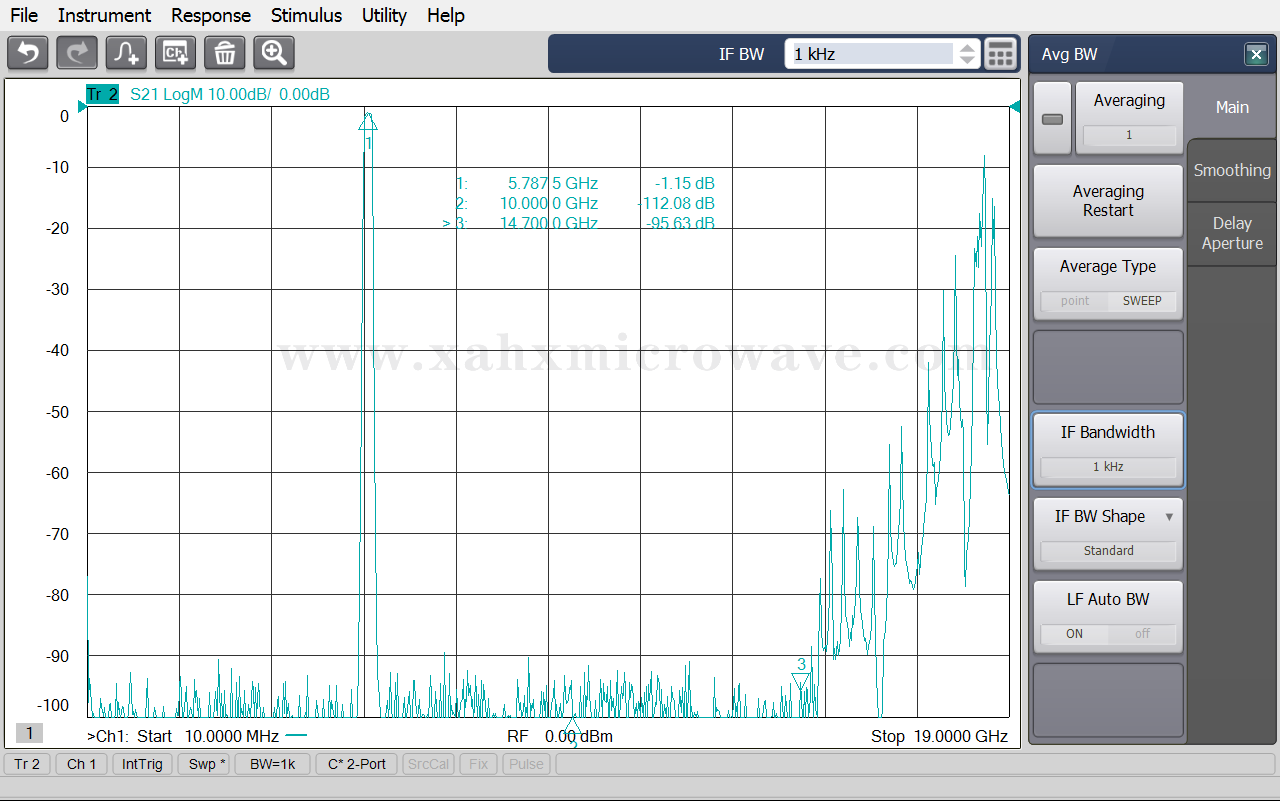

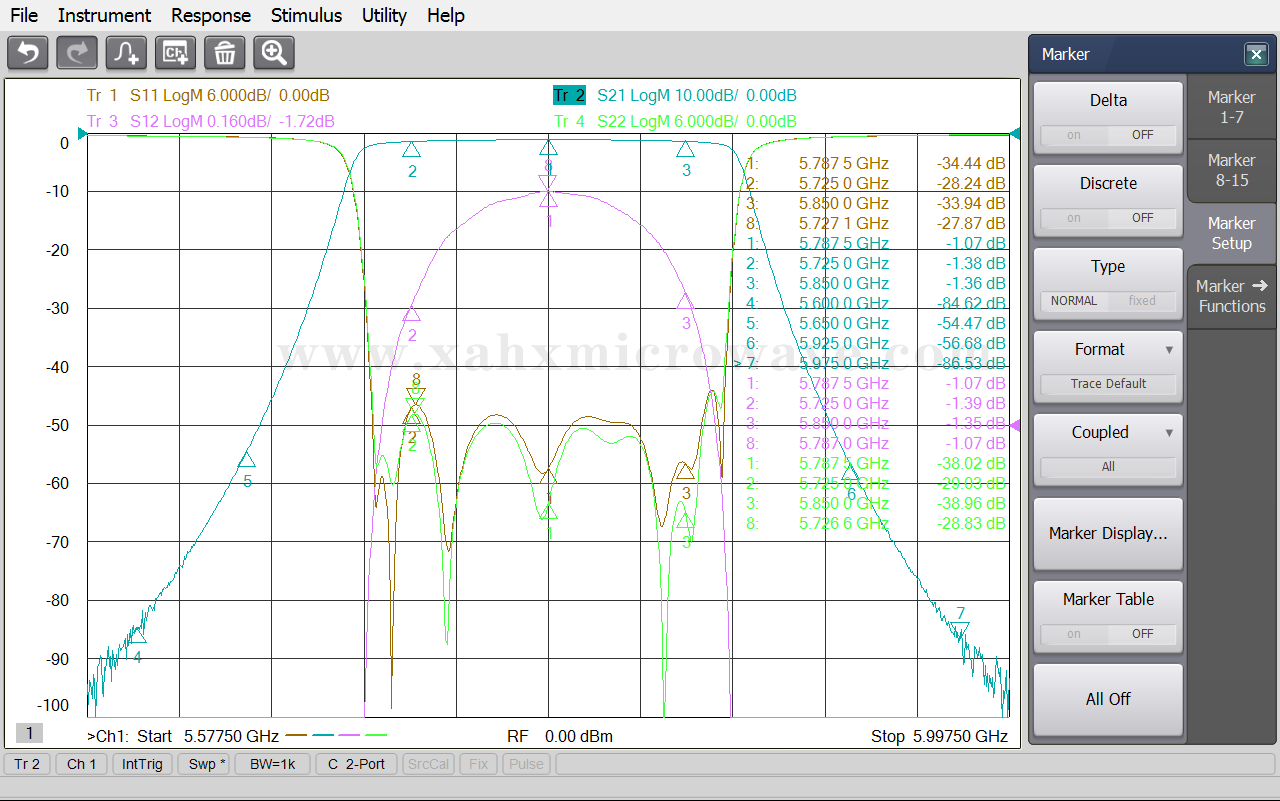

| Test Curve | |||
