  • 20GHz Cavity Band Pass Filter_19.95-20.05GHz

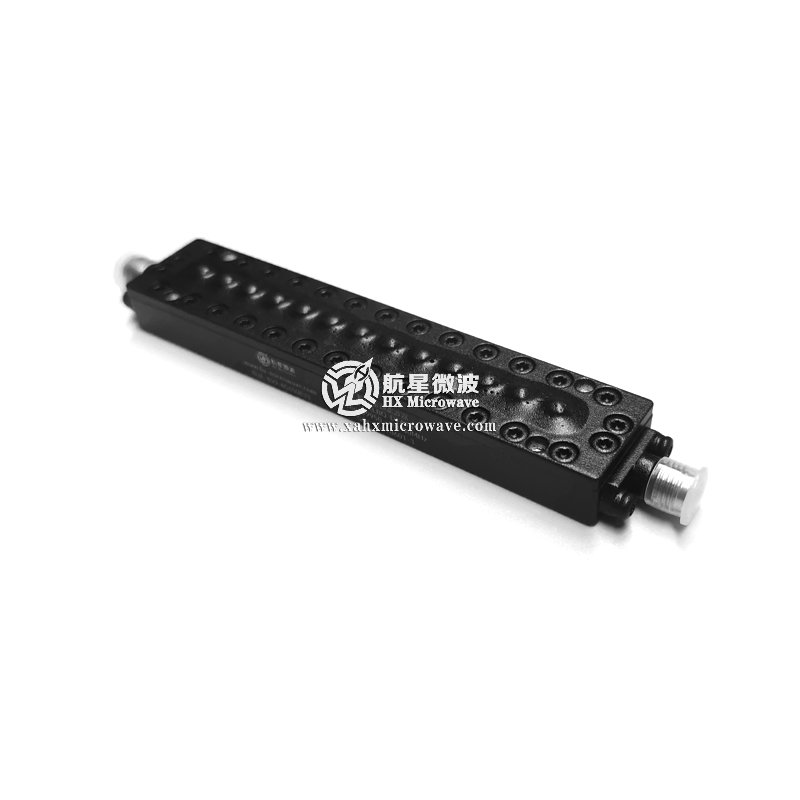

20GHz Cavity Band Pass Filter_19.95-20.05GHz

20GHz Cavity Band Pass Filter_19.95-20.05GHz

  • P/N：HXLBQ-DTA1357
  • Pass Band Frequency：19.95-20.05GHz
  • Stop Band Rejection：≥40dB
  • Connectors：SMA-Female
  • Product description:
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 20000MHz
● 3.0dB Bandwidth 100MHz (19950 ~ 20050MHz)
● Insertion Loss @ F0 ≤2.5dB @ 20000MHz
● Return Loss ≥20dB @ 19990 ~ 20010MHz
● Stop Band Rejection ≥80dB @ DC ~ 19800MHz ≥40dB @ 20100 ~ 20200MHz
≥40dB @ 19800 ~ 19900MHz ≥80dB @ 20200 ~ 30000MHz
● Impedance 50 Ohms
● Power Handling 5.0W Max.
● Connectors SMA-Female
● Surface Finish Painted Black

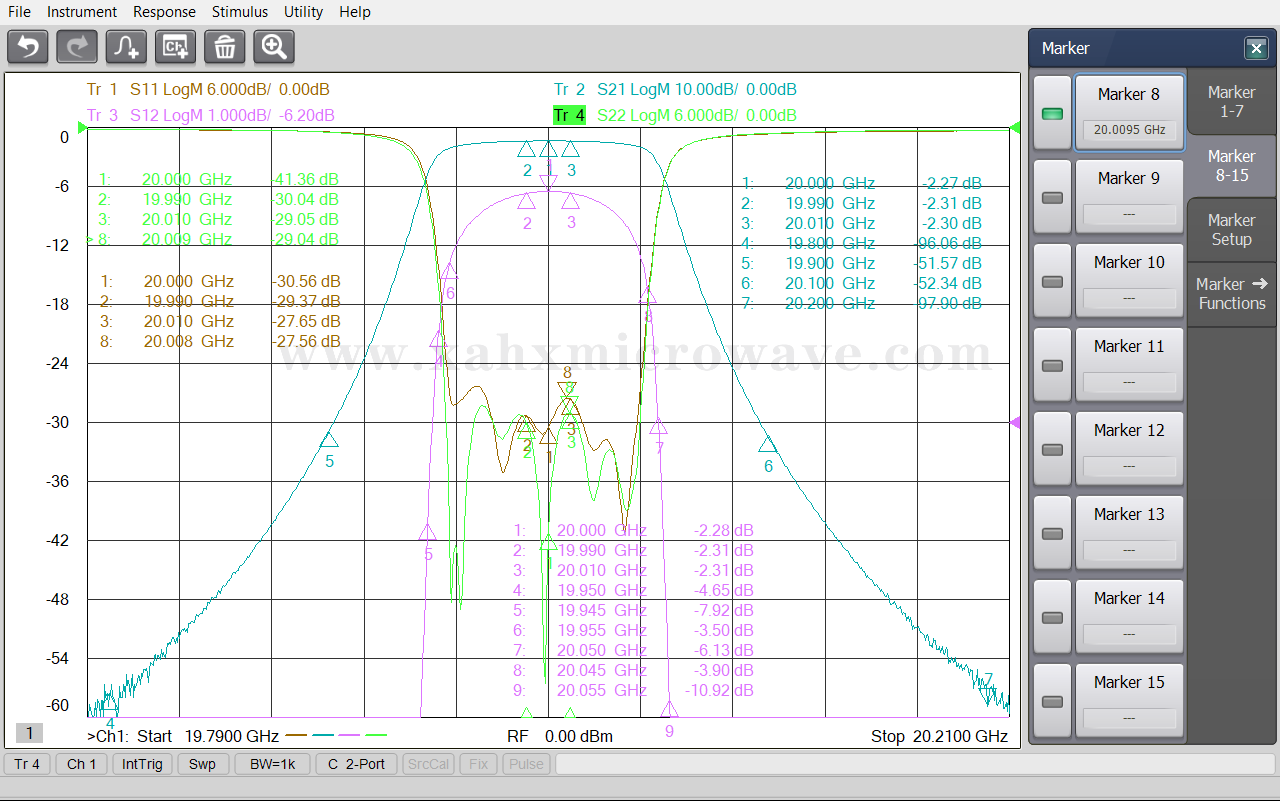

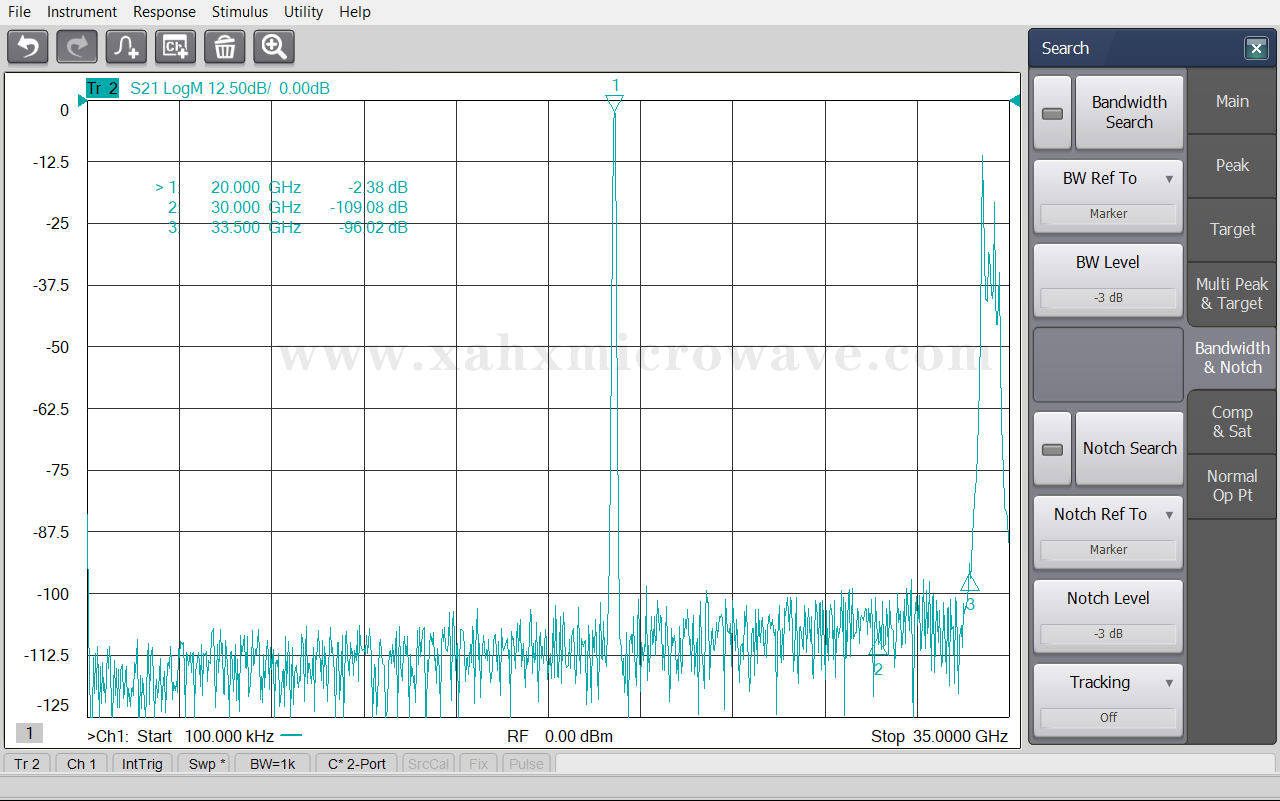

Test Curve
