| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 15GHz | |
| ● | Pass Band Frequency | 12 ~ 18GHz | |
| ● | Pass Band Insertion Loss | ≤0.75dB | |
| ● | Pass Band Ripple | ≤0.45dB | |
| ● | Pass Band Return Loss | ≥18dB | |
| ● | Stop Band Rejection | ≥80dB @ DC ~ 10GHz | ≥30dB @ 18.5 ~ 18.65GHz |
| ≥50dB @ 10 ~ 11GHz | ≥50dB @ 18.65 ~ 18.95GHz | ||
| ≥10dB @ 11 ~ 11.5GHz | ≥80dB @ 18.95 ~ 27GHz | ||
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

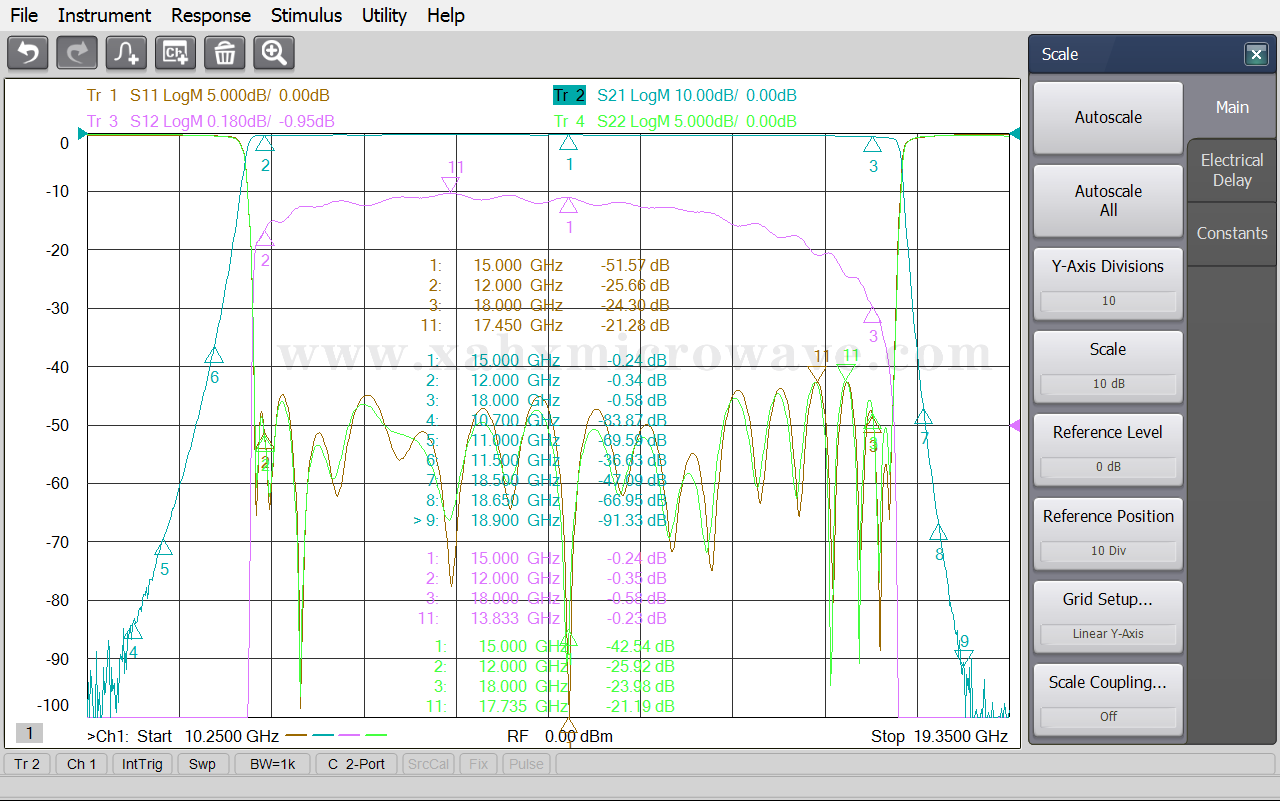

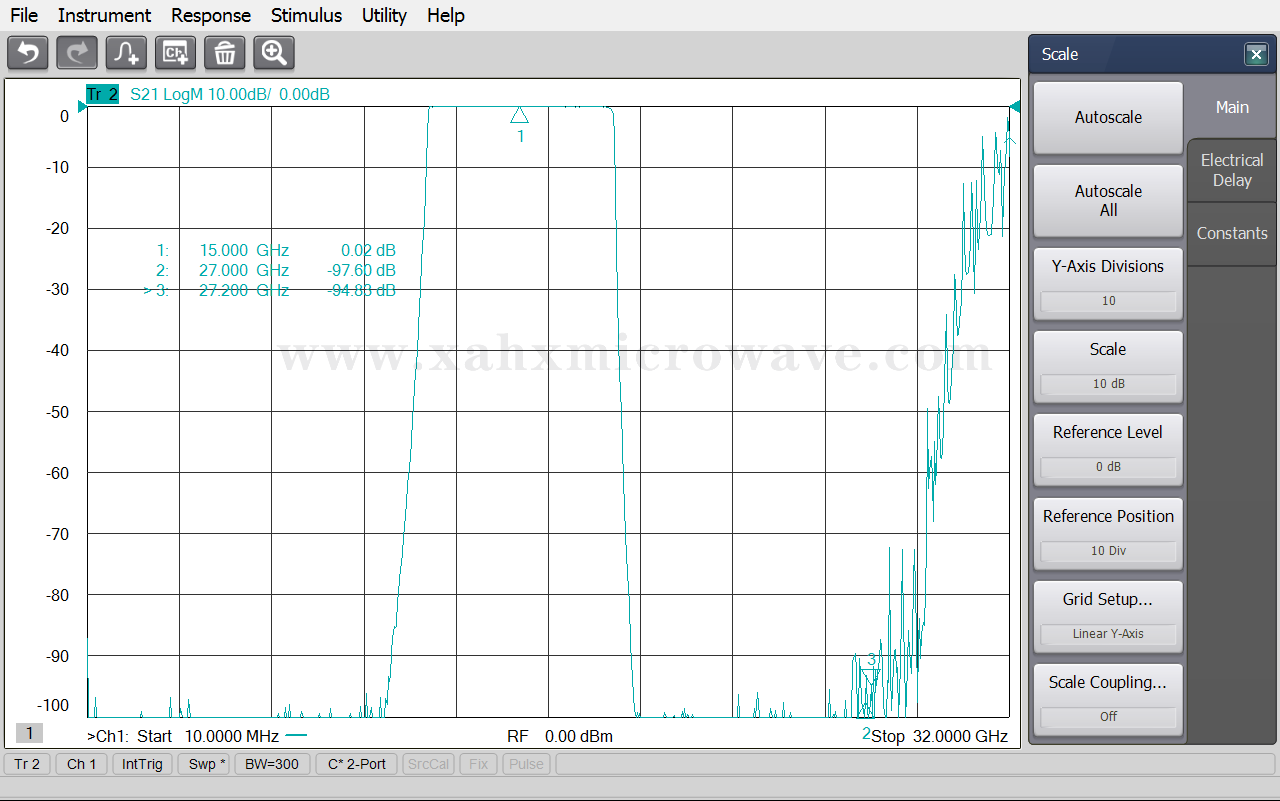

| Test Curve | |||
