| Technical Data Sheet | ||
| ● | Center Frequency(F0) | 1000MHz |
| ● | 3dB Bandwidth | 20MHz Max. (990 ~ 1010MHz Max.) |
| ● | Insertion Loss @ F0 | ≤1.5dB @ 1000MHz |
| ● | Return Loss @ F0 | ≥18dB @ 1000MHz |
| ● | Stop Band Rejection | ≥40dB @ F0±70MHz (DC ~ 930MHz , 1070 ~ 1500MHz) |
| ● | Impedance | 50 Ohms |
| ● | Power | 10W Max. |
| ● | Connectors | SMA-Female |
| ● | Surface Finish | Painted Black |

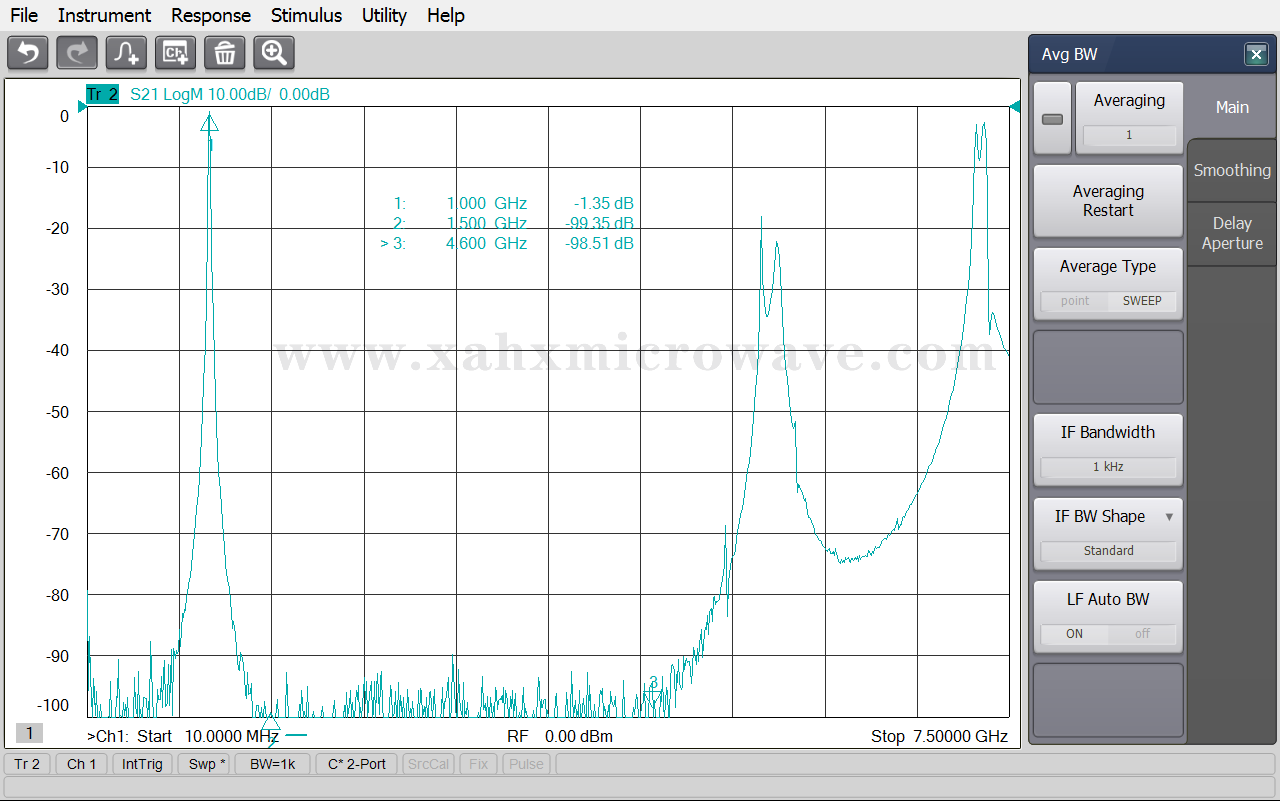

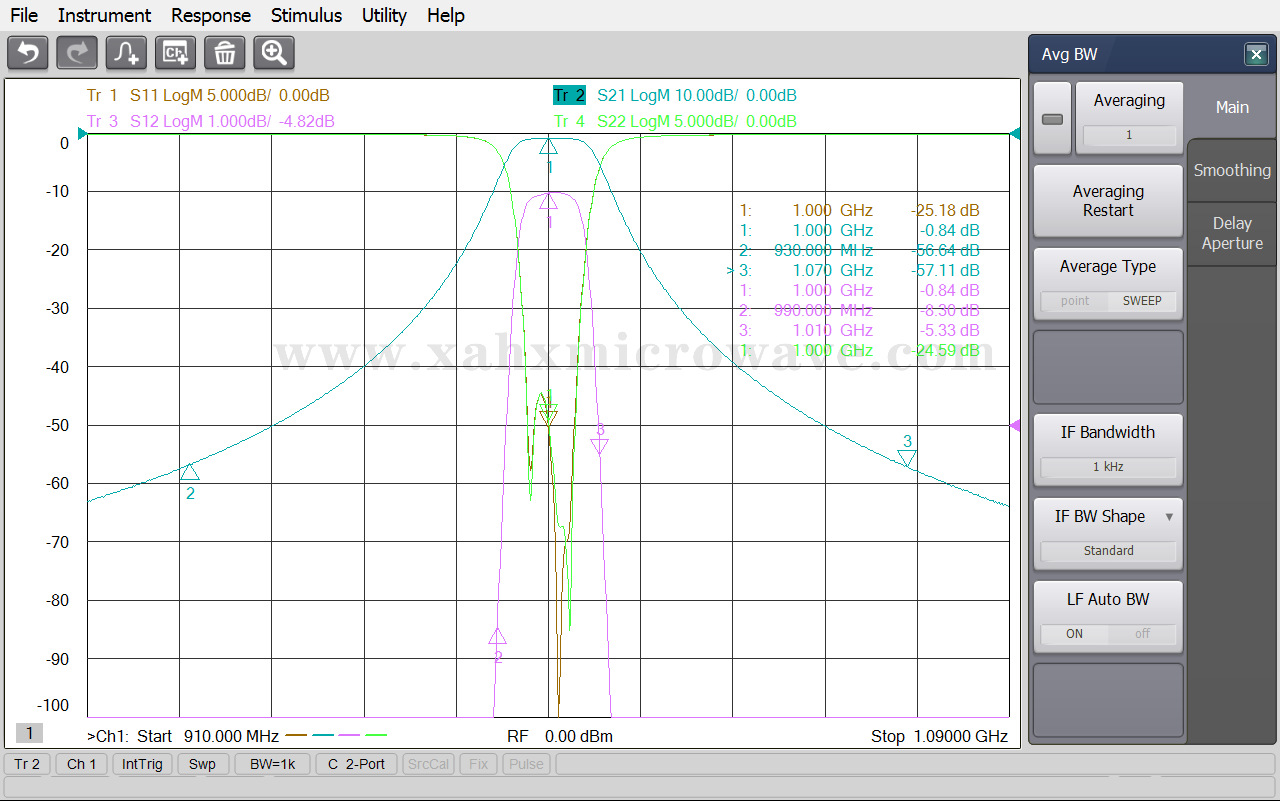

| Test Curve | ||
