| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 6.0GHz | |
| ● | Pass Band Frequency | 5.0 ~ 7.0GHz | |
| ● | Pass Band Insertion Loss | ≤1.0dB | |
| ● | Pass Band Ripple | ≤0.5dB | |
| ● | Pass Band VSWR | ≤1.3:1 | |
| ● | Stop Band Rejection | ≥50dB @ DC ~ 4.4GHz | ≥50dB @ 7.4 ~ 14GHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 5W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

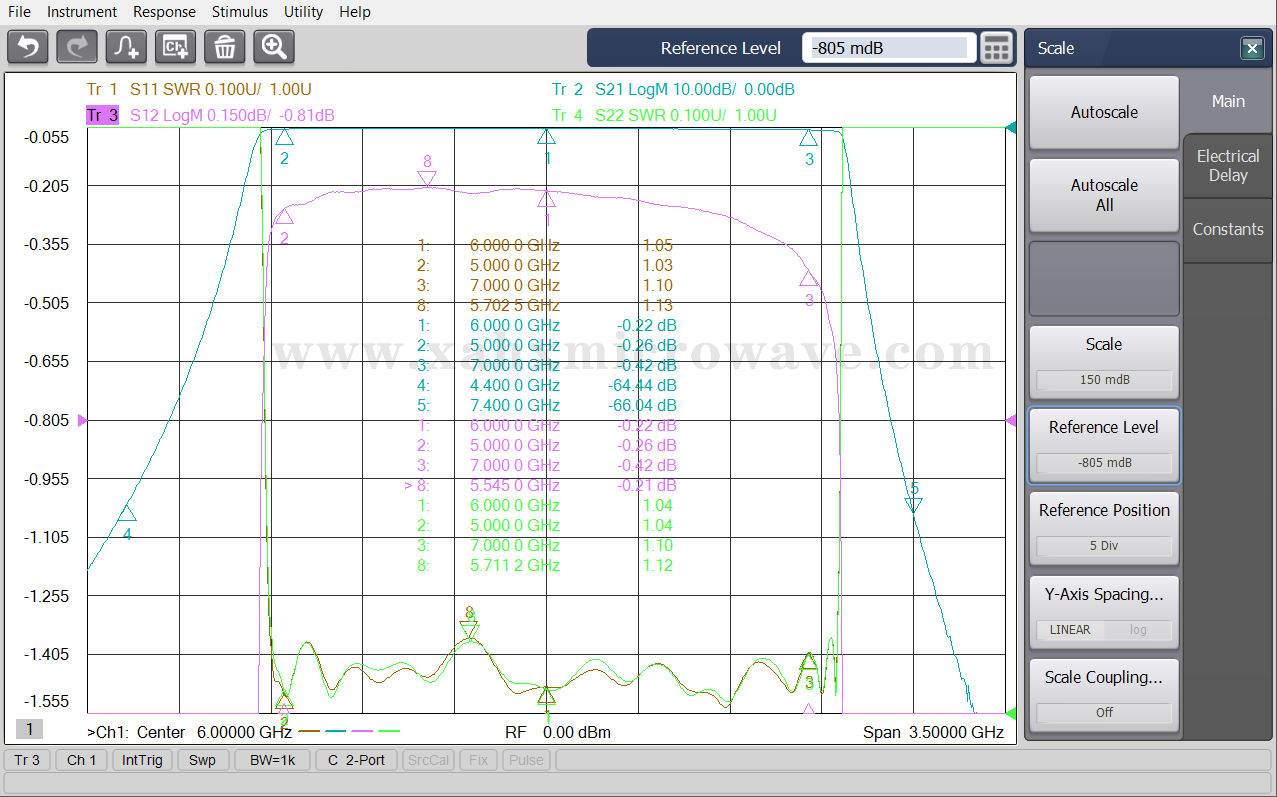

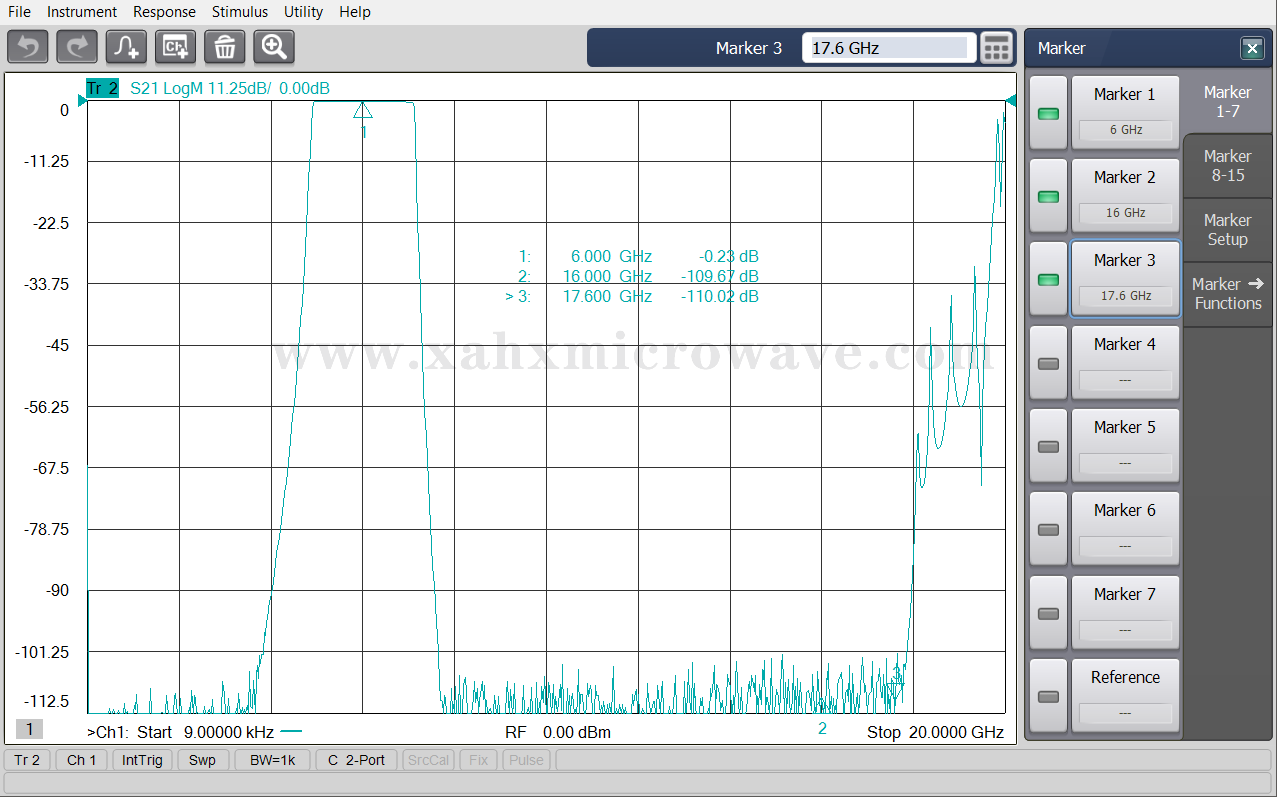

| Test Curve | |||
