| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 8460MHz | |
| ● | 3dB Bandwidth | 20MHz Max. (8450 ~ 8470MHz Max.) | |
| ● | Insertion Loss @ F0 | ≤2.0dB @ 8460MHz | |
| ● | Return Loss @ F0 | ≥18dB @ 8460MHz | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 8390MHz | ≥40dB @ 8530 ~ 12000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power | 5.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |

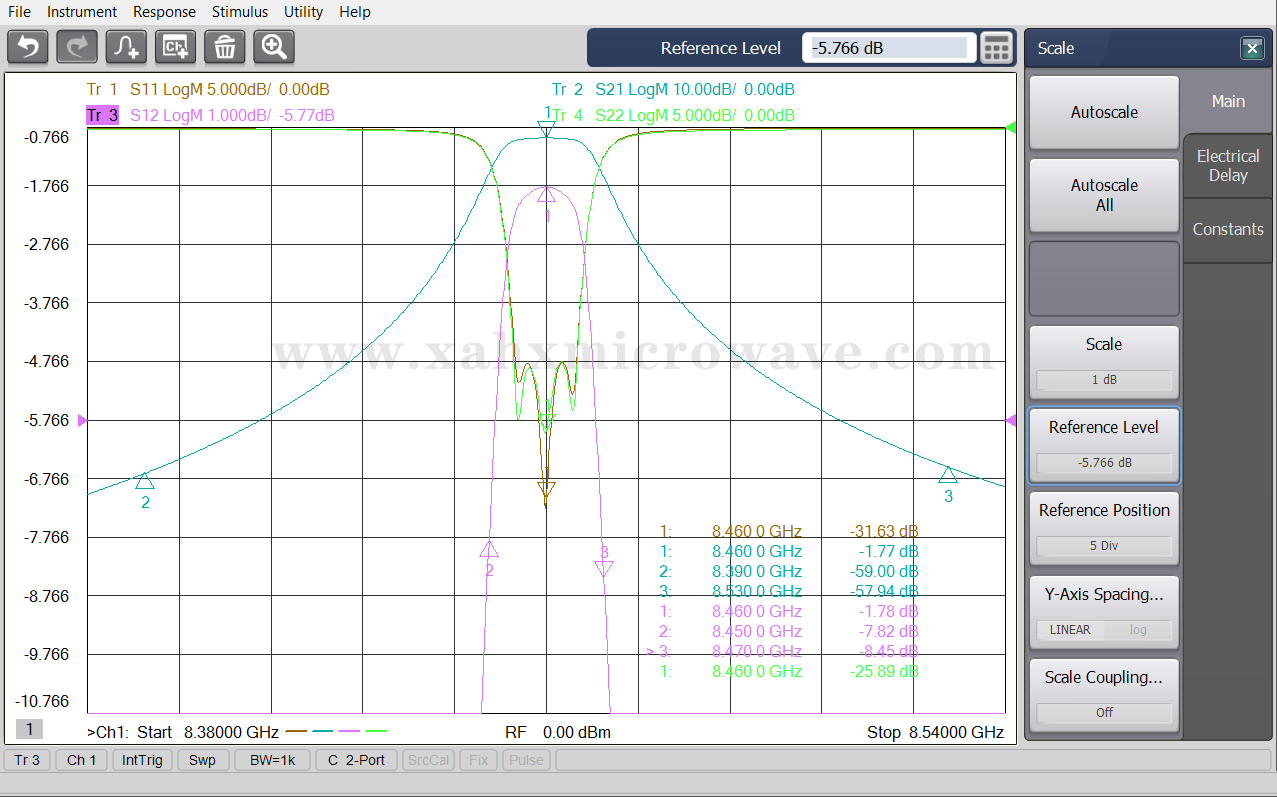

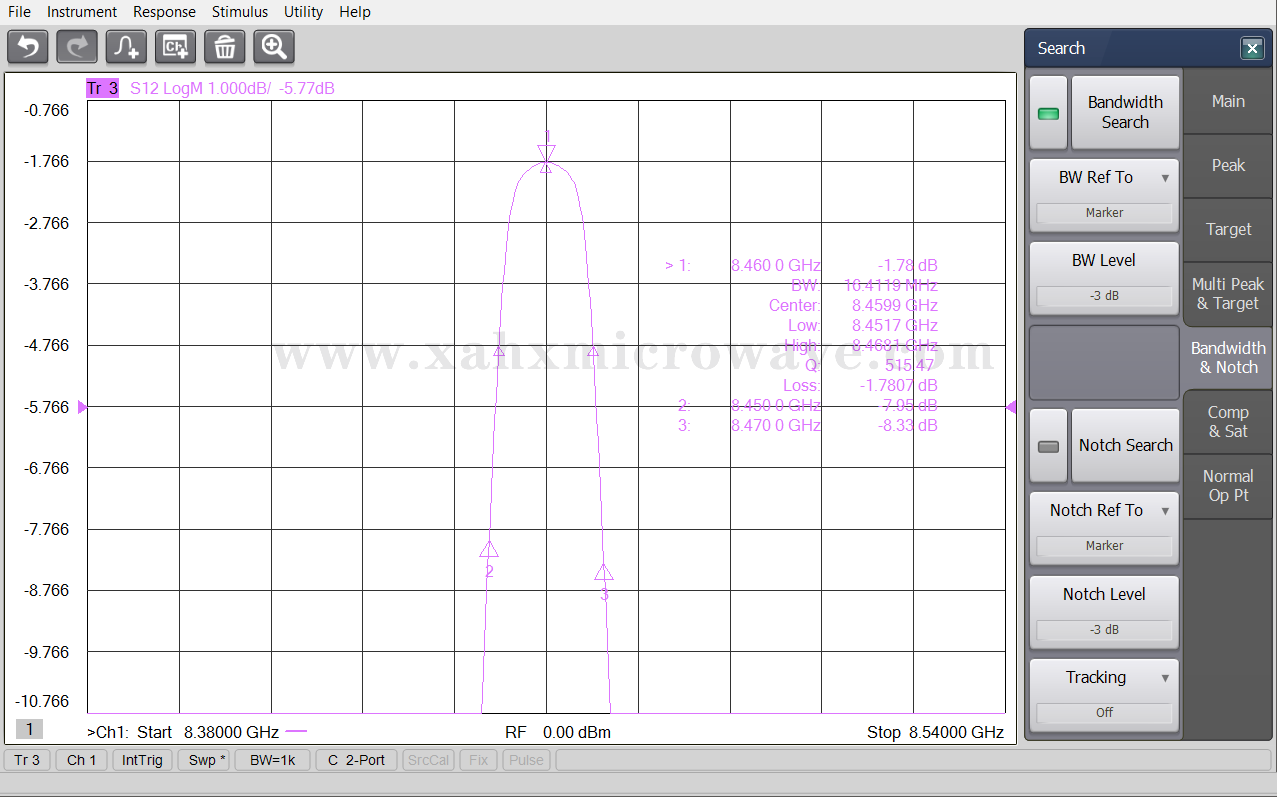

| Test Curve | |||
