LC Band Pass Filter

  • 1395-1405MHz LC Band Pass Filter
1395-1405MHz LC Band Pass Filter

1395-1405MHz LC Band Pass Filter

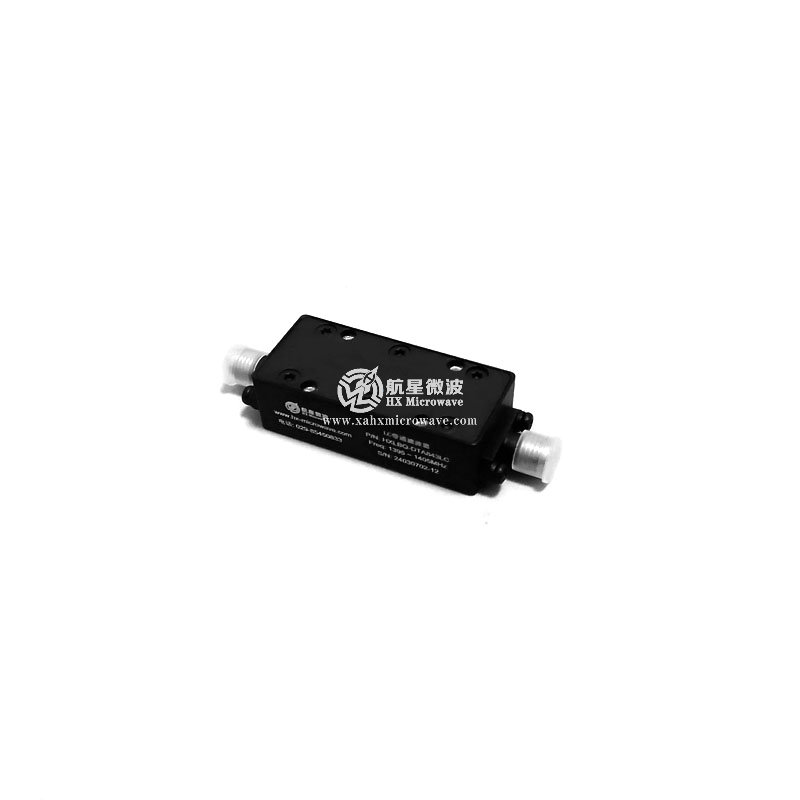

  • P/N:HXLBQ-DTA843LC
  • Pass Band Frequency:1395-1405MHz
  • Stop Band Rejection:≥25dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

LC Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1400MHz

2

Pass Band Bandwidth

10MHz (1395 ~ 1405MHz)

3

Pass Band Insertion Loss

≤3.5dB

4

Pass Band Ripple

≤0.3dB

5

Pass Band VSWR

≤1.4:1

6

Stop Band Rejection

≥25dB @ DC ~ 1300MHz

≥25dB @ 1500 ~ 3000MHz

7

Impedance

50 Ohms

8

Power Handling

1.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black
