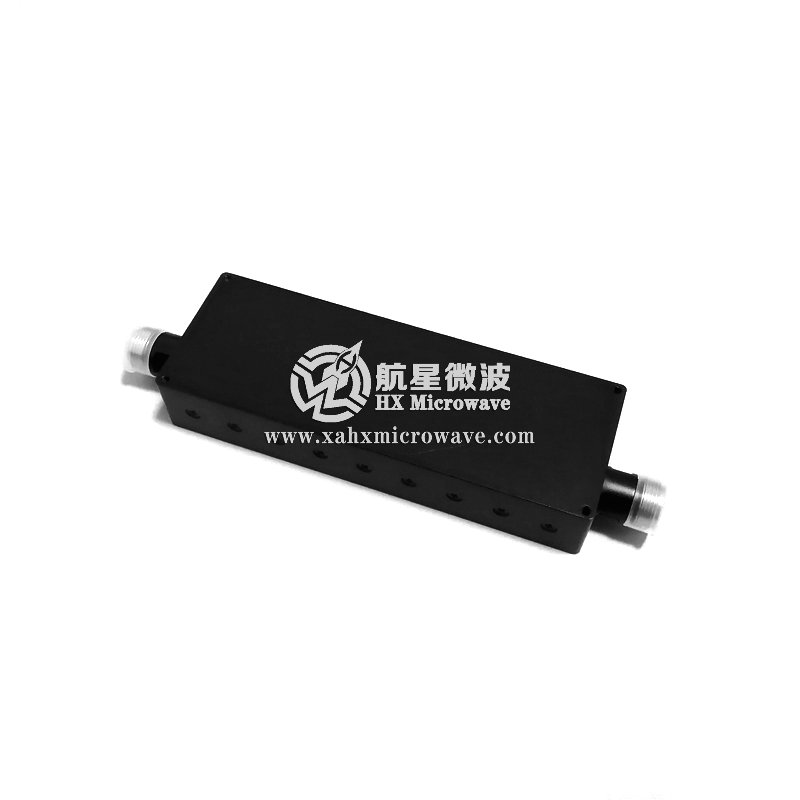

  • 1020-1100MHz Cavity Band Pass Filter
1020-1100MHz Cavity Band Pass Filter

1020-1100MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA616
  • Pass Band Frequency:1020-1100MHz
  • Stop Band Attenuation:≥50dB
  • Connectors:N-Female
  • Product description:
  • PDF technical index download

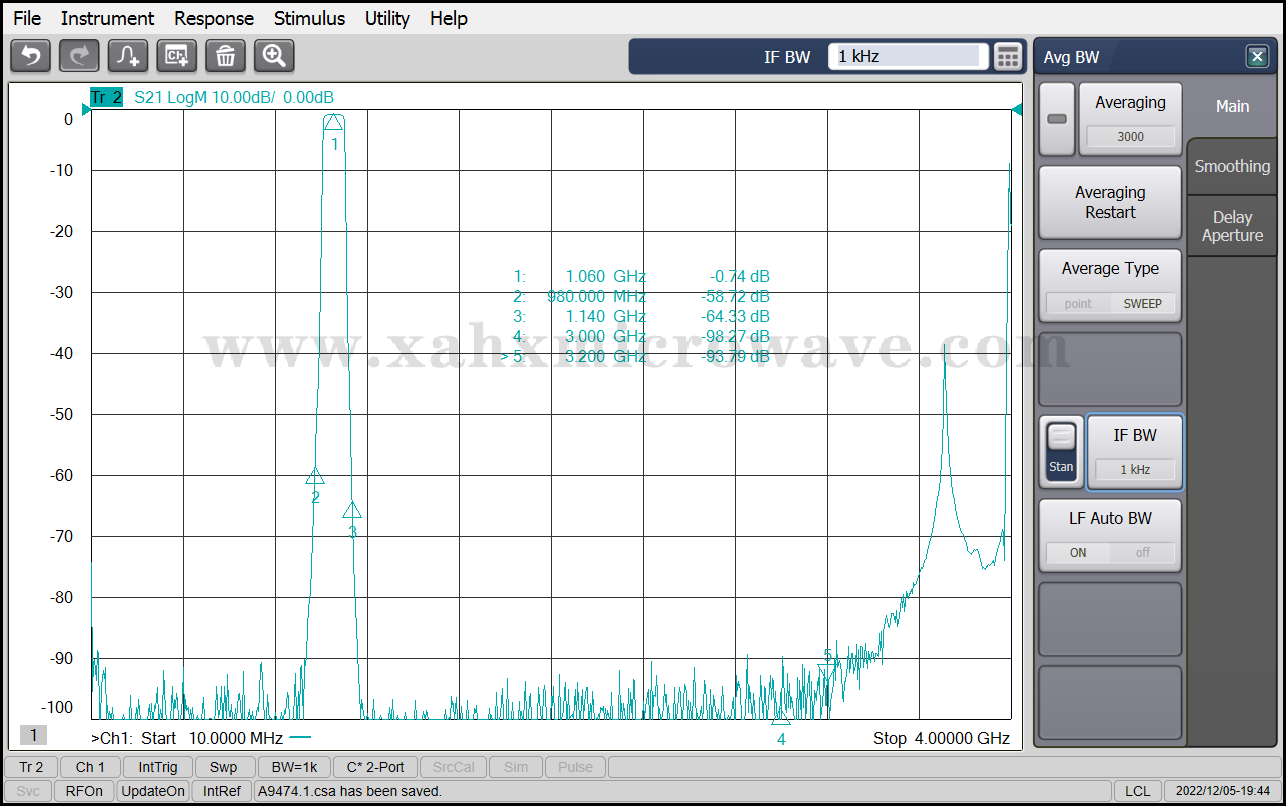

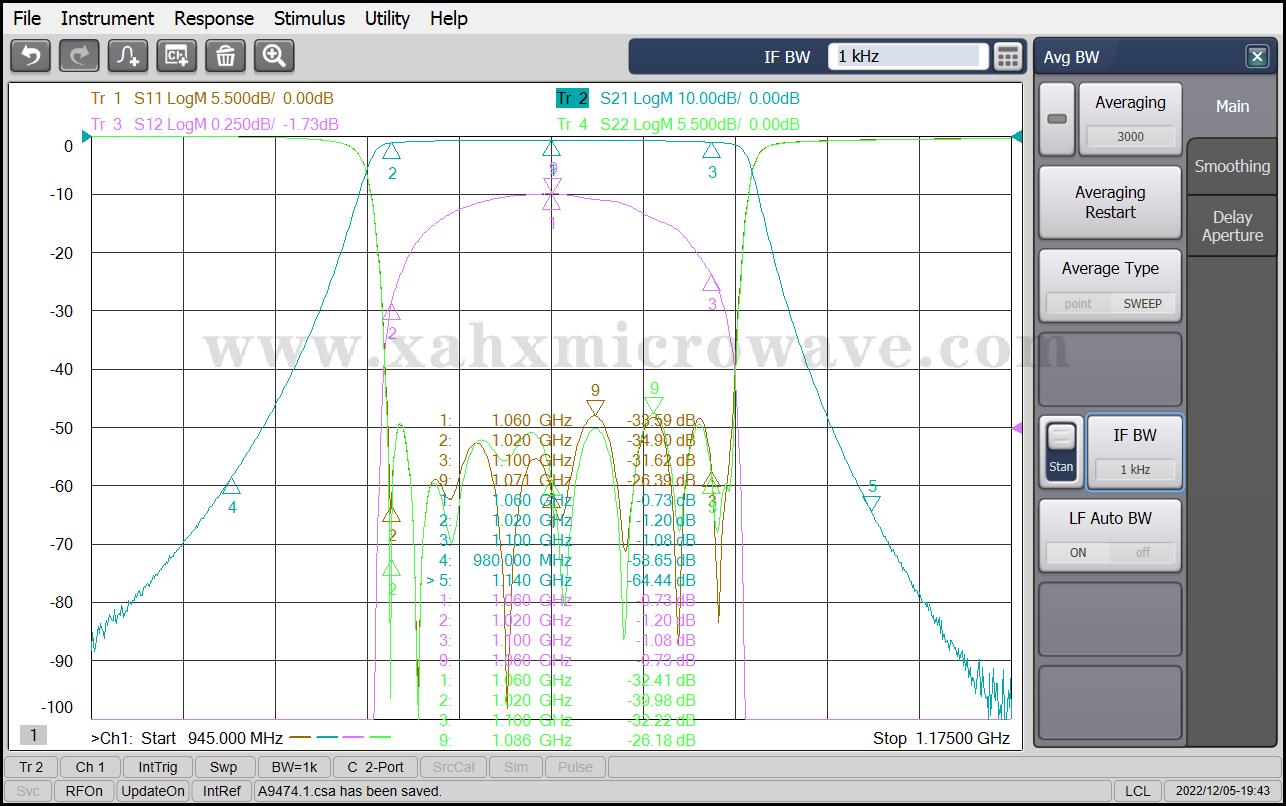

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

1060MHz

2

Pass Band Frequency

1020 ~ 1100MHz

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band Ripple

≤0.5dB

5

Pass Band Return Loss

≥23dB

6

Stop Band Rejection

≥50dB @ DC ~ 980MHz

≥50dB @ 1140 ~ 3000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

N-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
