Technical Data Sheet
●	Center Frequency(F0)	4185MHz
●	Pass Band Frequency	4184.5 ~ 4185.5MHz
●	Pass Band Insertion Loss	≤4.5dB
●	Pass Band Ripple	≤0.3dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥50dB @ DC ~ 4159.5MHz	≥50dB @ 4210.5 ~ 8000MHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	+15℃ ~ +30℃

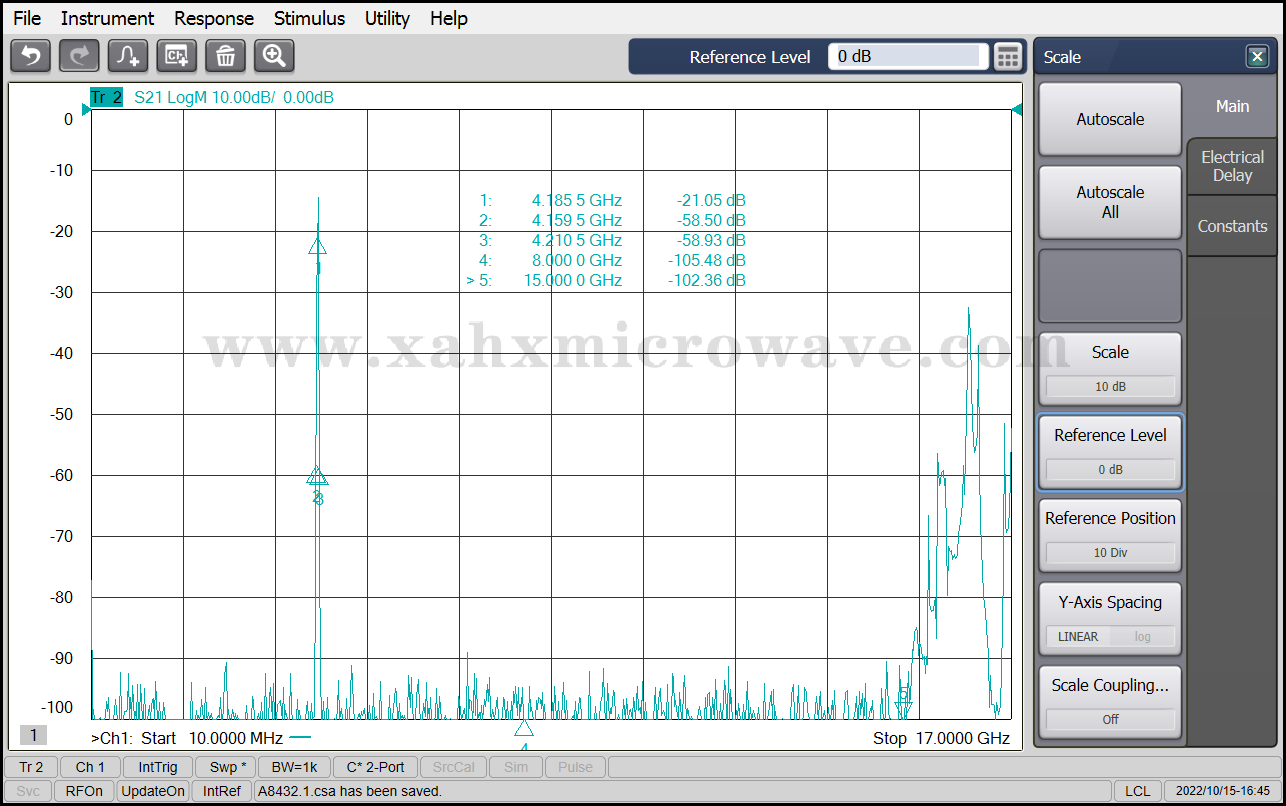

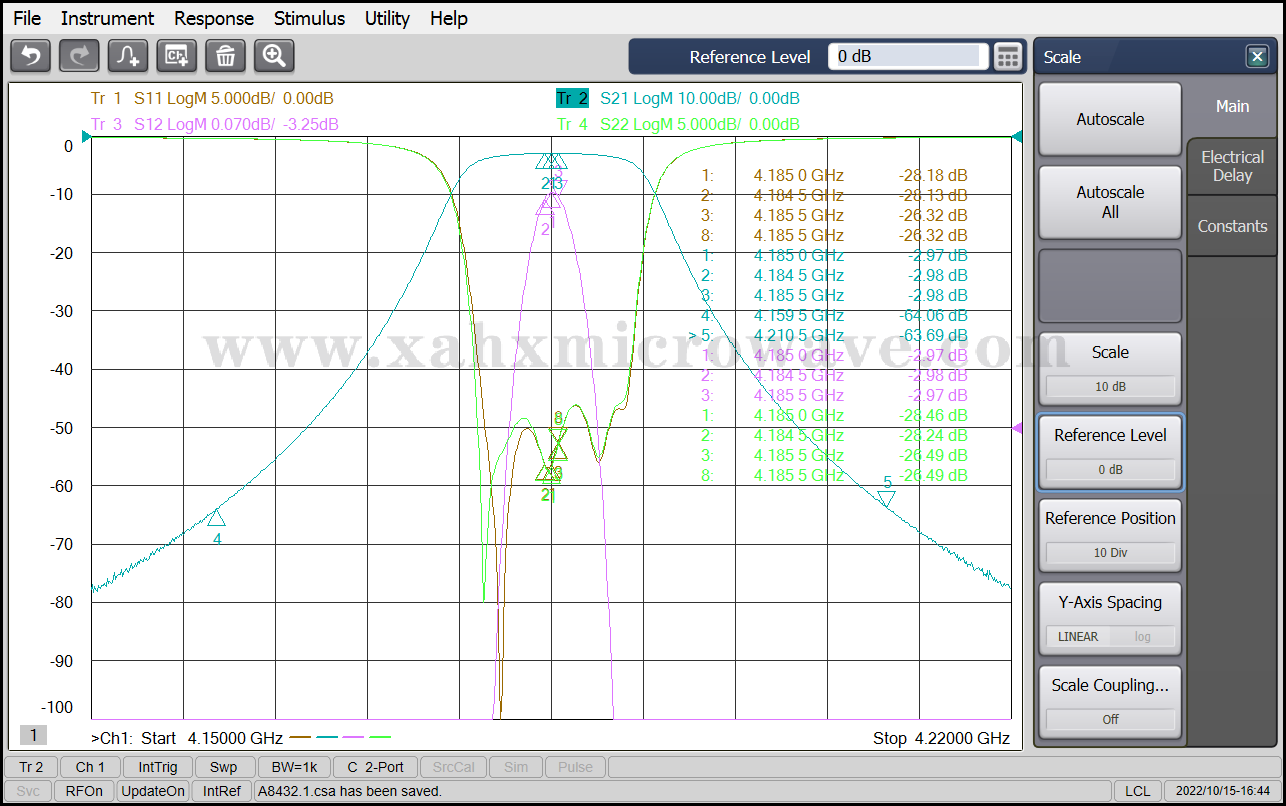

Test Curve
