Band Pass Filter

  • 2600-3850MHz Comb Band Pass Filter
2600-3850MHz Comb Band Pass Filter

2600-3850MHz Comb Band Pass Filter

  • P/N:HXLBQ-DTA590
  • Pass Band Frequency:2600-3850MHz
  • Pass Band Insertion Loss:≤1.0dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Comb Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

3225MHz

2

Pass Band Bandwidth

1250MHz (2600 ~ 3850MHz)

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

0.6dB

5

Pass Band Return Loss

20dB

6

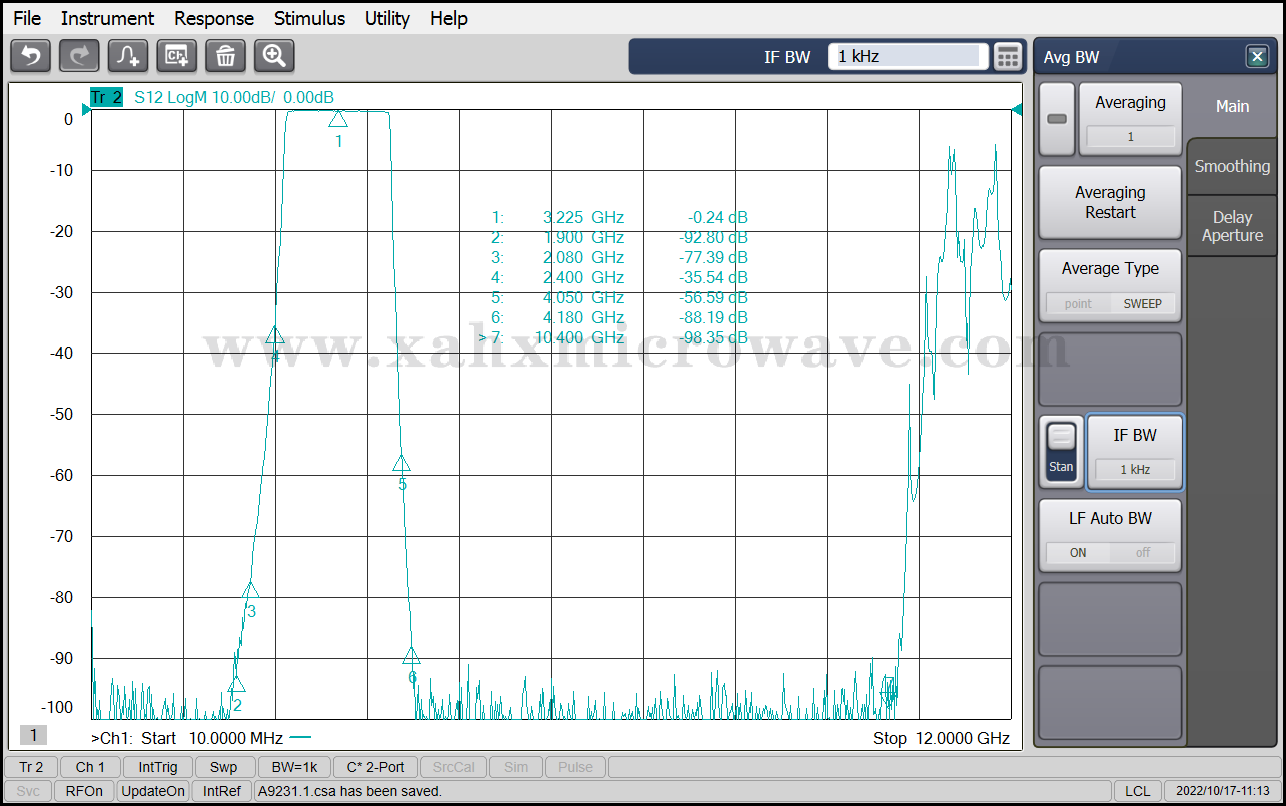

Stop Band Rejection

≥80dB @ DC ~ 1900MHz

≥65dB @ 1900 ~ 2080MHz

≥30dB @ 2080 ~ 2400MHz

≥40dB @ 4050 ~ 4180MHz

≥80dB @ 4180 ~ 9000MHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
