Band Pass Filter

  • 2490-2510MHz Cavity Band Pass Filter
2490-2510MHz Cavity Band Pass Filter

2490-2510MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA589
  • Pass Band Frequency:2490-2510MHz
  • Stop Band Attenuation:≥50dB
  • Stop Band Attenuation:≥50dB
  • Product description:
  • PDF technical index download

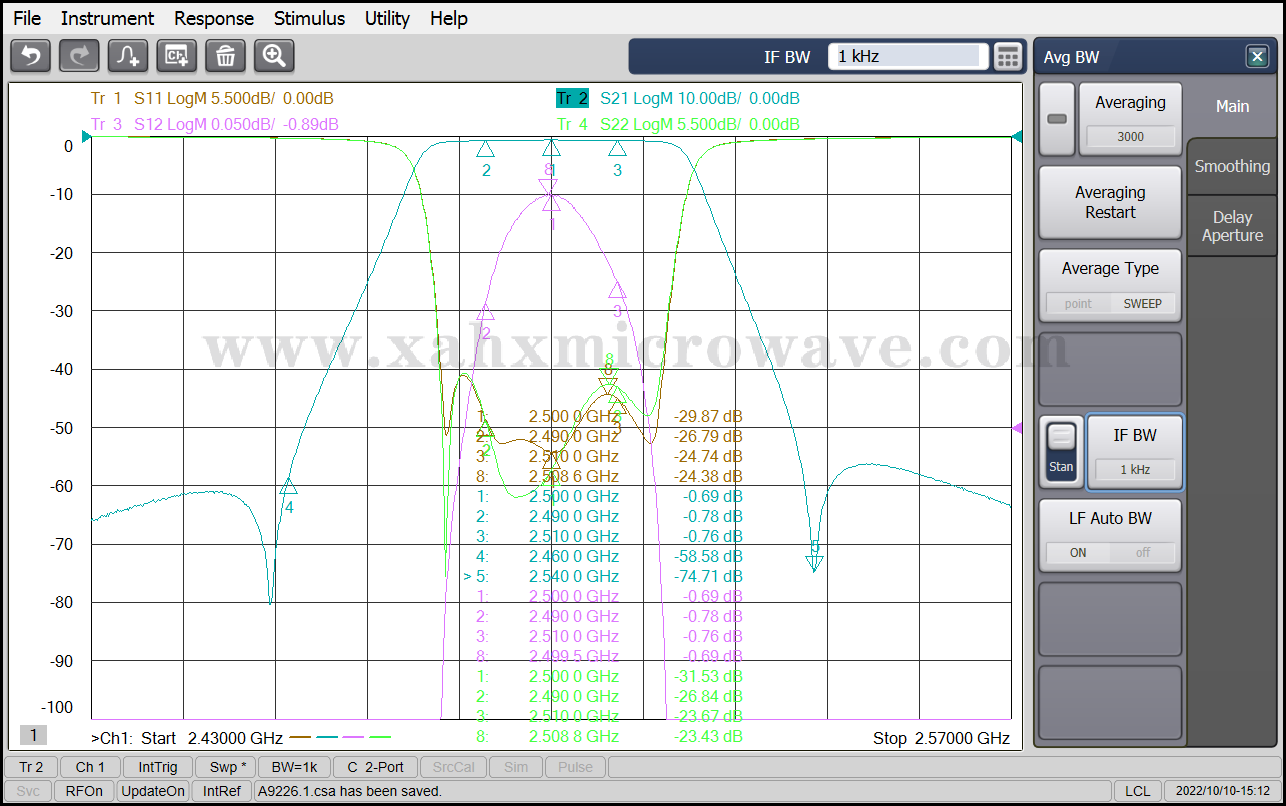

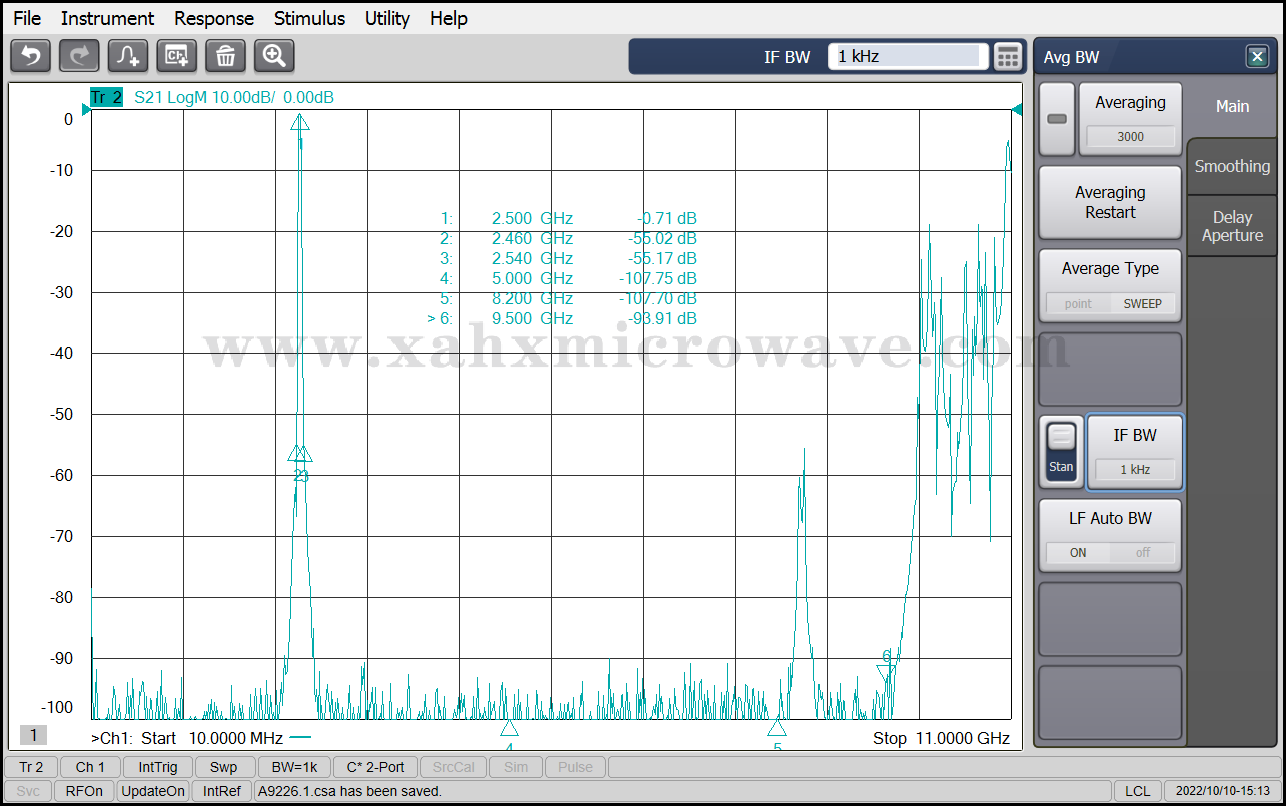

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2500MHz

2

Pass Band Frequency

2490 ~ 2510MHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.2dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

≥50dB @ DC ~ 2460MHz

≥50dB @ 2540 ~ 5000MHz

7

Impedance

50 Ohms

8

Power Handling

50W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
