  • 4250-4350MHz Cavity Band Pass Filter
4250-4350MHz Cavity Band Pass Filter

4250-4350MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA585
  • Pass Band Frequency:4250-4350MHz
  • Stop Band Attenuation:≥55dB
  • Connectors:N-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

4300MHz

2

Pass Band Frequency

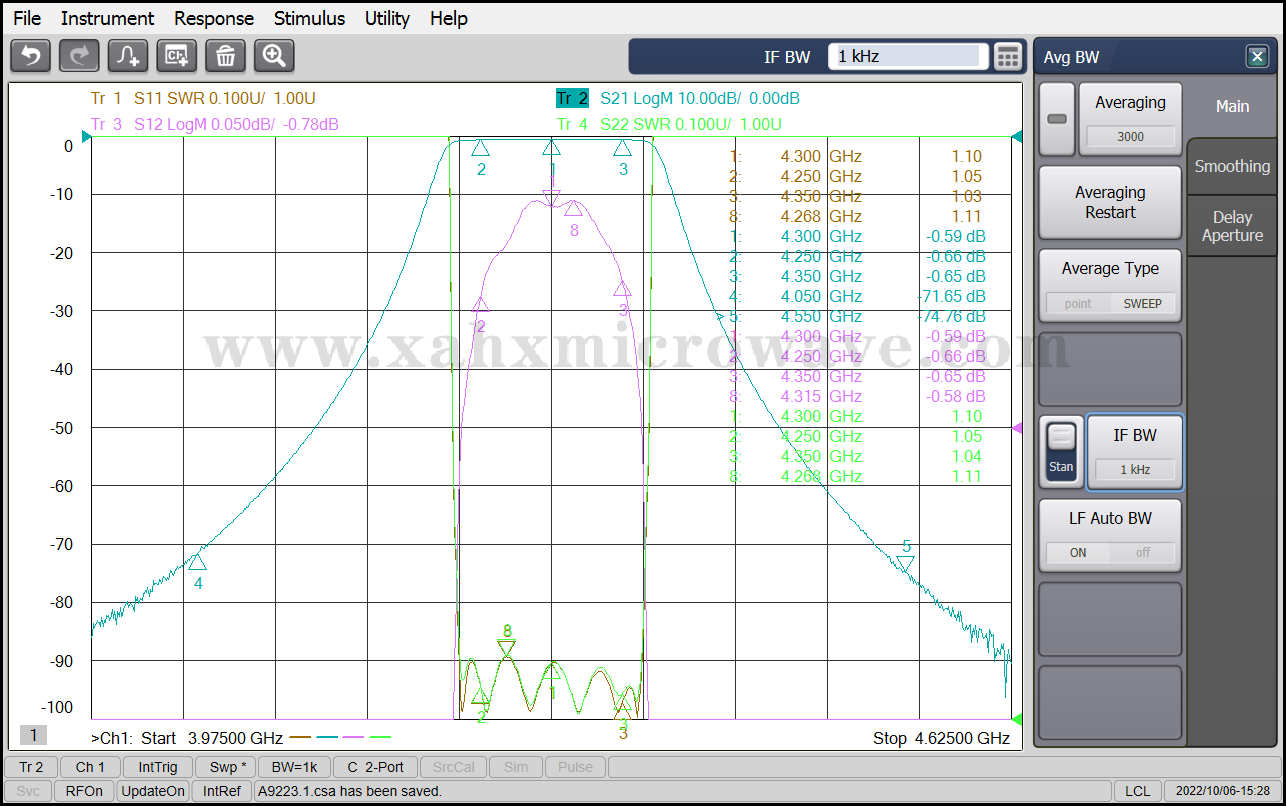

4250 ~ 4350MHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

≤0.3dB

5

Pass Band VSWR

≤1.2:1

6

Stop Band Rejection

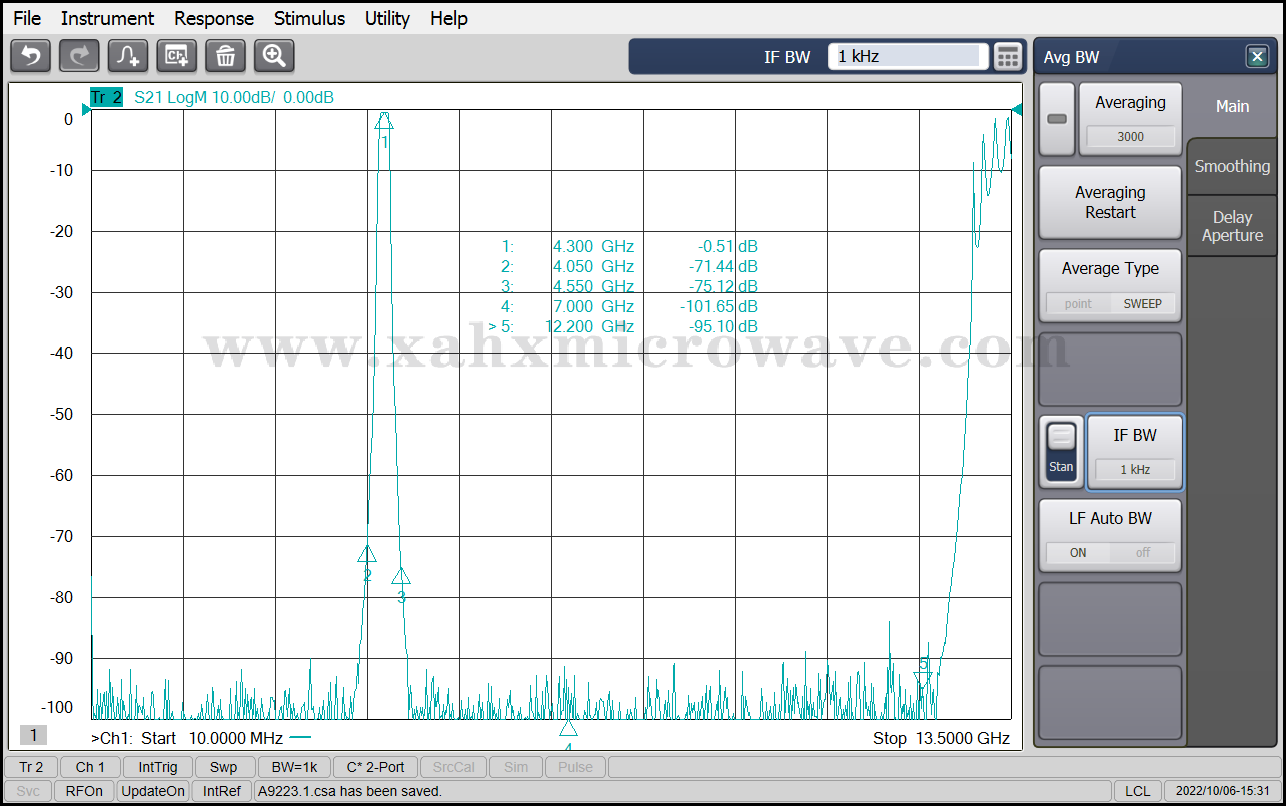

≥55dB @ DC ~ 4050MHz

≥55dB @ 4550 ~ 7000MHz

7

Impedance

50 Ohms

8

Power Handling

50W Max.

9

Connectors

N-Female

10

Surface Finish

Painted Black
