Technical Data Sheet
●	Center Frequency(F0)	1550MHz
●	Pass Band Frequency	1500 ~ 1600MHz
●	Pass Band Insertion Loss	≤1.2dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band VSWR	≤1.2:1
●	Stop Band Rejection	≥55dB @ DC ~ 1425MHz	≥55dB @ 1675 ~ 5000MHz
●	Impedance	50 Ohms
●	Power Handling	50W Max.
●	Connectors	N-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

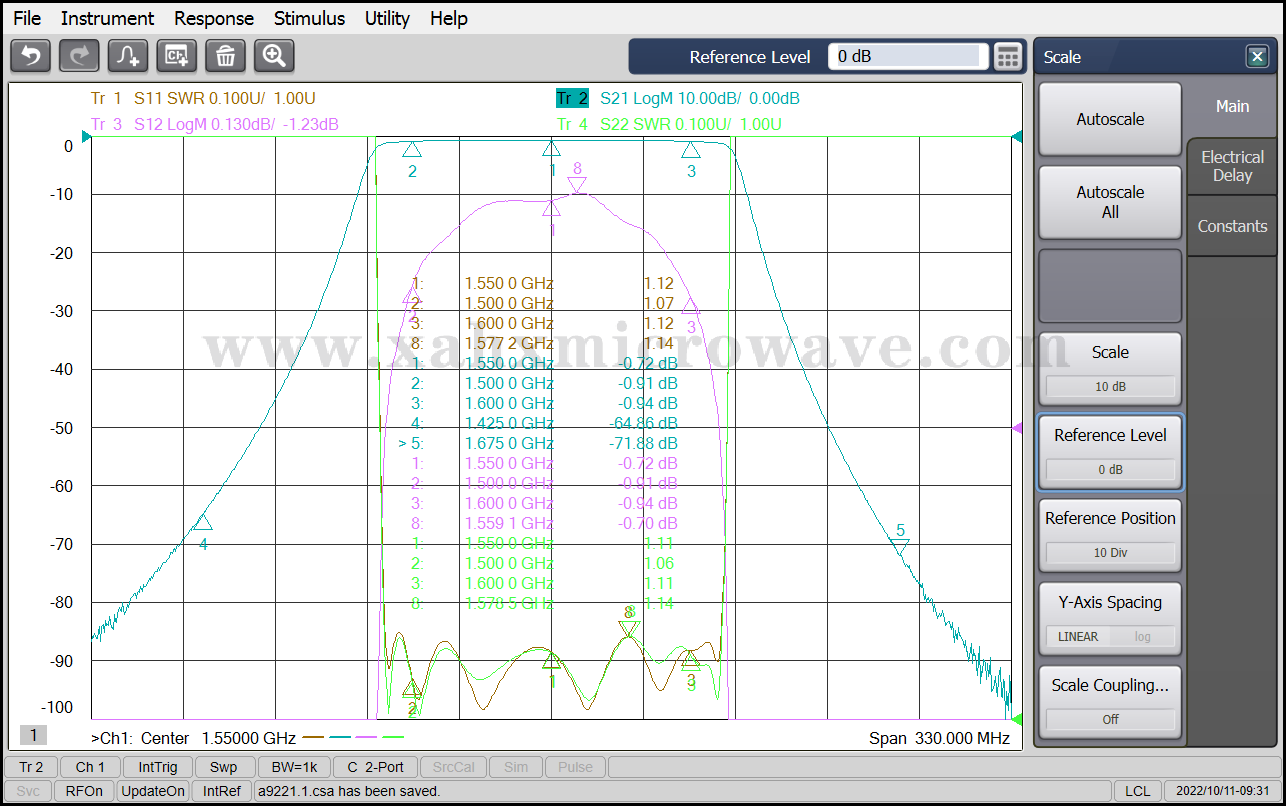

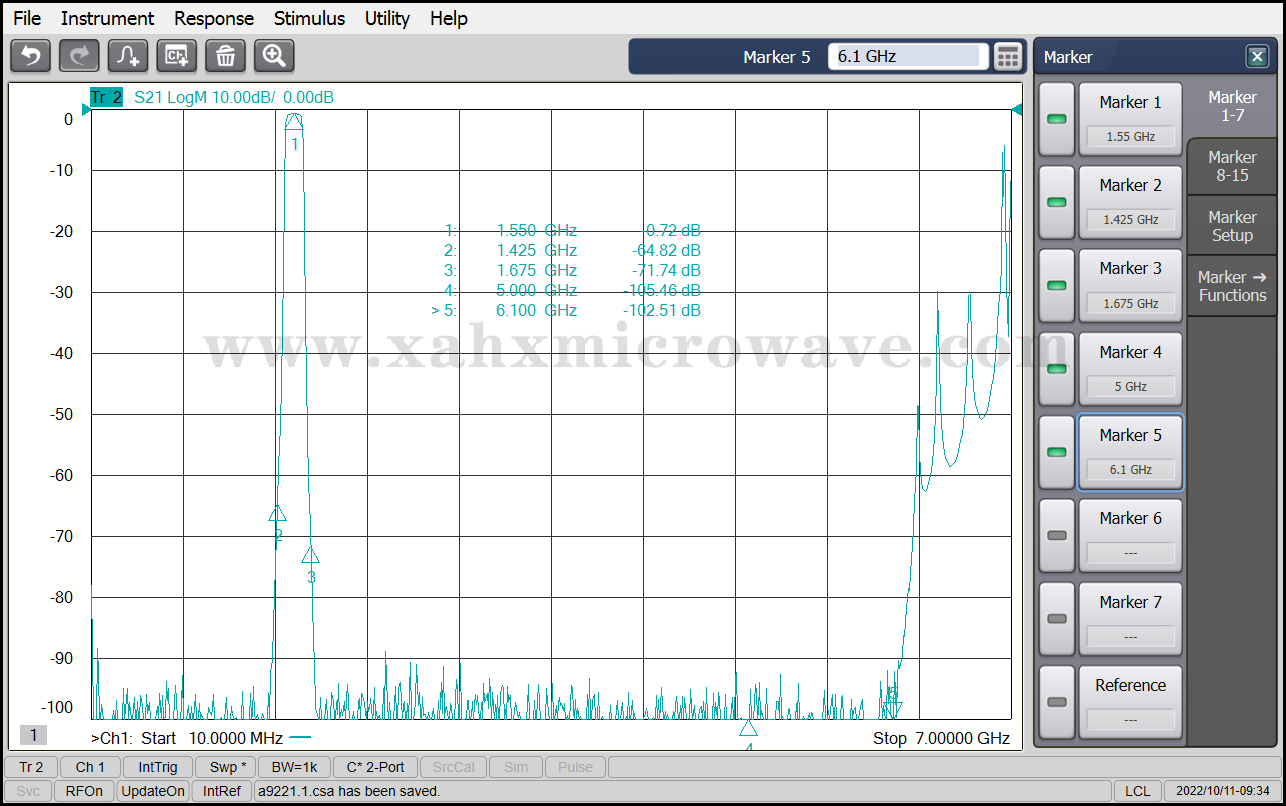

Test Curve
