Technical Data Sheet
●	Center Frequency(F0)	3320MHz
●	Pass Band Frequency	3315 ~ 3325MHz
●	Pass Band Insertion Loss	≤0.6dB
●	Pass Band Ripple	≤0.15dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥30dB @ DC ~ 3235MHz	≥30dB @ 3405 ~ 7000MHz
●	Impedance	50 Ohms
●	Power Handling	20W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black
●	Temperature Range	-30℃ ~ +70℃

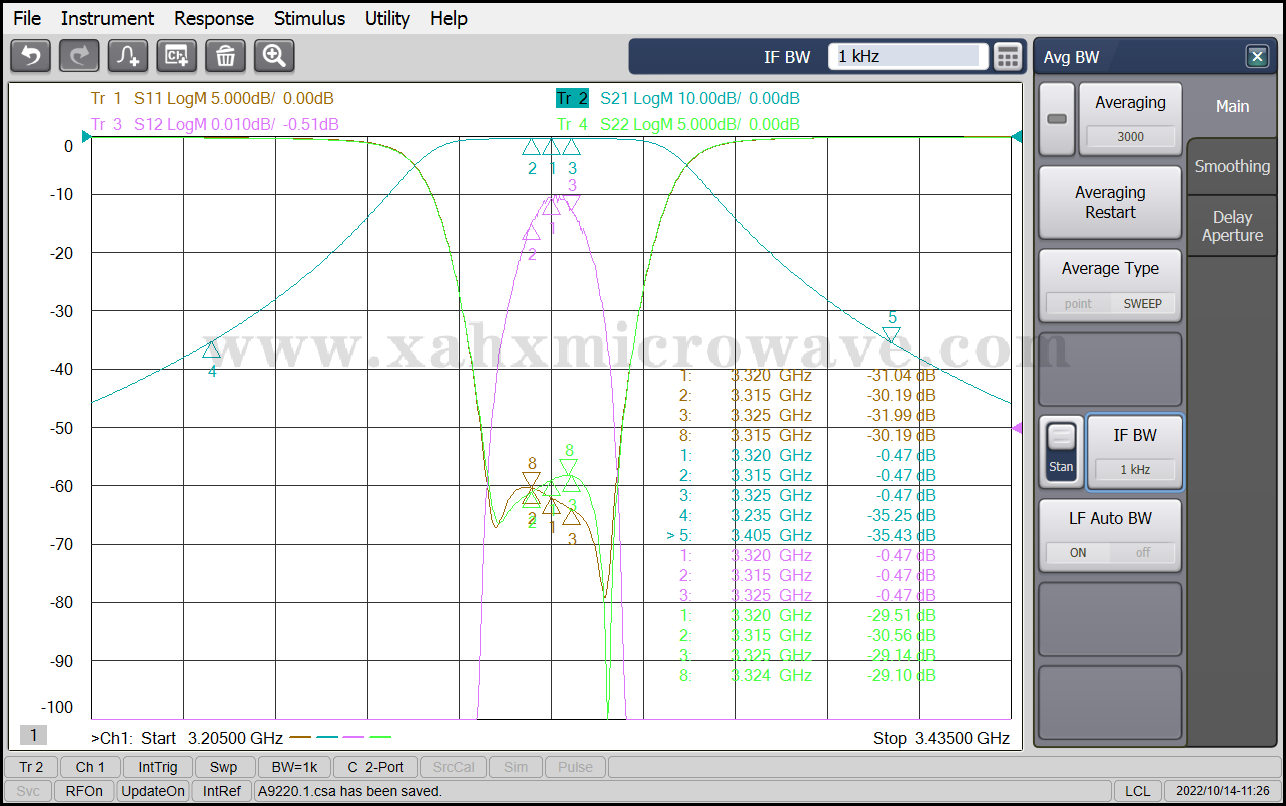

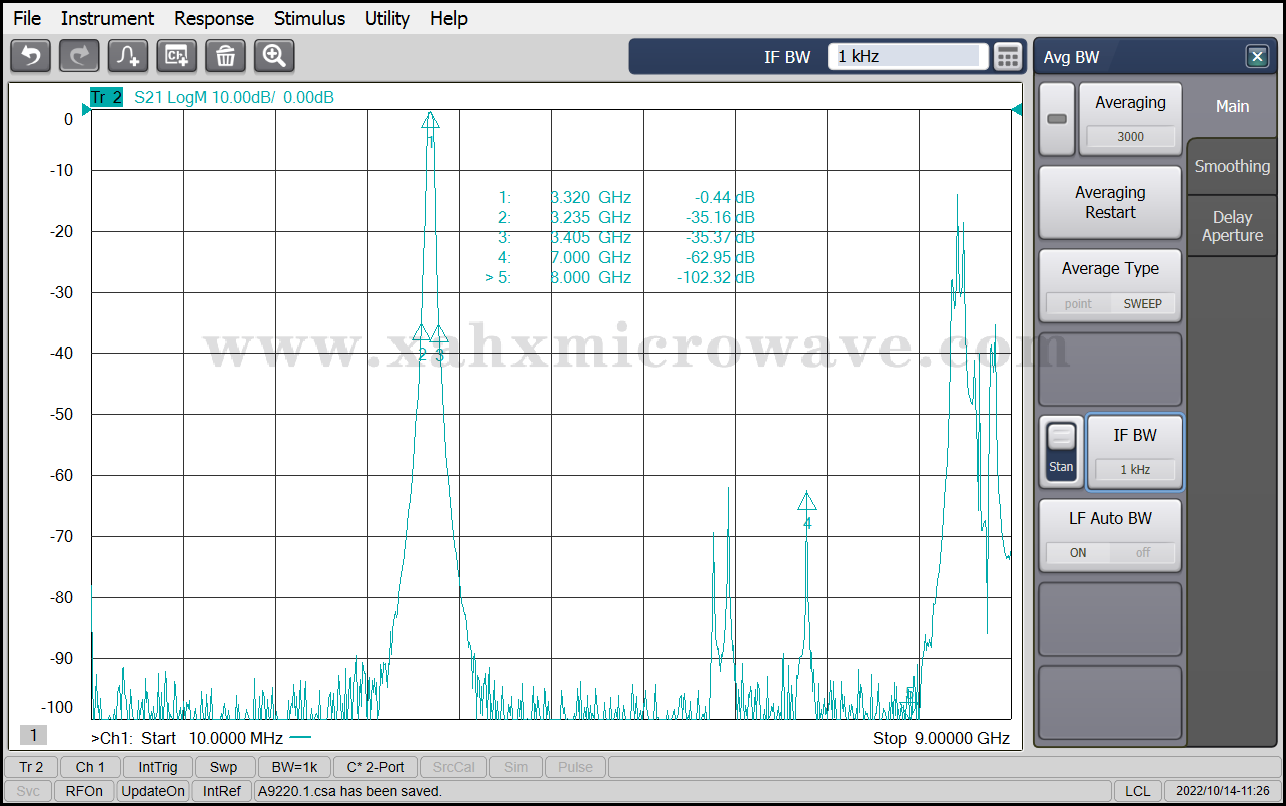

Test Curve
