  • 2725-2735MHz Cavity Band Pass Filter
2725-2735MHz Cavity Band Pass Filter

2725-2735MHz Cavity Band Pass Filter

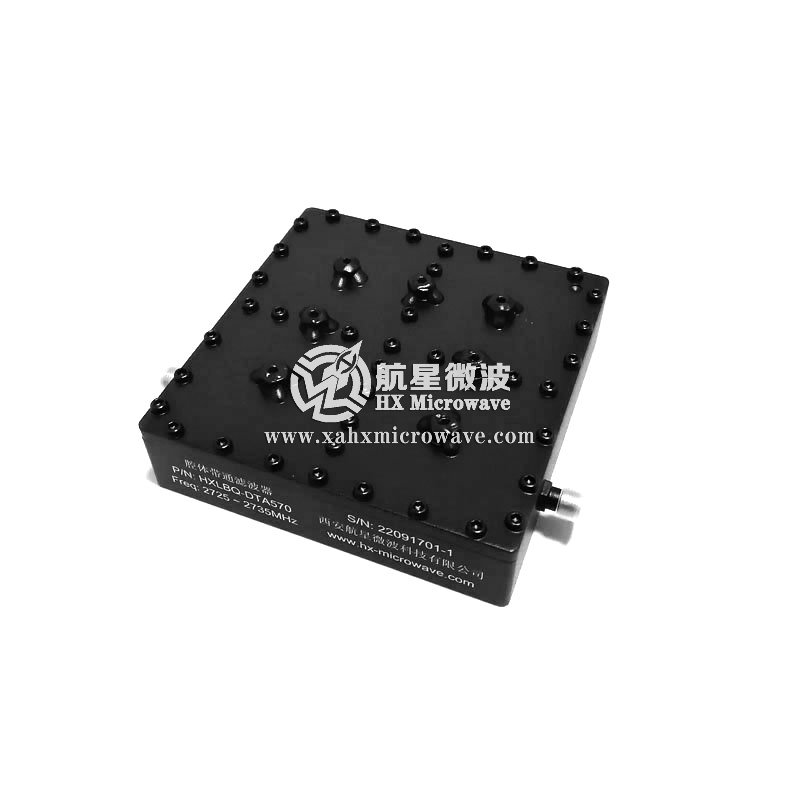

  • P/N:HXLBQ-DTA570
  • Pass Band Frequency:2725-2735MHz
  • Stop Band Attenuation:≥30dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

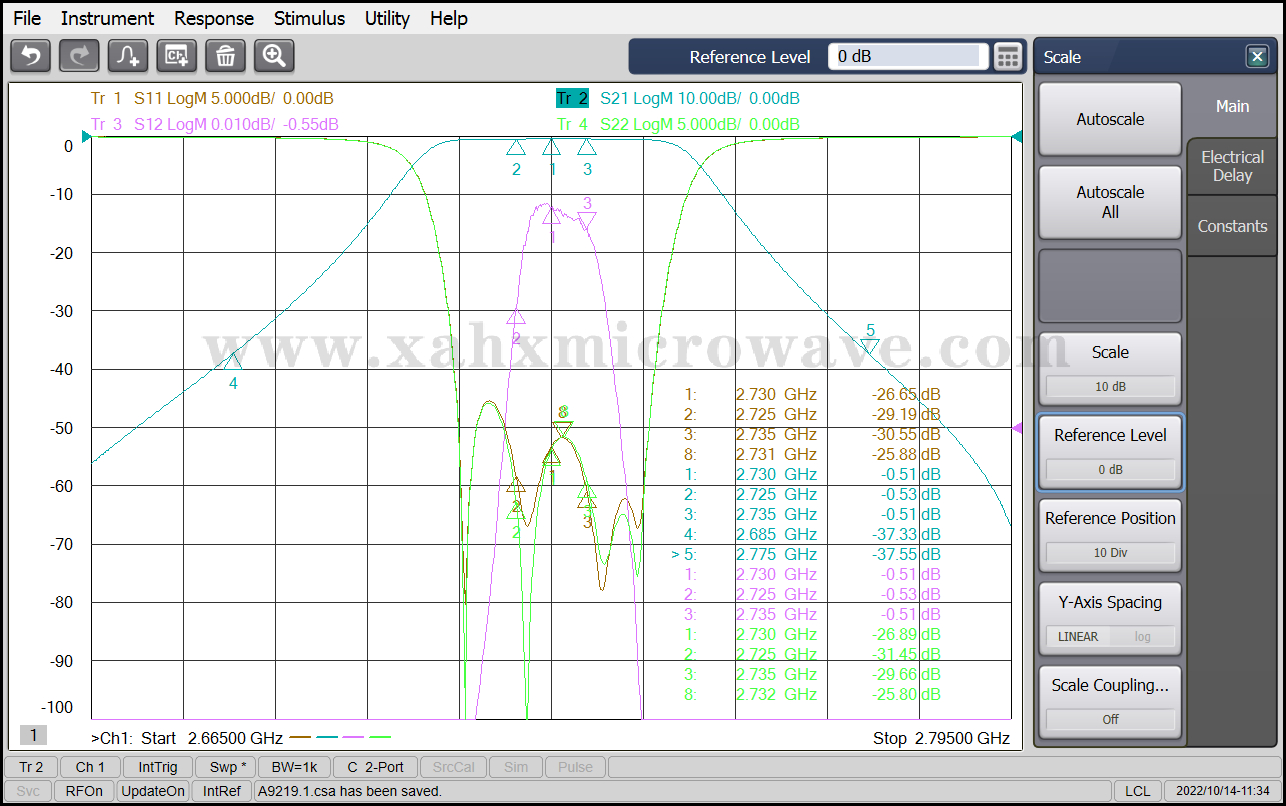

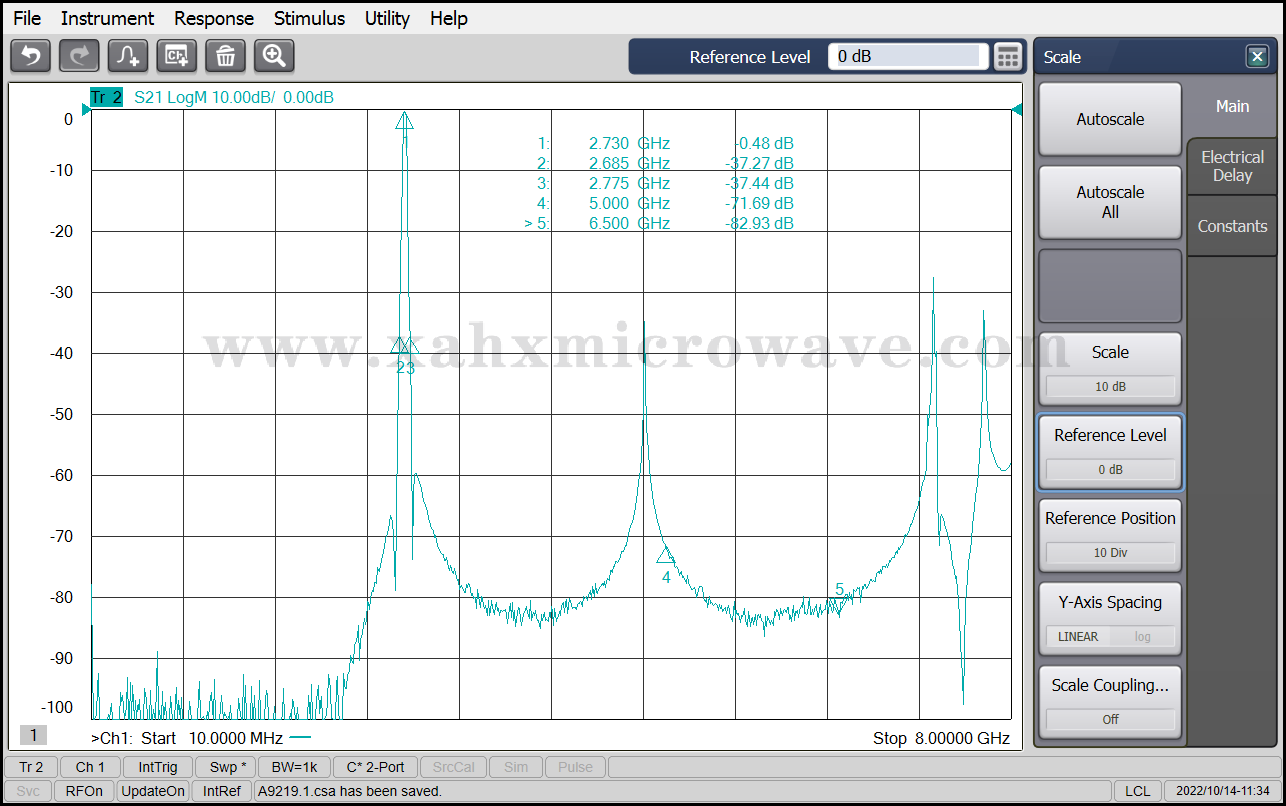

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2730MHz

2

Pass Band Frequency

2725 ~ 2735MHz

3

Pass Band Insertion Loss

≤0.6dB

4

Pass Band Ripple

0.15dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

≥30dB @ DC ~ 2685MHz

≥30dB @ 2775 ~ 5000MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70
