  • 2200-2210MHz Cavity Band Pass Filter

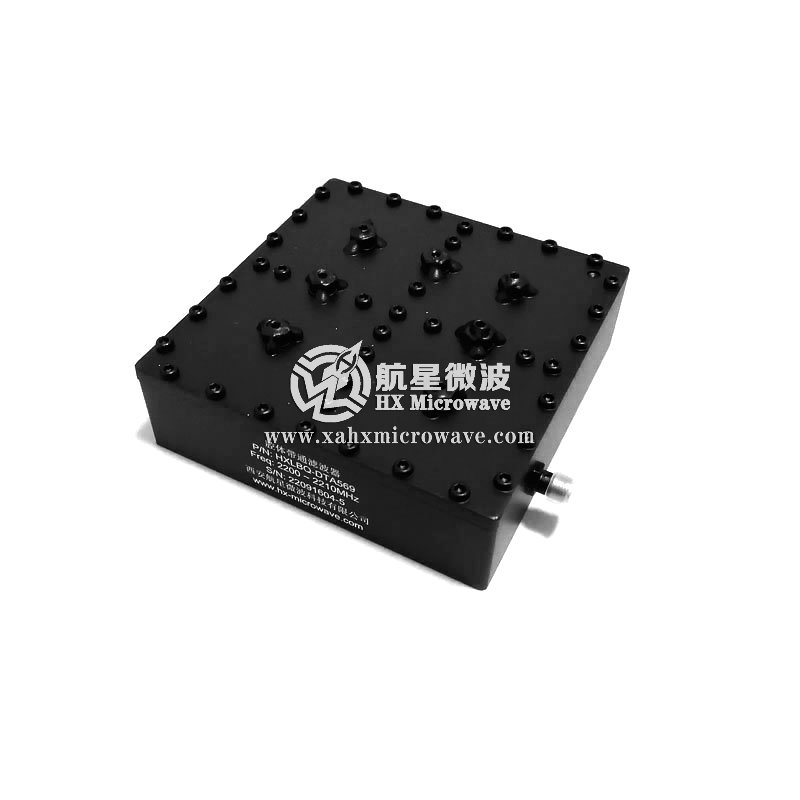

2200-2210MHz Cavity Band Pass Filter

2200-2210MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA569
  • Pass Band Frequency:2200-2210MHz
  • Stop Band Attenuation:≥30dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2205MHz

2

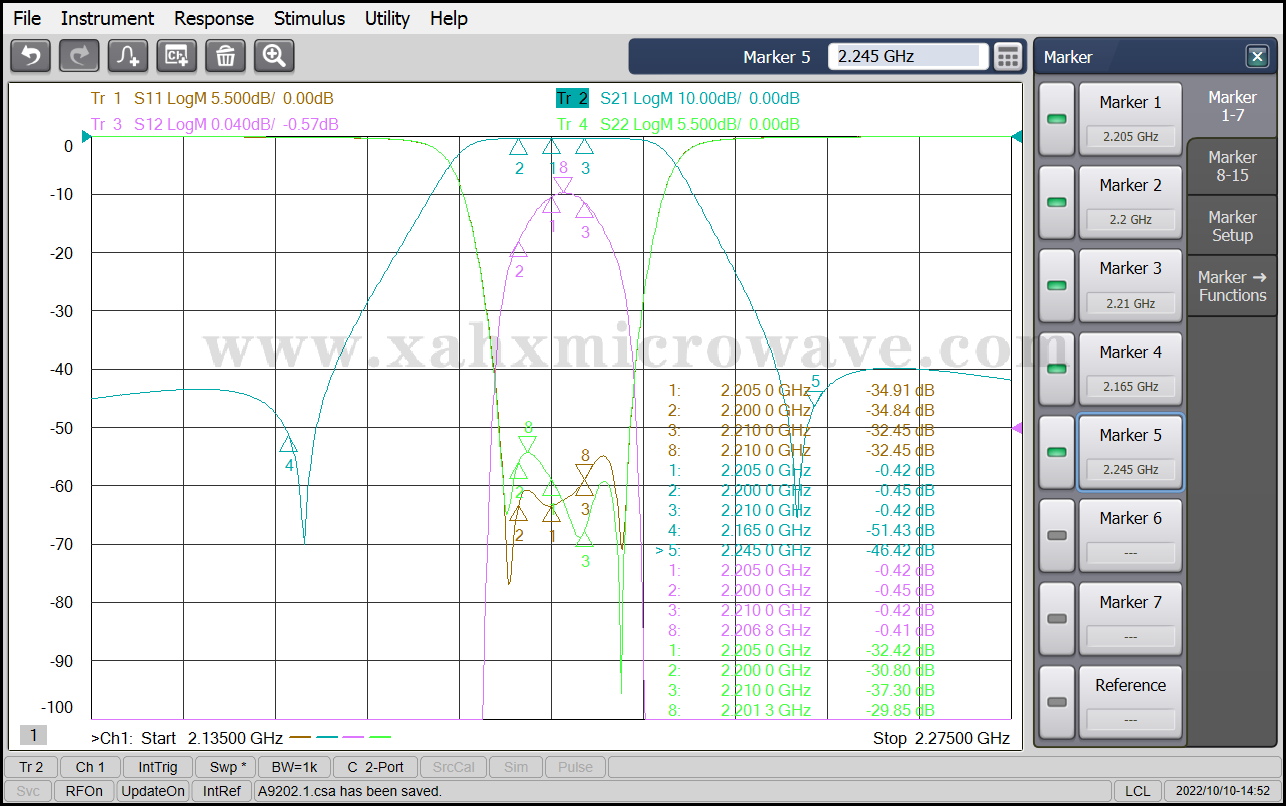

Pass Band Frequency

2200 ~ 2210MHz

3

Pass Band Insertion Loss

≤0.6dB

4

Pass Band Ripple

0.2dB

5

Pass Band Return Loss

≥20dB

6

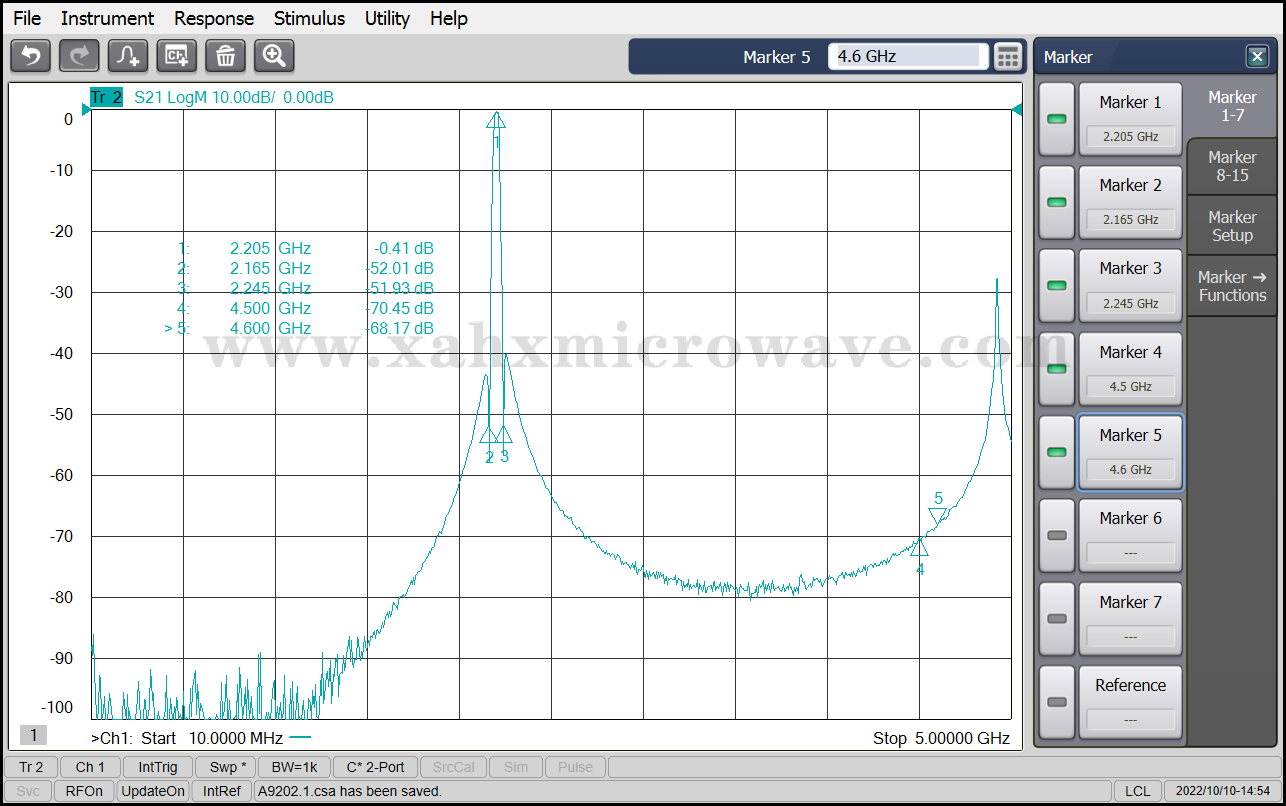

Stop Band Rejection

≥30dB @ DC ~ 2165MHz

≥30dB @ 2245 ~ 4500MHz

7

Impedance

50 Ohms

8

Power Handling

20W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70
