Band Pass Filter

  • 361-366MHz Cavity Band Pass Filter

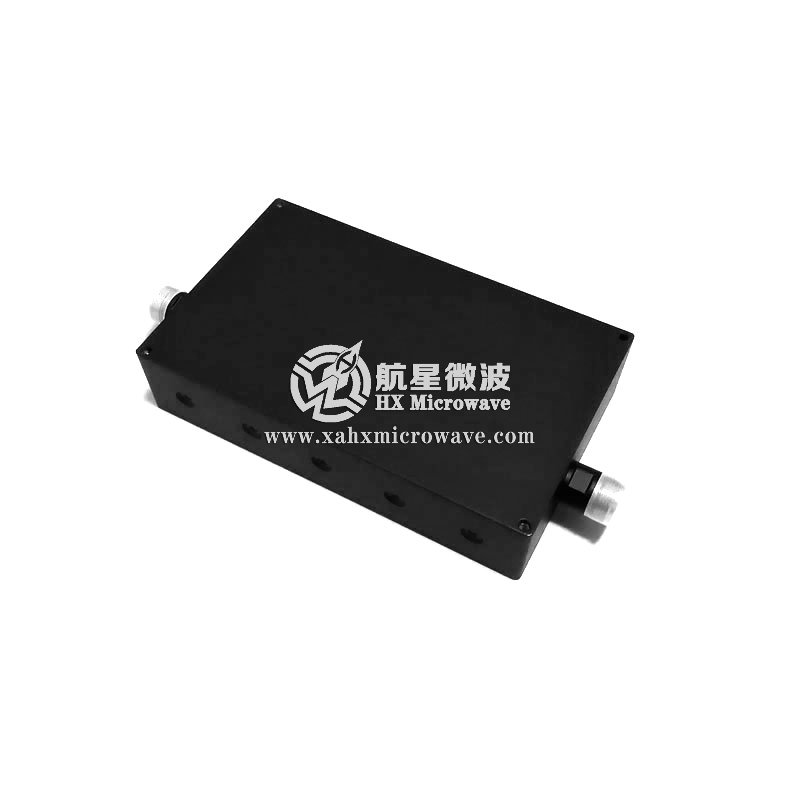

361-366MHz Cavity Band Pass Filter

361-366MHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA567
  • Pass Band Frequency:361-366MHz
  • Stop Band Attenuation:≥80dB
  • Connectors:N-Female
  • Product description:
  • PDF technical index download

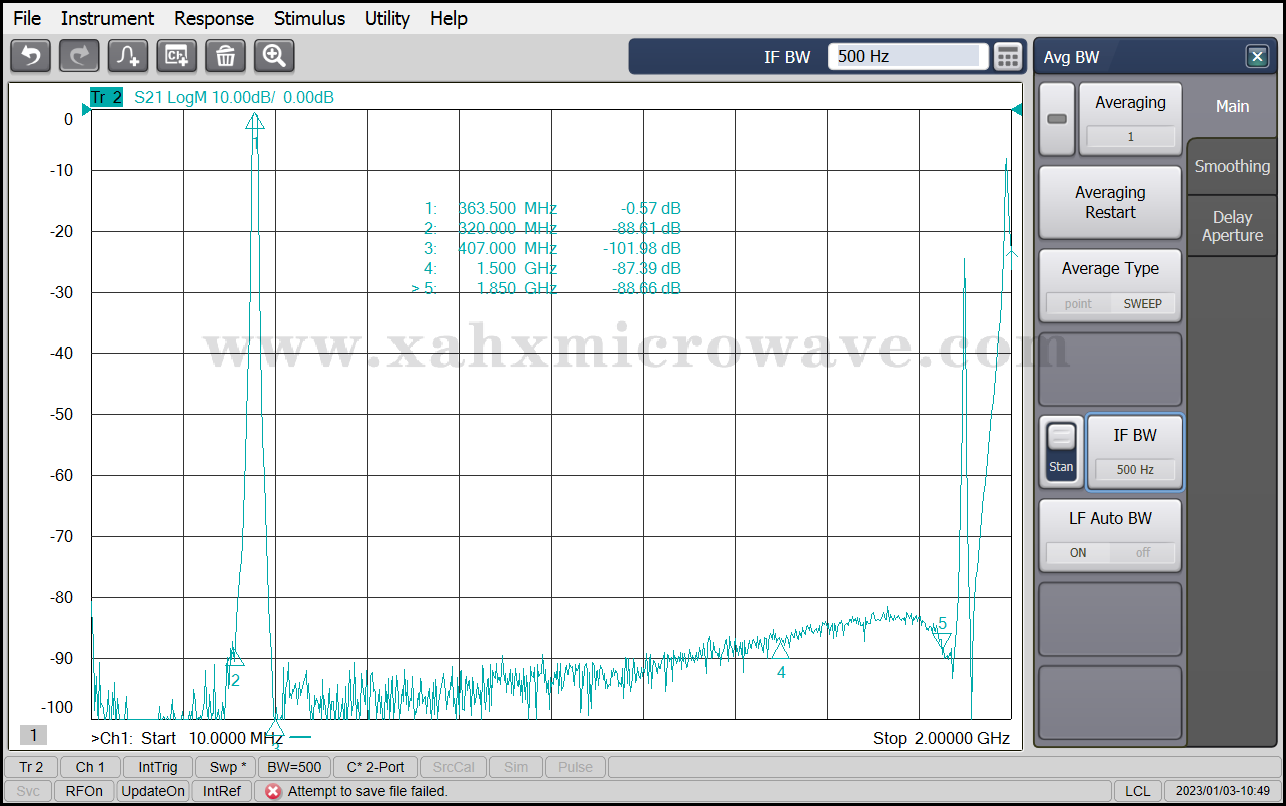

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

363.5MHz

2

Pass Band Frequency

361 ~ 366MHz

3

Pass Band Insertion Loss

≤1.0dB

4

Pass Band Ripple

0.2dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

≥80dB @ DC ~ 307MHz

≥80dB @ 420 ~ 1500MHz

7

Impedance

50 Ohms

8

Power Handling

50Max.

9

Connectors

N-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
