| Technical Data Sheet | |||
| ● | Center Frequency(F0) | 337.5MHz | |
| ● | Pass Band Frequency | 225 ~ 450MHz | |
| ● | Pass Band Insertion Loss | ≤2.0dB | |
| ● | Pass Band Ripple | ≤1.0dB | |
| ● | Pass Band Return Loss | ≥15dB | |
| ● | Stop Band Rejection | ≥40dB @ DC ~ 175MHz | ≥40dB @ 500 ~ 1000MHz |
| ● | Impedance | 50 Ohms | |
| ● | Power Handling | 1.0W Max. | |
| ● | Connectors | SMA-Female | |
| ● | Surface Finish | Painted Black | |
| ● | Temperature Range | -30℃ ~ +70℃ | |

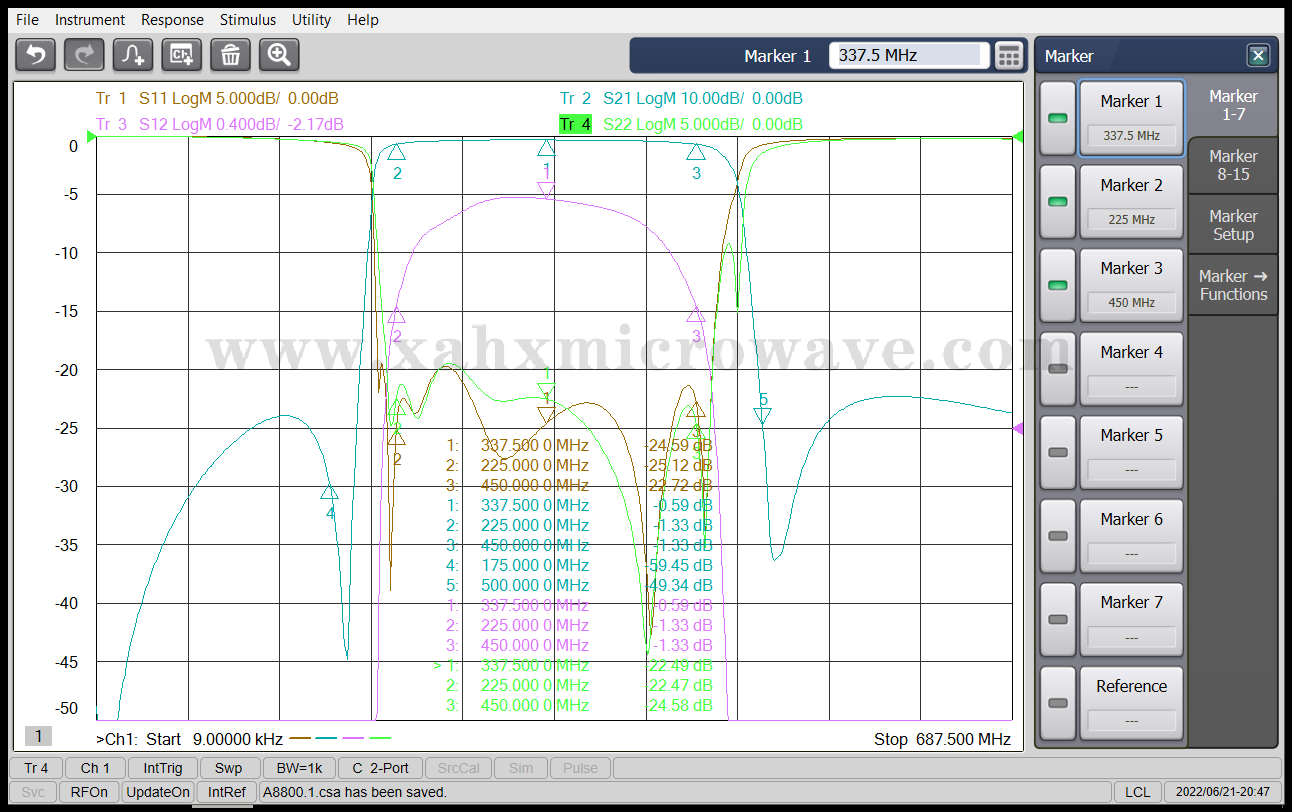

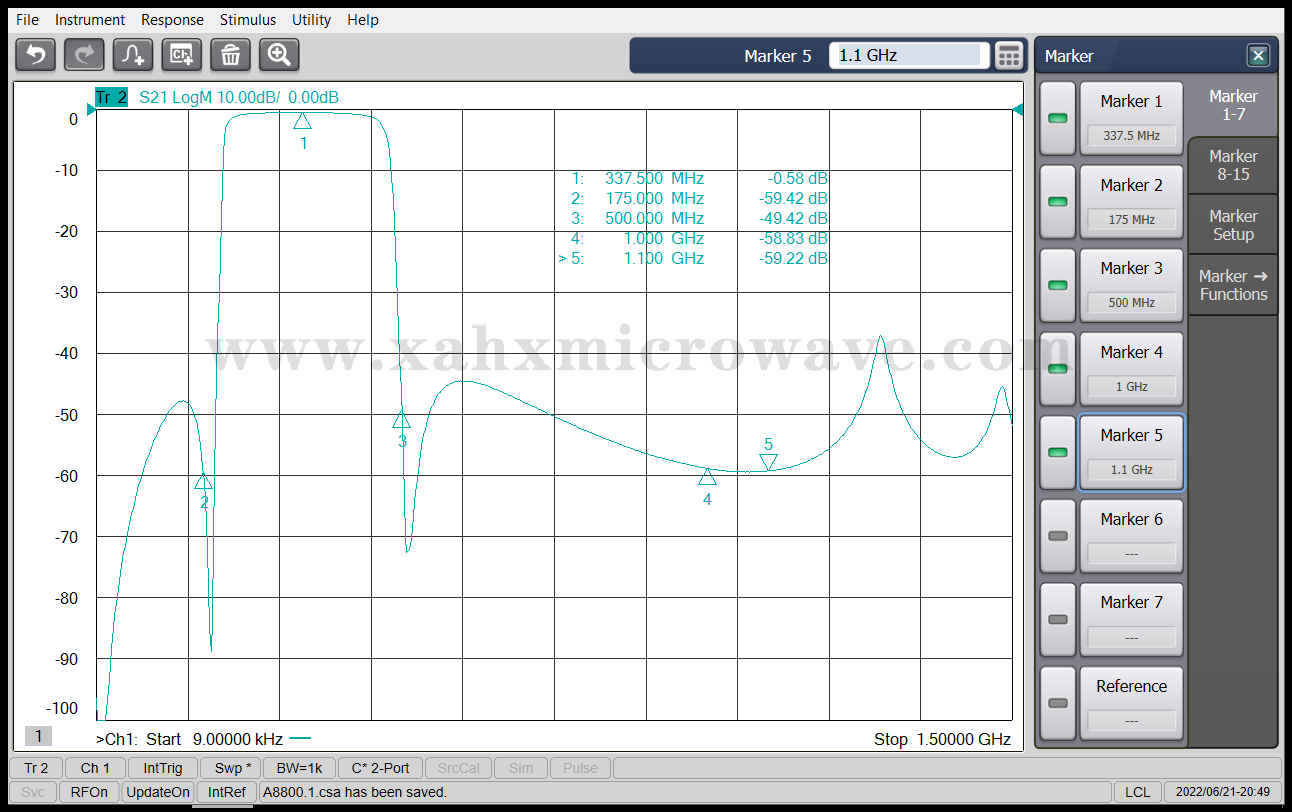

| Test Curve | |||
