S/N

Item

Parameters

1

Center Frequency(F0)

13.85GHz

2

Pass Band Frequency

13.1 ~ 14.6GHz

3

Pass Band Insertion Loss

≤1.7dB

4

Pass Band Ripple

≤0.8dB

5

Pass Band Return Loss

≥20dB

6

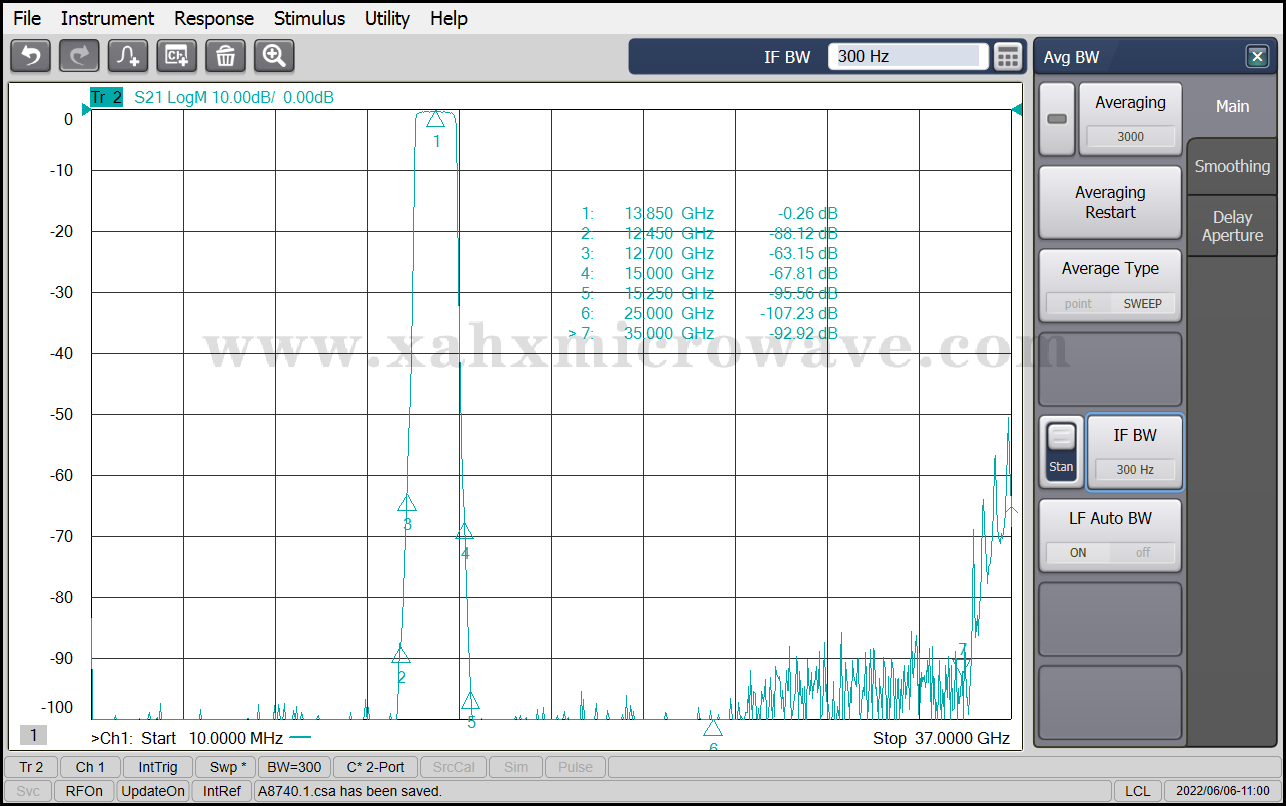

Stop Band Rejection

≥80dB @ DC ~ 12.45GHz

≥50dB @ 12.45 ~ 12.7GHz

≥50dB @ 15 ~ 15.25GHz

≥80dB @ 15.25 ~ 25GHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
