Technical Data Sheet
●	Center Frequency(F0)	12.15GHz
●	Pass Band Frequency	11.4 ~ 12.9GHz
●	Pass Band Insertion Loss	≤1.2dB
●	Pass Band Ripple	≤0.6dB
●	Pass Band Return Loss	≥20dB
●	Stop Band Rejection	≥80dB @ DC ~ 10.75GHz	≥50dB @ 13.3 ~ 13.55GHz
		≥50dB @ 10.75 ~ 11GHz	≥80dB @ 13.55 ~ 23.5GHz
●	Impedance	50 Ohms
●	Power Handling	5.0W Max.
●	Connectors	SMA-Female
●	Surface Finish	Painted Black

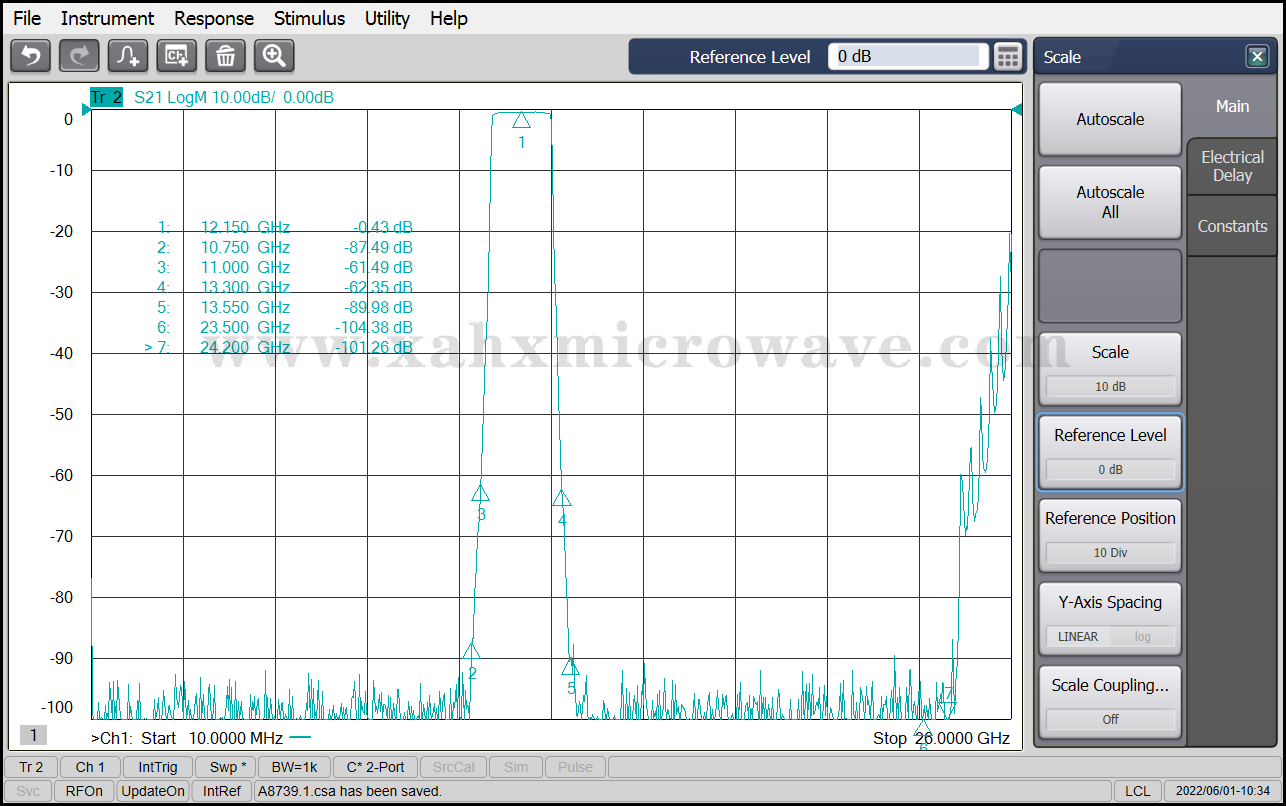

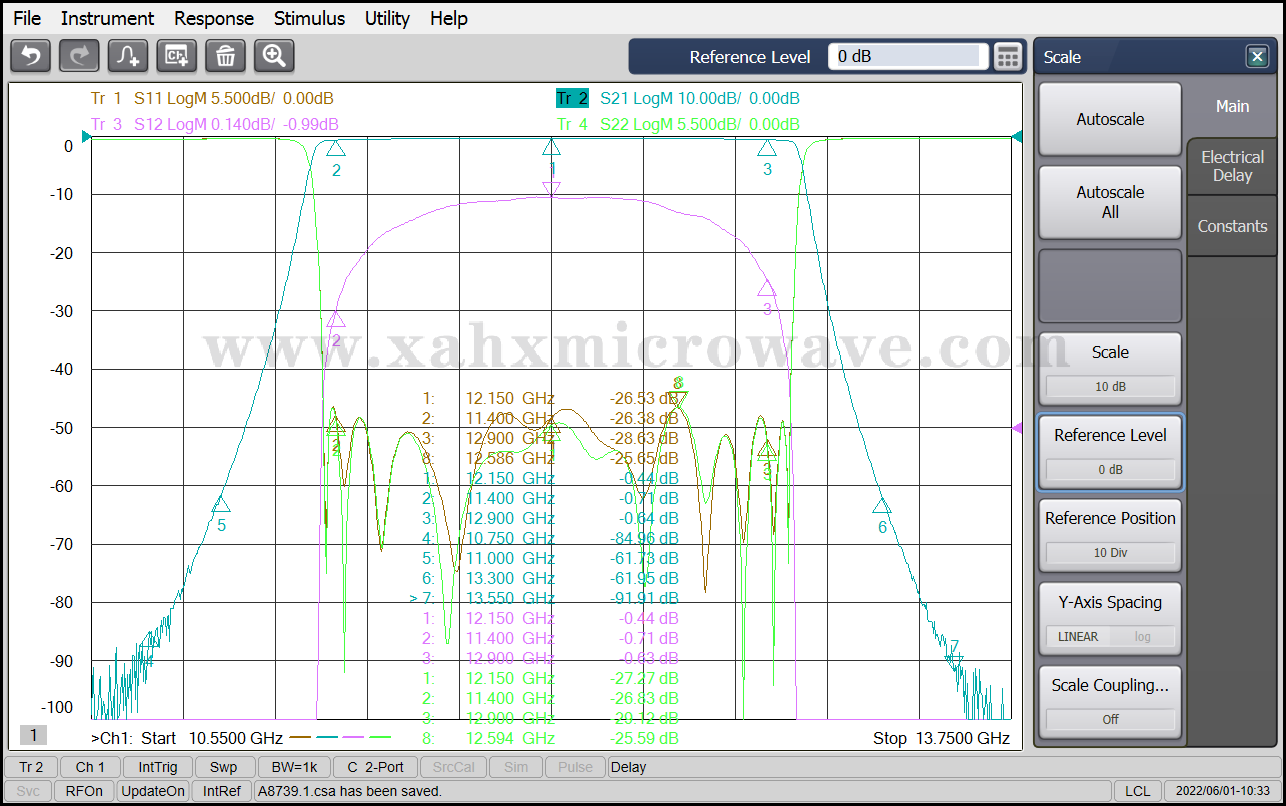

Test Curve
