Band Pass Filter

  • 9.7-11.2GHz Cavity Band Pass Filter

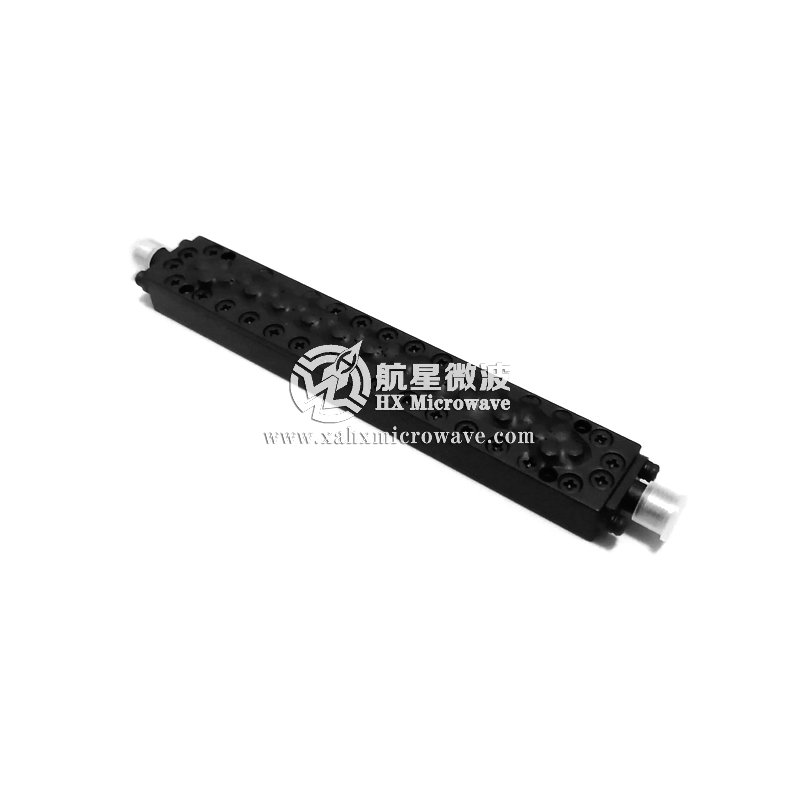

9.7-11.2GHz Cavity Band Pass Filter

9.7-11.2GHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA515
  • Pass Band Frequency:9.7-11.2GHz
  • Stop Band Attenuation:≥50dB
  • Connectors:SMA-Female
  • Product description:
  • PDF technical index download

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

10.45GHz

2

Pass Band Frequency

9.7 ~ 11.2GHz

3

Pass Band Insertion Loss

≤1.2dB

4

Pass Band Ripple

≤0.6dB

5

Pass Band Return Loss

≥20dB

6

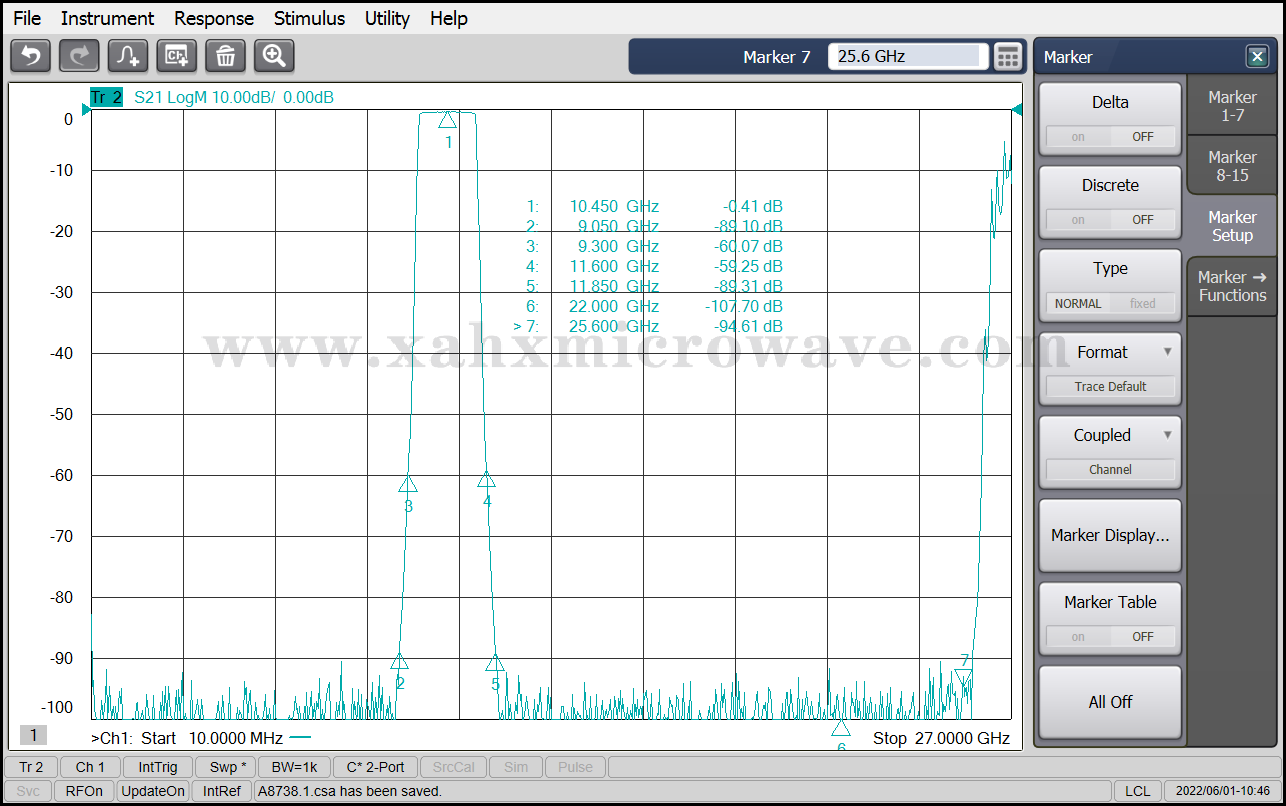

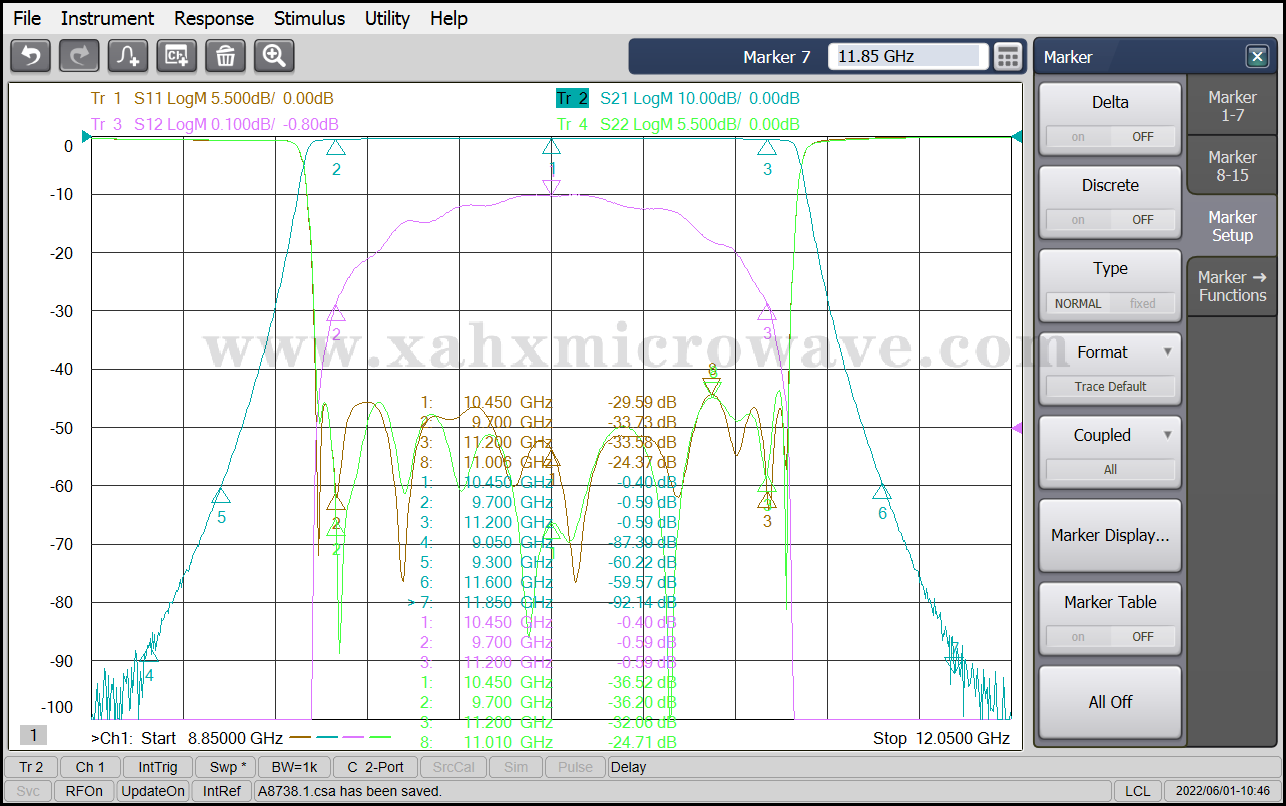

Stop Band Rejection

≥80dB @ DC ~ 9.05GHz

≥50dB @ 9.05 ~ 9.3GHz

≥50dB @ 11.6 ~ 11.85GHz

≥80dB @ 11.85 ~ 22GHz

7

Impedance

50 Ohms

8

Power Handling

5.0W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
