  • 3650-4750MHz Comb Band Pass Filter

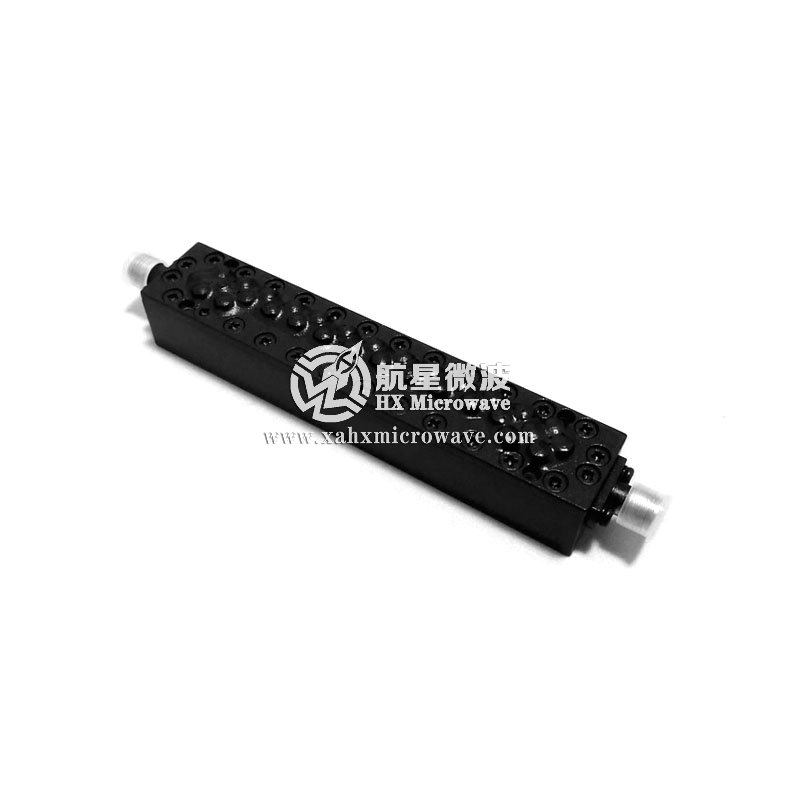

3650-4750MHz Comb Band Pass Filter

3650-4750MHz Comb Band Pass Filter

  • P/N:HXLBQ-DTA346
  • Pass Band Frequency:3650-4750MHz
  • Stop Band Attenuation:≥30dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigit
  • PDF technical index download

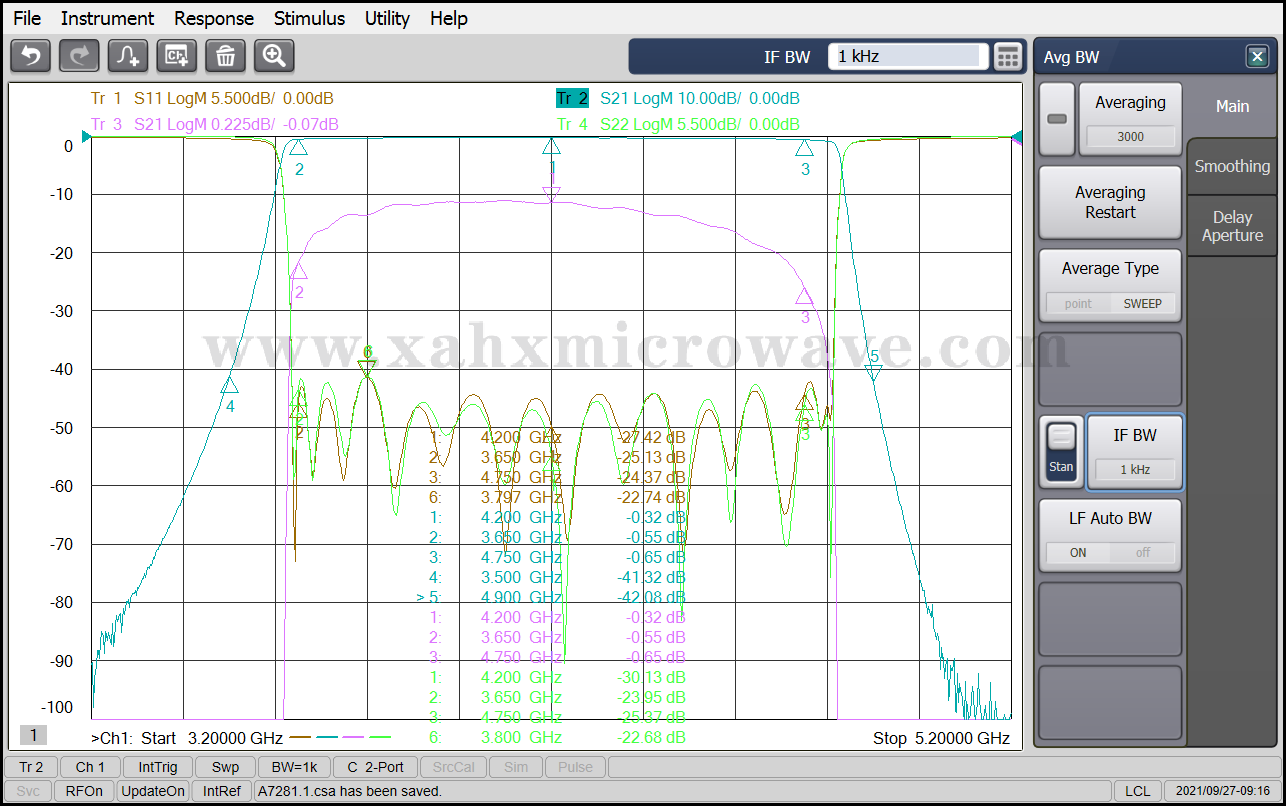

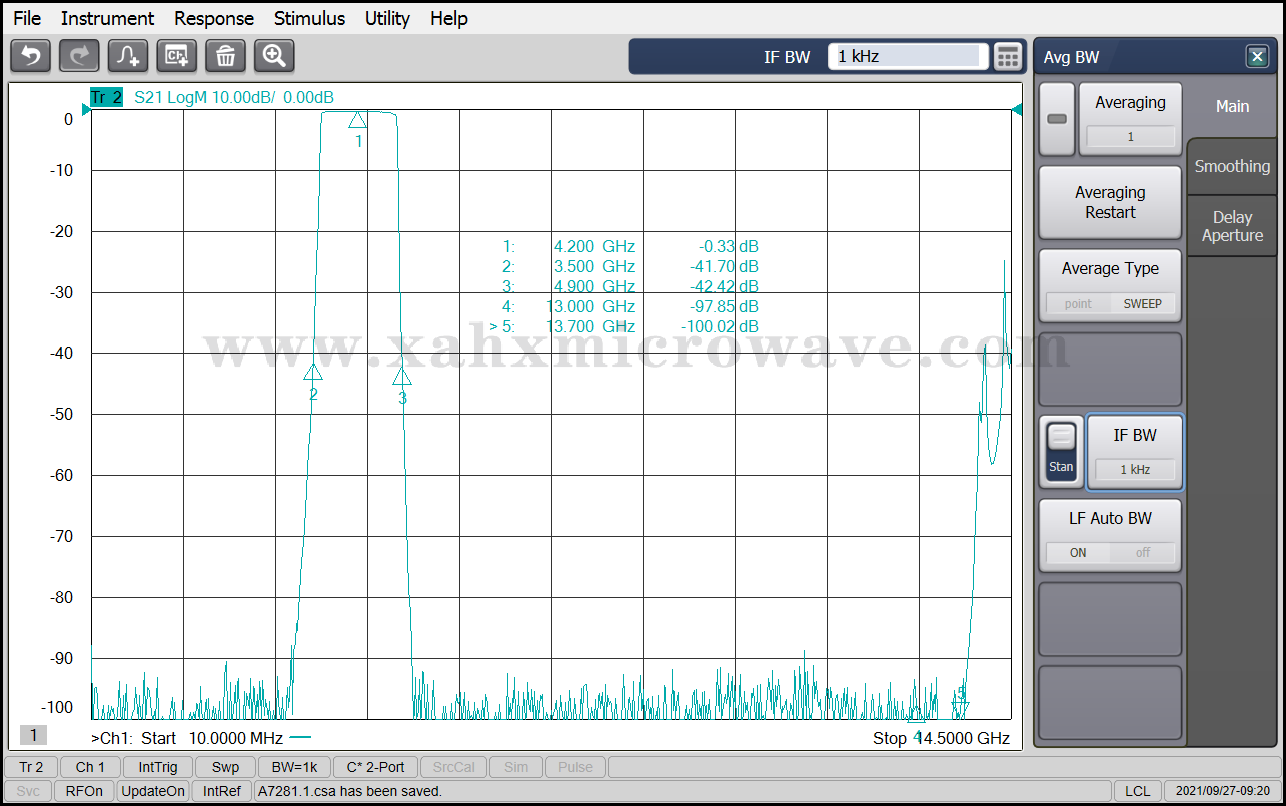

Comb Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

4200MHz

2

Pass Band Frequency

3650 ~ 4750MHz

3

Pass Band Insertion Loss

≤1.3dB

4

Pass Band Ripple

≤0.7dB

5

Pass Band Return Loss

20dB

6

Stop Band Rejection

≥30dB @ DC ~ 3500MHz

≥30dB @ 4900 ~ 13000MHz

7

Impedance

50 Ohms

8

Power Handling

5W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
