Band Pass Filter

  • 5.95-6.05GHz Cavity Band Pass Filter
5.95-6.05GHz Cavity Band Pass Filter

5.95-6.05GHz Cavity Band Pass Filter

  • P/N:HXLBQ-DTA347
  • Pass Band Frequency:5.95-6.05GHz
  • Stop Band Attenuation:≥30dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

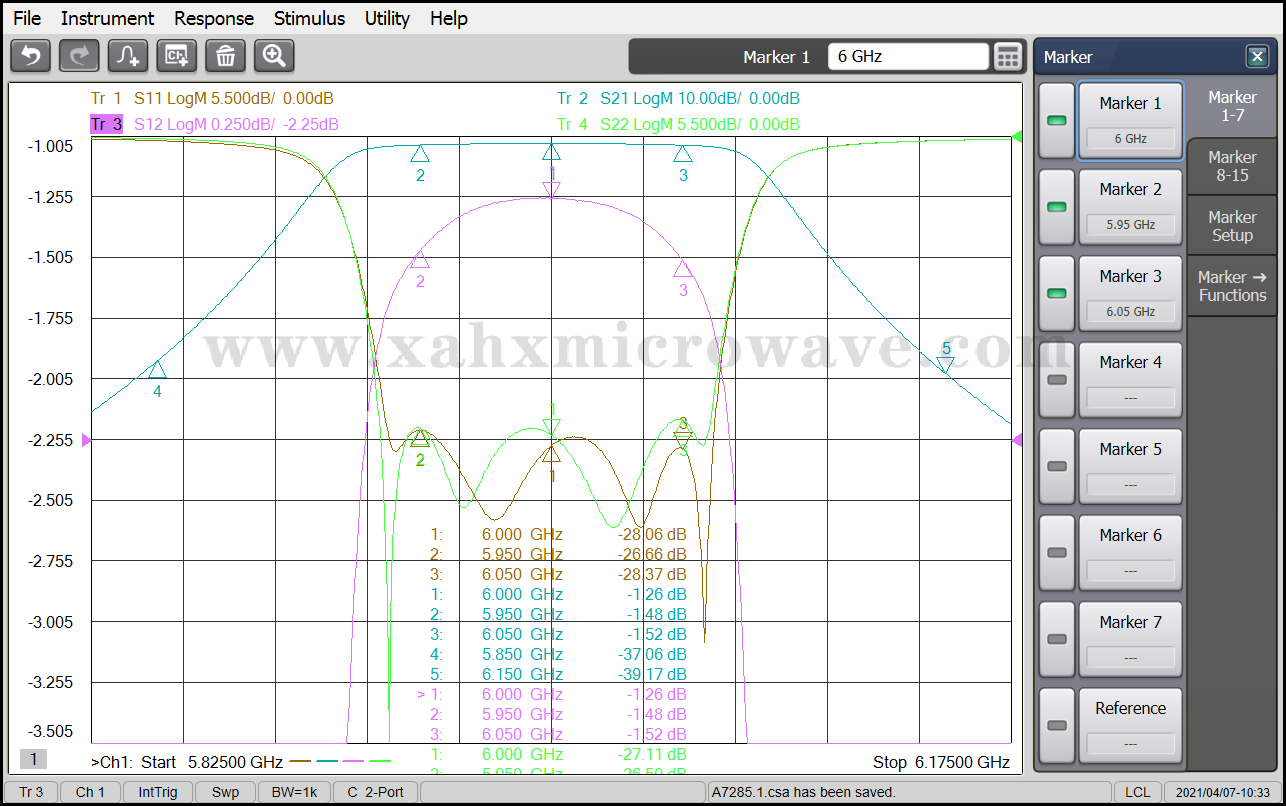

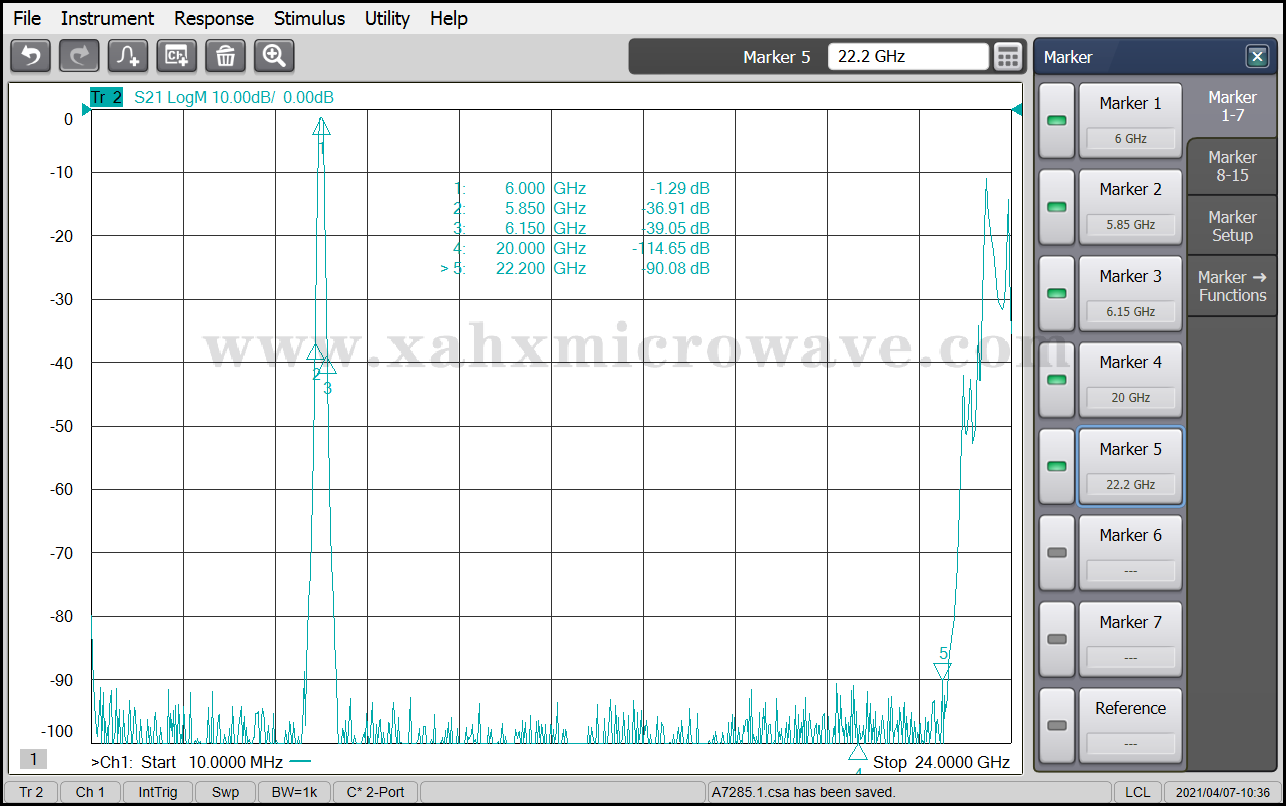

Cavity Band Pass Filter
Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

6.0GHz

2

Pass Band Frequency

5.95 ~ 6.05GHz

3

Pass Band Insertion Loss

≤1.7dB

4

Pass Band Ripple

≤0.3dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Rejection

≥30dB @ DC ~ 5.85GHz

≥30dB @ 6.15 ~ 20GHz

7

Impedance

50 Ohms

8

Power Handling

5W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
