  • 2515-2615MHz Cavity Band Pass Filter
2515-2615MHz Cavity Band Pass Filter

2515-2615MHz Cavity Band Pass Filter

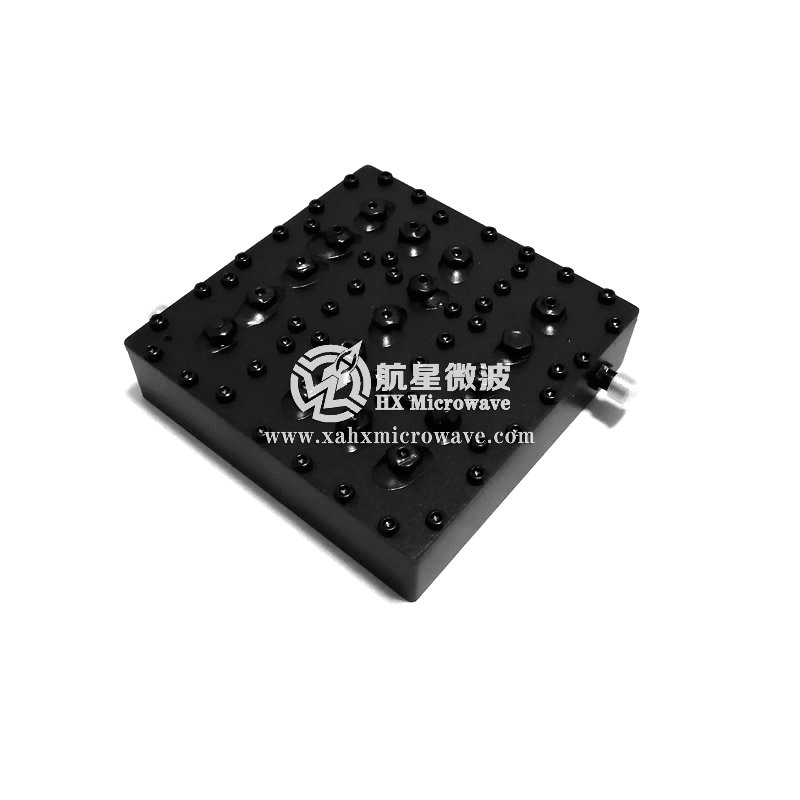

  • P/N:HXLBQ-DTA345
  • Pass Band Frequency:2515-2615MHz
  • Stop Band Attenuation:≥40dB
  • Connectors:SMA-Female
  • Product description: Small size and high cost performance ♦ Low standing wave and low insertion loss ♦Inhibition of high ♦Can according to customer demand customize various frequency 0-70 GHZ Covering frequency range
  • PDF technical index download

Cavity Band Pass Filter

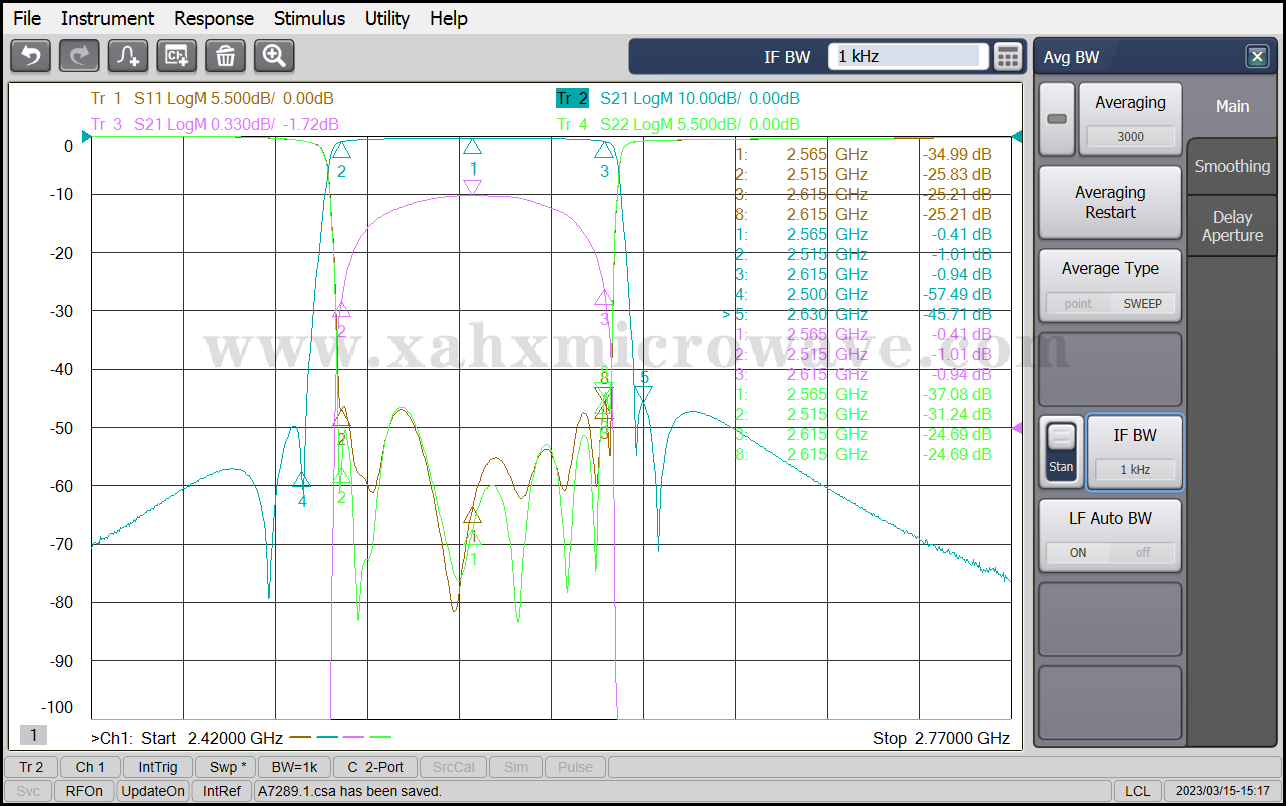

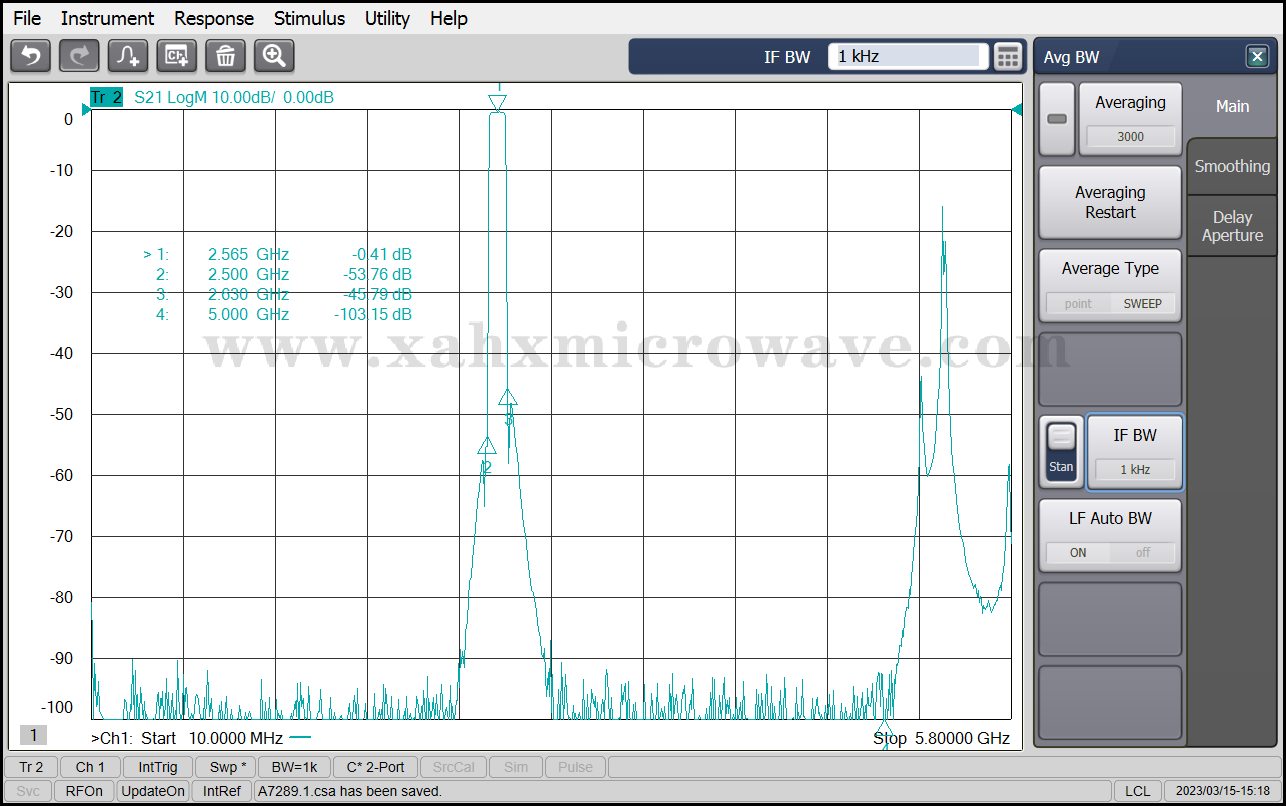

Technical Data Sheet

S/N

Item

Parameters

1

Center Frequency(F0)

2565MHz

2

Pass Band Frequency

2515 ~ 2615MHz

3

Pass Band Insertion Loss

≤1.5dB

4

Pass Band Ripple

≤1.0dB

5

Pass Band Return Loss

≥20dB

6

Stop Band Attenuation

≥40dB @ DC ~ 2500MHz

≥40dB @ 2630 ~ 5000MHz

7

Impedance

50 Ohms

8

Power Handling

30W Max.

9

Connectors

SMA-Female

10

Surface Finish

Painted Black

11

Temperature Range

-30℃ ~ +70℃
