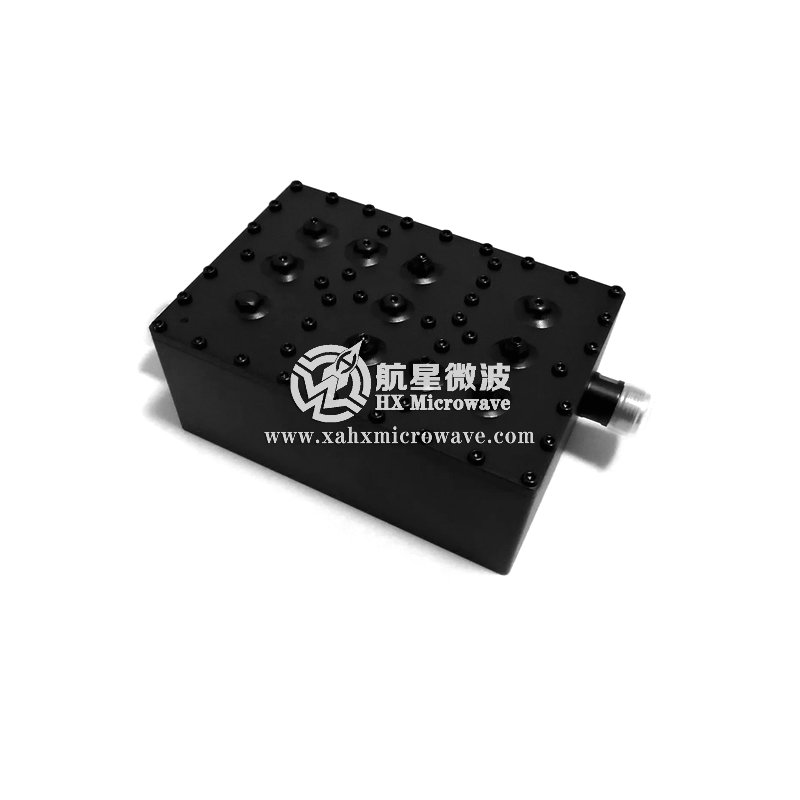

  • 558-566MHz Cavity Band Pass Filter
558-566MHz Cavity Band Pass Filter

558-566MHz Cavity Band Pass Filter

  • P/N：HXLBQ-DTA344
  • Pass Band Frequency：558-566MHz
  • Stop Band Attenuation：≥40dB
  • Connectors：N-Female
  • Product description: mall size and high cost performance_Low standing wave and low insertion loss_Inhibition of high_Ultra Wide Band Filter_Narrow Band Filter_Suspended Stripline Filter_Cavity Filter_LC Filter_Interdigita
  • PDF technical index download
Technical Data Sheet
● Center Frequency(F0) 562MHz
● Pass Band Frequency 558 ~ 566MHz
● Pass Band Insertion Loss ≤1.5dB
● Pass Band Ripple ≤0.5dB
● Pass Band VSWR ≤1.22:1
● Stop Band Rejection ≥40dB @ DC ~ 548MHz ≥40dB @ 576 ~ 1000MHz
● Impedance 50 Ohms
● Power Handling 20W Max.
● Connectors N-Female
● Surface Finish Painted Black
● Temperature Range -30℃ ~ +70℃
Test Curve
